TV SET ACC WALL MOUNT MEDICAL/10-27" FPMA-HAW200 NEOMOUNTS

  • Produkta kods: FPMA-HAW200
  • EAN: 8717371444310
  • Stāvoklis: Jauns
CenaSkaitsPiegāde

1101.49

910.32 € (bez PVN 21%)

1

01.05.

Apraksts

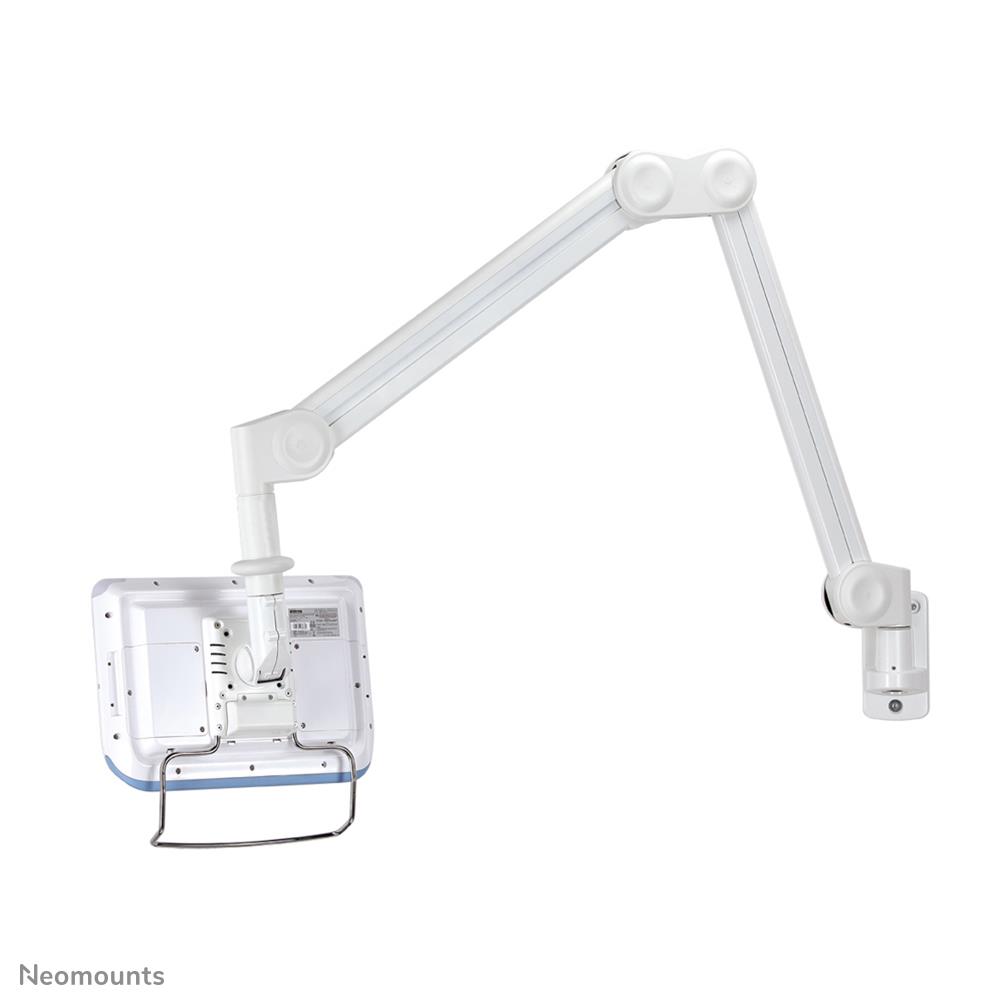

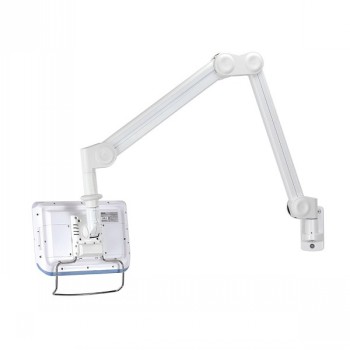

The Neomounts wall mount, model FPMA-HAW200 is a tilt- and swivel wall mount for medical flat screens up to 27". This mount is a great choice for space saving placement or when ceiling mounting and floor placement is not an option.

Neomounts versatile tilt (55°) and swivel (370°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The support is easily height adjustable from 0 to 149 centimetres using a gas spring. Depth adjustable from 0 to 149 centimetres. An innovative cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy.

Neomounts FPMA-HAW200 has two pivot points and is suitable for screens up to 27" (69 cm). The weight capacity of this product is 7 kg each screen. The ceiling mount is suitable for screens that meetVESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.

All installation material is included with the product.

Šim produktam ir 5 mēnešu garantija.

Parametri

SummaryNeomounts FPMA-HAW200 Medical monitor arm wall 10-27" - h 0-149 cm - gas spring. Maximum weight capacity: 7 kg, Minimum screen size: 25.4 cm (10"), Maximum screen size: 68.6 cm (27"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Swivel angle range: 0 - 370°, Tilt angle range: 0 - 55°. Product colour: White
Ražotājs datu lapahttps://www.neomounts.com/default.asp?pageid=44&artdetail=FPMA-HAW200
Vienība kastes augstums0.44
Vienība kastes garums1.14
Vienība kastes platums0.155
Attālums To The sienas Max1490 mm
Attālums To The sienas Min0 mm
Maksimālais ekrāna izmērs27 "
Maksimālais Vesa stiprinājums100 x 100 mm
Maksimālais svars ietilpība7 kg
Maksimālais svars ietilpība uz displejs7 kg
Minimālais ekrāna izmērs10 "
Minimālais Vesa stiprinājums75 x 75 mm
Montāžas veidsWall
Numurs Of displeji atbalstīts1
Paneļa montāžas interfeiss100 x 100/75 x 75 mm
Kabeļu pārvaldībaYes
Dziļums regulēšana diapazons0 - 1490 mm
Glavas atbalsta un plecu jostu pilnkomplektaYes
Augstums regulēšana diapazons0 - 1490 mm
Augstums regulēšana tipsGas spring
RotējošaisYes
Grozāms leņķis370 °
Grozāms leņķis diapazons0 - 370 °
GrozāmsYes
Noliekšana regulēšanaYes
Noliekšana leņķis diapazons0 - 55 °
Korpusa materiālsAluminium
Produkts krāsaWhite
Dziļums1490 mm
Augstums1490 mm
Svars8550 g
Iepakojums dziļums160 mm
Iepakojums augstums430 mm
Iepakojums tīkla svars8550 g
Iepakojums svars8600 g
Iepakojums platums1150 mm
Minimālais svars1 kg
Izcelsmes valstsTaiwan
Harmonizētās sistēmas (HS) kods7616991099
Galvenais (outer) korpuss bruto svars12200 g
Galvenais (outer) korpuss augstums430 mm
Galvenais (outer) korpuss garums160 mm
Galvenais ārējais korpuss tīkla svars8600 g
Galvenais (outer) korpuss platums1150 mm
Produkti uz galvenais (outer) korpuss1 pc(s)
Produkti uz palete (EU)12 pc(s)
Vienības uz palete24
Vienības uz piegāde kastes1
Vienība Calculated skaļums0.07775 cubm
Vienība Calculated svars12.3 kg
