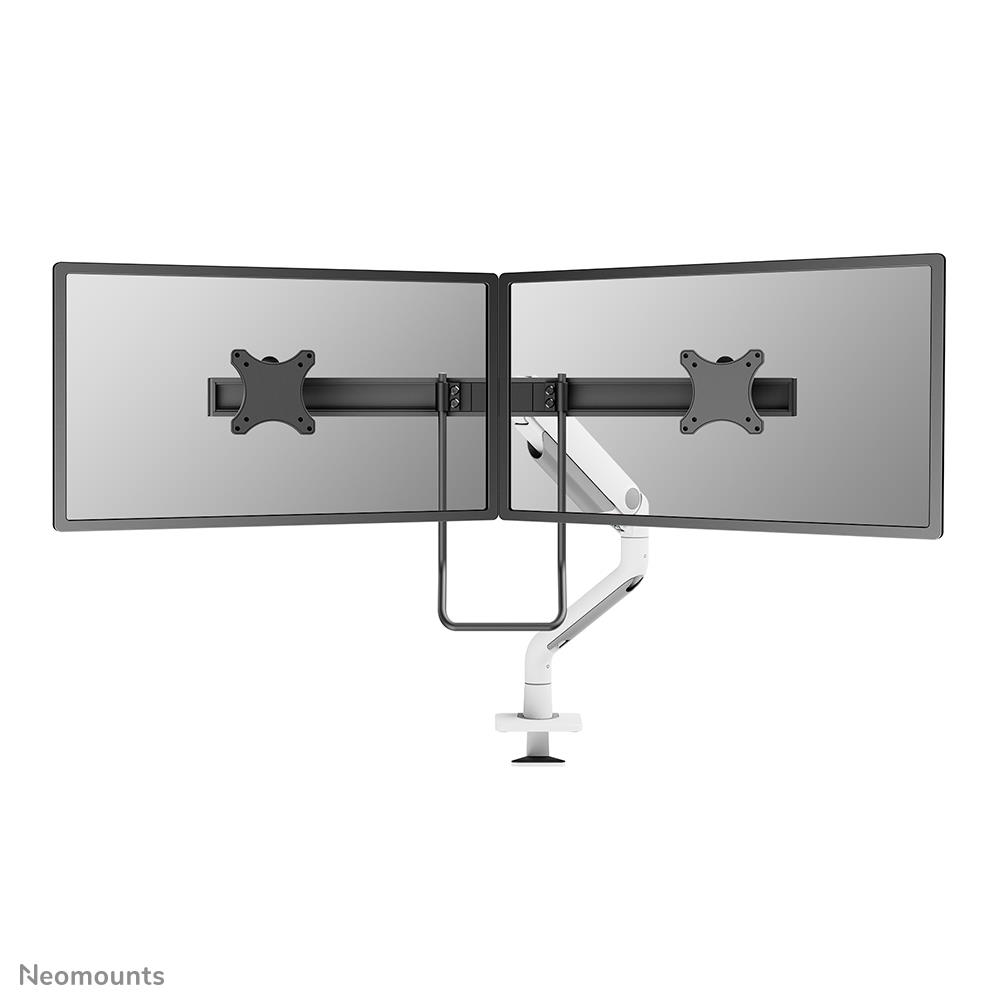

MONITOR ACC DESK MOUNT 17-27''/DUAL DS75S-950WH2 NEOMOUNTS

  • Produkta kods: DS75S-950WH2
  • EAN: 8717371441586
  • Stāvoklis: Jauns
CenaSkaitsPiegāde

382.90

316.45 € (bez PVN 21%)

9

01.05.

Apraksts

The Neomounts DS75S-950WH2 NEXT One is a full motion desk mount for two screens up to 32" with a maximum weight capacity of 8 kg per screen. The versatile tilt (120°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the screen. Additionally, the mount has gas spring height adjustment (19,1-52,7 cm) and depth adjustment (17,3-71 cm), to create the perfect working position. The displays can be individually adjusted in height, to guarantee perfect screen alignment. Additionally, due to the flexibility of the VESA heads, the screens can be positioned in large cockpit setup. The handle is height adjustable for maximum comfort.

The DS75S-950WH2 features the nifty 180° stop mechanism, that allows you to safely adjust the mount even when it\'s placed close to a wall or separation panel without making contact with the wall. The smart cable management system ensures orderly routing of the cables.

The black VESA plates and crossbar of the NEXT One integrate stylishly with the black back of your screens. The DS75S-950WH2 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm. For non-standard hole patterns, Neomounts has various optional VESA adapter plates available. The monitor arm is equipped with a Quick-release VESA system and comes with both a topfix clamp and grommet for quick and easy installation.

The packaging of the DS75S-950WH2 desk mount is 100% plastic free and entirely made from cardboard and paper. The NEXT One products have an extended warranty period of 10-years.

Šim produktam ir 5 mēnešu garantija.

Parametri

SummaryNeomounts DS75S-950WH2 Monitor arm 17-32" - gas spring - Topfix - 180°-stop. Mounting: Clamp/Grommet, Maximum weight capacity: 8 kg, Minimum screen size: 43.2 cm (17"), Maximum screen size: 81.3 cm (32"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Swivel angle range: -90 - 90°, Tilt angle range: -60 - 60°. Product colour: White
Ražotājs datu lapahttps://www.neomounts.com/default.asp?pageid=44&artdetail=DS75S-950WH2
Vienība kastes augstums0.12
Vienība kastes garums0.895
Vienība kastes platums0.225
product_attr.CLAMP_MOUNT_DESK_THICKNESS_MAX50 mm
Galda biezums Max55 mm
Galda biezums Min10 mm
Attālums To The sienas Max741 mm
Attālums To The sienas Min204 mm
product_attr.GROMMET_MOUNT_DESK_THICKNESS_MAX55 mm
Maksimālais ekrāna izmērs32 "
Maksimālais Vesa stiprinājums100 x 100 mm
Maksimālais svars ietilpība8 kg
Maksimālais svars ietilpība uz displejs8 kg
Minimālais ekrāna izmērs17 "
Minimālais Vesa stiprinājums75 x 75 mm
MontāžaClamp/Grommet
Montāžas veidsDesk
Numurs Of displeji atbalstīts2
Paneļa montāžas interfeiss100 x 100/75 x 75 mm
Regulējams dziļumsYes
rotācijas leņķis360 °
Kabeļu pārvaldībaYes
Dziļums regulēšana diapazons173 - 710 mm
Glavas atbalsta un plecu jostu pilnkomplektaYes
Augstums regulēšana diapazons191 - 527 mm
Augstums regulēšana tipsGas spring
Šarnīra leņķis-180 - 180 °
RotējošaisYes
Grozāms leņķis diapazons-90 - 90 °
GrozāmsYes
Noliekšana regulēšanaYes
Noliekšana leņķis diapazons-60 - 60 °
product_attr.WIDTH_ADJUSTMENT1074 mm
Viegla To uzstādīšanaYes
Korpusa materiālsAluminium
Produkts krāsaWhite
Dziļums739 mm
Augstums1085 mm
Svars5760 g
Platums833 mm
Iepakojums dziļums120 mm
Iepakojums augstums887 mm
Iepakojums tīkla svars7100 g
Iepakojums svars7100 g
Iepakojums platums222 mm
Minimālais svars1 kg
Garantija period10 year(s)
Platums regulēšana diapazons0 - 1074 mm
Izcelsmes valstsChina
Harmonizētās sistēmas (HS) kods7616991099
Galvenais (outer) korpuss bruto svars15000 g
Galvenais (outer) korpuss augstums905 mm
Galvenais (outer) korpuss garums260 mm
Galvenais ārējais korpuss tīkla svars11600 g
Galvenais (outer) korpuss platums240 mm
Produkti uz galvenais (outer) korpuss2 pc(s)
Produkti uz palete (EU)36 pc(s)
ModelisDS75S-950WH2
Vienības uz piegāde kastes2
Vienība Calculated skaļums0.028236 cubm
Vienība Calculated svars7.4 kg
