MONITOR ACC DESK MOUNT 17-32"/DS75-450BL2 NEOMOUNTS

  • Produkta kods: DS75-450BL2
  • EAN: 8717371449476
  • Stāvoklis: Jauns
CenaSkaitsPiegāde

246.08

203.37 € (bez PVN 21%)

2

23.04.

246.22

203.49 € (bez PVN 21%)

15

30.04.

Apraksts

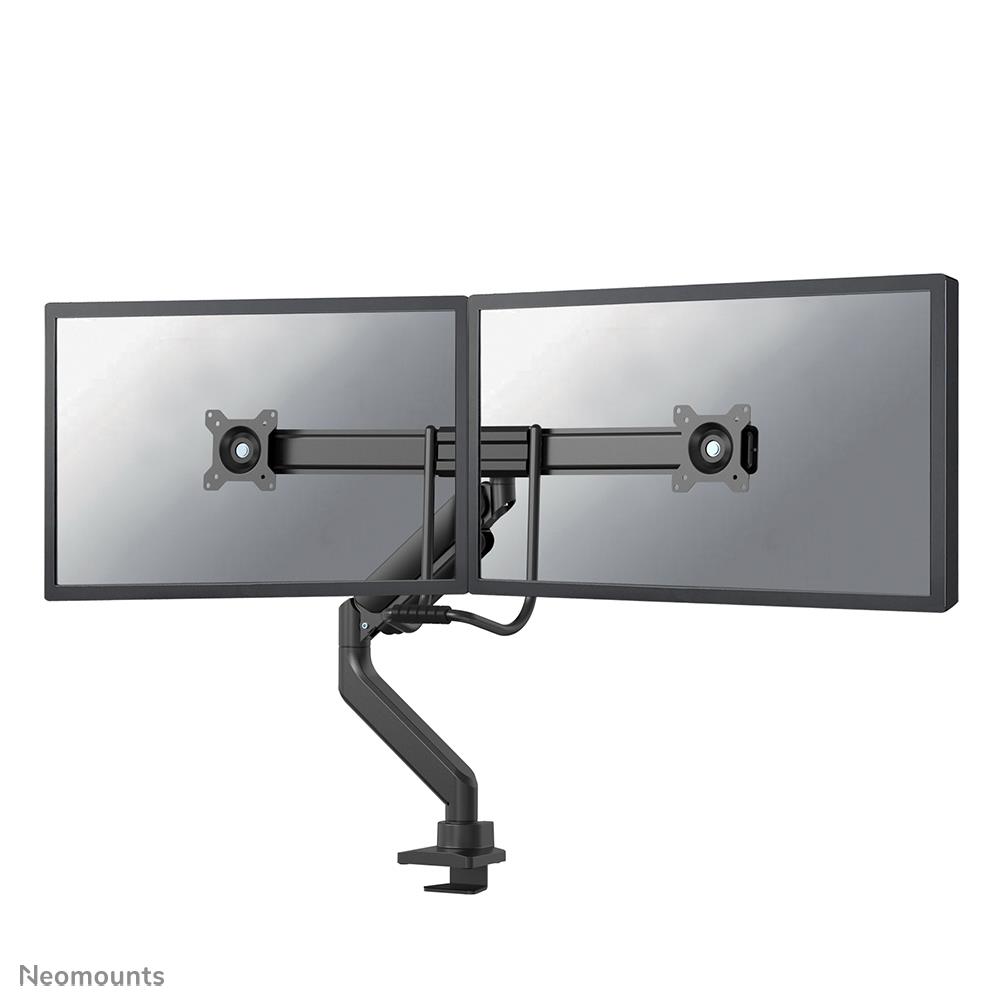

The Neomounts DS75-450BL2 NEXT Core is a full motion desk mount for two flat screens up to 32" with a maximum weight capacity of 8 kg per screen. The versatile tilt (20°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the screens. Additionally, the mount has gas spring height adjustment (29,1-56 cm) and depth adjustment (14,3-55,3 cm), to create the perfect working position.

The DS75-450BL2 NEXT Core features the nifty 180° stop mechanism, that allows you to safely adjust the mount even when it\'s placed close to a wall or separation panel without making contact with the wall. The smart cable management system ensures orderly routing of the cables.

The DS75-450BL2 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm. Unused hole patterns can be covered using one of Neomounts VESA adapter plates. The desk mount is equipped with an Quick-release VESA system and comes with both a topfix clamp and grommet for quick and easy installation.

The inner packaging of the NEXT Core is plastic free and made from cardboard and paper.

For wall installation, the AWL75-450WH wall adapter is optionally available.

Šim produktam ir 5 mēnešu garantija.

Parametri

SummaryNeomounts DS75-450BL2 Monitor arm 17-32" - gas spring - Topfix - 180°-stop. Mounting: Clamp/Grommet, Maximum weight capacity: 8 kg, Minimum screen size: 43.2 cm (17"), Maximum screen size: 81.3 cm (32"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Swivel angle range: -90 - 90°, Tilt angle range: -10 - 10°. Product colour: Black
Ražotājs datu lapahttps://www.neomounts.com/default.asp?pageid=44&artdetail=DS75-450BL2
Vienība kastes augstums0.325
Vienība kastes garums0.45
Vienība kastes platums0.155
Galda biezums Max45 mm
Galda biezums Min10 mm
Maksimālais ekrāna izmērs32 "
Maksimālais Vesa stiprinājums100 x 100 mm
Maksimālais svars ietilpība8 kg
Maksimālais svars ietilpība uz displejs8 kg
Minimālais ekrāna izmērs17 "
Minimālais Vesa stiprinājums75 x 75 mm
MontāžaClamp/Grommet
Montāžas veidsDesk
Numurs Of displeji atbalstīts2
Paneļa montāžas interfeiss100 x 100/75 x 75 mm
Regulējams dziļumsYes
rotācijas leņķis360 °
Kabeļu pārvaldībaYes
Dziļums regulēšana diapazons143 - 553 mm
Glavas atbalsta un plecu jostu pilnkomplektaYes
Augstums regulēšana diapazons291 - 560 mm
Augstums regulēšana tipsGas spring
Šarnīra leņķis-180 - 180 °
RotējošaisYes
Grozāms leņķis20 °
Grozāms leņķis diapazons-90 - 90 °
GrozāmsYes
Noliekšana regulēšanaYes
Noliekšana leņķis diapazons-10 - 10 °
product_attr.WIDTH_ADJUSTMENT990 mm
Korpusa materiālsSteel
Produkts krāsaBlack
Dziļums115 mm
Augstums646 mm
Svars6400 g
Platums761 mm
Iepakojums dziļums152 mm
Iepakojums augstums445 mm
Iepakojums tīkla svars7900 g
Iepakojums svars7900 g
Iepakojums platums320 mm
Montāžas komplektsYes
Minimālais svars1 kg
Garantija period5 year(s)
Platums regulēšana diapazons0 - 990 mm
Izcelsmes valstsChina
Harmonizētās sistēmas (HS) kods7326909890
Galvenais (outer) korpuss bruto svars15900 g
Galvenais (outer) korpuss augstums460 mm
Galvenais (outer) korpuss garums325 mm
Galvenais ārējais korpuss tīkla svars14300 g
Galvenais (outer) korpuss platums335 mm
Produkti uz galvenais (outer) korpuss2 pc(s)
Produkti uz palete (EU)40 pc(s)
ModelisDS75-450BL2
Vienības uz piegāde kastes1
Vienība Calculated skaļums0.02267 cubm
Vienība Calculated svars7.55 kg
