Access Control Systems

BRACKED D is a holder for mounting selected SLIM LINE motion detectors as well as APD-200 and APMD-250 models. The detector lead-in cable can be run through the inside of the holder to make the system safer and more aesthetically pleasing.

Kods: BRACKETD

Access Control Systems

Cable for connection of RS Ports of INTEGRA panels equipped with RJ connector and modules equipped with PIN-5 connector (MDM56 BO modems, GSM, ISDN, ETHM-1 modules).

Kods: RJ/PIN5

Access Control Systems

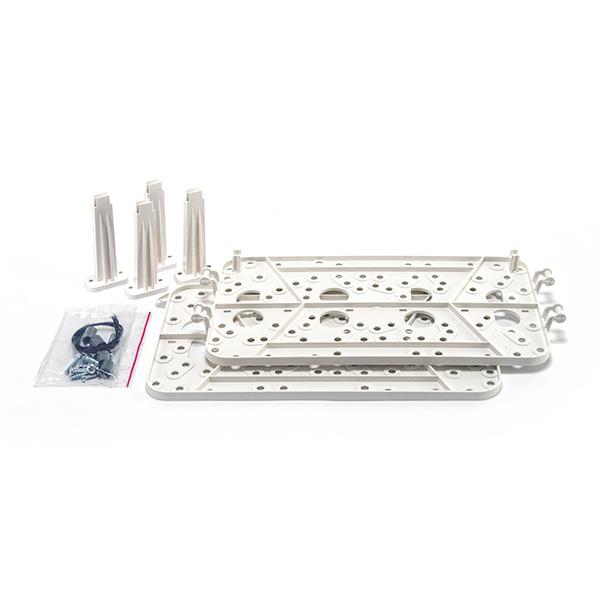

OMI-5 PI is a set of plastic inserts and supports to facilitate installation of control panels, expansion modules, communication modules etc. in the OMI-5 metal enclosures. can be used in OMI-5 enclosure enables installation of SATEL devices: alarm control panels expansion modules GSM communication modules ACCO door controllers with or without power supply ACCO-NT access control panels

Kods: OMI-5PI

Access Control Systems

Enclousure tamper protection dimensions: 126 x 158 x 32 mm compatibility: INTEGRA expansion modules, CA-10 E expansion module, MP-1 relay module, ACCO-KP controller, ACU-100 controller and ACX-200 module

Kods: OPU-1A

Access Control Systems

double tamper protection; 2 tampers included possibility to install wireless devices with antennas inside space for 40 VA or 60 VA AC/AC power supply surface mounting compatibility: INTEGRA 24/32/128-WRL; VERSA 5/10/15 expansion modules manufactured by SATEL GSM communication modules manufactured by SATEL

Kods: OPU-4P

Access Control Systems

* double tamper protection * possibility to install wireless devices with antennas inside * dimensions: 322 x 342 x 100 mm * space for 40 VA or 60 VA AC/AC power supply * flush mounting * compatibility: * alarm control panels manufactured by SATEL * expansion modules manufactured by SATEL * GSM communication modules manufactured by SATEL

Kods: OPU-4PW

Access Control Systems

The USB-RS converter makes it possible to connect to the computer SATEL devices provided with RS-232 or RS-232 (TTL) port. It also allows to program SATEL radio controllers.

Kods: USB-RS

Access Control Systems

EN 50131 Grade 3 compliant tamper protection against opening and removing from mounting surface; 2 tampers included removable plates simplifying system installation and maintenance possibility to install wireless devices with antennas inside space for 40 VA or 60 VA AC/AC power supply space for 12 V 17 Ah sealed lead acid battery compatibility: INTEGRA 24/32/64/128/128-WRL expansion modules manufactured by SATEL GSM communication modules manufactured by SATEL

Kods: OPU-3P

Access Control Systems

EN50131 Grade 3 approved robust metal enclosure double tamper protection compatibility: INTEGRA control panel, INTEGRA expansion modules

Kods: OMI-3

Access Control Systems

OMI-5 is a robust surface-mounted metal enclosure, designed for installation of SATEL control panels, modules and expanders in various configurations. The enclosure meets the requirements specified in EN 50131 for Grade 3. It is provided with double tamper protection: against opening cover and removing enclosure from the wall. The enclosure has space for 17 Ah battery. The integrated DIN rail allows quick installation of e.g. APS-612 and APS-412 power supplies. You can also use the accessory OMI-5 DIN rails and the OMI PI-5 set of plastic inserts and supports, which further simplifies mounting of control panels and modules. complies with requirements of EN 50131 Grade 3 double tamper protection dimensions: 328 x 406 x 120 mm you can mount APS-612 or APS-412 power supply inside (DIN rail) can accommodate 17 Ah battery optionally, you can use: additional DIN rail (OMI-5 DIN) for mounting INT-ORS and INT-IORS expanders a set of plastic mounting inserts and supports (OMI-5 PI) for SATEL devices: alarm panels expansion modules GSM communication modules ACCO door controllers with or without power supply ACCO-NT access control panels

Kods: OMI-5

Access Control Systems

The OMI-4 case is designed for EN50131 Grade 3-compliant systems based on the INTEGRA Plus control panels. They are equipped with a mechanism for sabotage detection – opening of the case and detaching it from the floor, as well as a strengthened AC/AC 75VA power supply. The case provides room for control panel PCBs, expansion modules and a 17Ah battery.EN50131 Grade 3 approvedrobust metal enclosuredouble tamper protectioncompatibility: INTEGRA Plus control panels

Kods: OMI-4

Access Control Systems

Integrated Mount Tester > Supports the following 3 methods for power output: 12 VDC, USB 5 V and PoE. > Features live video, image adjustment and camera function testing. > Offers effortless control of cameras through the DoLynk Care mobile app. > Provides a hotspot for mobile phones to easily connect to. > Compact and lightweight, it is easy to carry.

Kods: PFM2900
