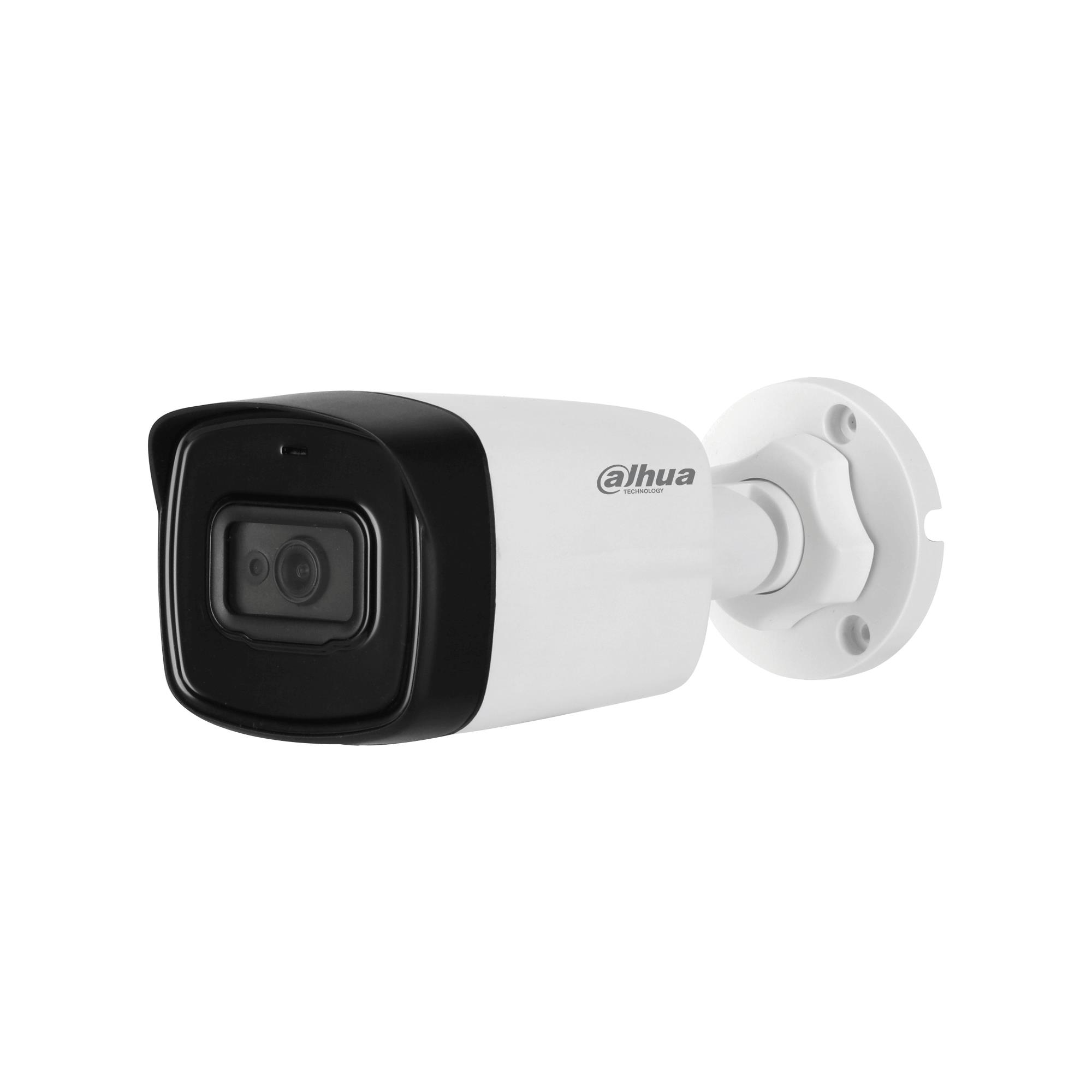

HDCVI Cameras

Experience 4K video surveillance with the simplicity of reusing existing coaxial infrastructure. The 4K HDCVI camera adopts a powerful Dahua ISP and advanced 1/2.7" CMOS sensor, which provides superior high quality images. In addition, the camera features broadcastquality audio to provide enhanced supplementary evidence collection. Ultra-high definition and a complete set of features makes the 4K HDCVI camera an ideal choice for mid to large-size businesses and projects where bothhighly reliable surveillance and construction flexibility are demanded. Max. 4K resolution, real-time video transmissionCVI/CVBS/AHD/TVI switchableBuilt-in mic (-A)Fixed lens (2.8mm; 3.6mm;6mm optional)Max. IR length 80m, Smart IRIP67, 12V±30%DC

Kods: HAC-HFW1800TL-A-0360B

HDCVI Cameras

Experience 5MP full HD video and the simplicity of using existing cablinginfrastructure with HDCVI. The Lite series 5MP HDCVI camera featuresa compact design and offers a high quality image at a friendly price. Itoffers various motorized/fixed lens models with a multi-language OSDand HD/SD switchable output. Its structural flexibility and high cost-performance make the camera an ideal choice for SMB solutions.4 Signals over 1 Coaxial CableHDCVI technology supports 4 signals to be transmitted over 1 coaxialcable simultaneously, i.e. video, audio, data and power. Dual-way datatransmission allows the HDCVI camera to interact with the XVR, such assending control signal or triggering alarm. Moreover, HDCVI technologysupports PoC for construction flexibility.Long Distance TransmissionHDCVI technology guarantees real-time transmission at long distancewithout any loss. It supports up to 700 m for 5MP HD video throughcoaxial cable, and up to 300 m through UTP cable.SimplicityHDCVI technology inherits the born feature of simplicity from traditionalanalog surveillance system, making itself a best choice for investmentprotection. HDCVI system can seamlessly upgrade the traditional analogsystem without replacing existing coaxial cabling. The plug and playapproach enables full HD video surveillance without the hassle of configuring a network. Smart IRThe camera is designed with IR LED illumination for best lowlight performance. Smart IR is a technology to ensure brightness uniformity in B/Wimage under low illumination. Dahua\'s unique Smart IR adjusts to theintensity of camera\'s infrared LEDs to compensate for the distance ofan object, and prevents IR LEDs from overexposing images as the objectcomes closer to the camera.Multi-formatsThe camera supports multiple video formats including HDCVI, CVBS andother two common HD analog formats in the market. The four formatscan be switched over through OSD menu. This feature makes the camera compatible with most end users\' existing HD/SD DVRs.Multi-language OSDOSD menu provides multiple image adjustments and function settingsto meet the requirements of different monitoring scenes. The OSDmenu includes configurations such as backlight mode, day/night, whitebalance, privacy mask and motion detect. The camera supports 11languages for OSD menu, namely, Chinese, English, French, German,Spanish, Portuguese, Italian, Japanese, Korean, Russian and Polish.ProtectionThe camera\'s outstanding reliability is unsurpassed due to its rugged design. The camera is protected against water and dust with IP67 ranking,making it suitable for indoor or outdoor environments.With working temperature range of –40 °C to +60 °C (–40 °F to +140 °F),the camera is designed for extreme temperature environments.Supporting ±30% input voltage tolerance, this camera suits even themost unstable power supply conditions. Its 4kV lightning rating providesprotection against the camera and its structure from the effects oflightning.The parameters and datasheets below can only be applied to 1500-S2 seriesIn order to use the 5MP 16:9 HDCVI camera, the firmware of XVR must be upgraded to V4.001.0000001.0.R.200908 or later versionMax 25 fps@5MP (16:9 video output)CVI/CVBS/AHD/TVI switchable3.6 mm fixed lens (2.8 mm optional)Max. IR length 30 m, Smart IR

Kods: HAC-HDBW1500E-0280B-S2

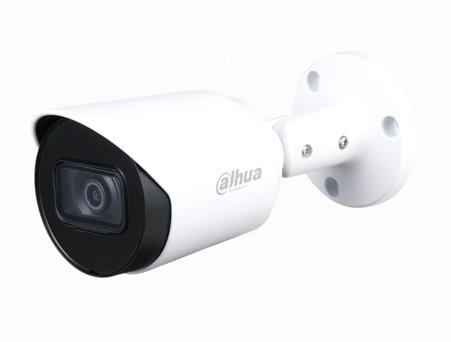

HDCVI Cameras

Minimum Illumination: 0.03Lux/F2.0, 30IRE, 0Lux IR on IR Distance: up to 30m 2.8 mm lens, angle of view: 105° 1-channel BNC high definition video output / Video output choices of CVI/TVI/AHD/CVBS by one BNC port Built-in MIC True Day / Night with ICR Filter, BLC / HLC / DWDR / DNR / Defog Bullet design (metal), IP67, outdoor/indoor use, -40°C~+60°C Power 12 VDC, 4.3W max

Kods: DH-HAC-HFW1800T-A-0280B

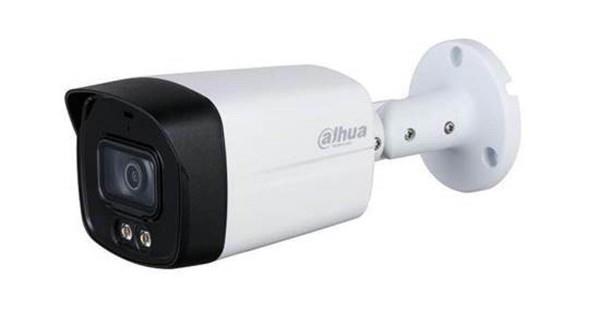

HDCVI Cameras

Lite Series is suitable for users who requires high quality monitoring products at a reasonable price. It is cost effective and offers high performance, which makes it an ideal choice for residential and small-medium business applications. This series offers an option of a wide range of technologies such as Full-color and Starlight, providing various solutions for different scenarios. 5Megapixel progressive scan CMOS, 2880 × 1620 @25FPS Minimum illumination: 0.001 Lux/F1.0, 0 Lux warm light on Video output choices of CVI/TVI/AHD/CVBS by one BNC port BLC/HLC/True WDR 120 dB/HLC-Pro 3.6 mm fixed lens (88° HFOV) Up to 40 meters white LED Illumination. 2 white LED Built-in mic, audio over coax technology Bullet design, combined shell, IP67, -40°C~+60°C Power 12VDC ±30%, 6.4W max

Kods: HFW1509TLM-A-LED-0360B-S2

HDCVI Cameras

5MP Smart Dual Illuminators Bullet Camera > Max 25 fps@5MP (16:9 video output). > 120 dB true WDR, 3D NR. > Smart Dual Illuminators. > 40 m illumination distance. > Super Adapt. > Built-in MIC. > 3.6 mm fixed lens (89°). > CVI/CVBS/AHD/TVI switchable. > IP67, 12 VDC.

Kods: HFW1509TLM-IL-A-0360B-S2

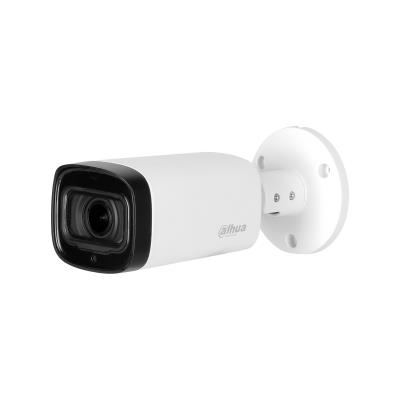

HDCVI Cameras

Lite Series is suitable for users who requires high quality monitoring products at areasonable price. It is cost effective and offers high performance, which makes it an ideal choice for residential and small-medium business applications. This series offers an option of a wide range of technologies such as Full-color and Starlight, providing various solutions for different scenarios.StarlightWith the adoption of large sized high performance sensor and large aperture lens, the camera is able to provide incomparable performance even under extreme lowlight environment. The starlight feature allows more details to be captured and accurate color to be recognized at night or in scenes with limited illumination.Broadcast-quality AudioAudio information is used as supplementary evidence in video surveillance applications. The HDCVI camera supports audio signal transmission over coaxial cable. In addition, it adopts unique audio processing and transmission technology that best restores source audio and eliminates noise, guaranteeing the quality and effectiveness of collected audio information.* Audio input is available for some models of HDCVI cameras.Wide Dynamic RangeWith advanced Wide Dynamic Range (WDR) technology, Dahua HDCVI camera provides clear details in the environment of strong brightness contrast. The bright and dark area can get clear video even in high brightness environment or with backlight shadow.Super AdaptEmbedded with intelligent algorithm, for changing external environment, camera can automatically adjust parameters to present the optimal image, and it solves the trouble of configuration.Advanced 3D NR3D NR is noise reduction technology that detects and eliminates random noises by comparing two sequential frames. Dahua\'s advanced 3D NR technology allows remarkable noise reduction with little impact to sharpness, especially under limited lighting condition. Besides, the advanced 3D NR effectively decreases the band width and saves the storage space.Smart IlluminationThe camera is designed with IR illumination for best lowlight performance. Smart IR is a technology to ensure brightness uniformity in B/W image under low illumination. Dahua\'s unique Smart IR adjusts to the intensity of camera\'s infrared LEDs to compensate for the distance of an object, and prevents IR LEDs from overexposing images as the object comes closer to the camera.Protection (IP67, wide voltage)IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can works normal after soaking in 1 m deep water for 30 mins.Wide voltage: The camera allows ±30% (for some power supplies) input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.Max. 30 fps@1080PStarlight, 130dB true WDR, 3D NRAuto focus, 2.7 mm–12 mm motorized lensCVI/CVBS/AHD/TVI switchableSuper AdaptBuilt-in micMax. IR length 80 m, Smart IRIP67, 12V DC

Kods: HAC-HFW1231R-Z-A-2712

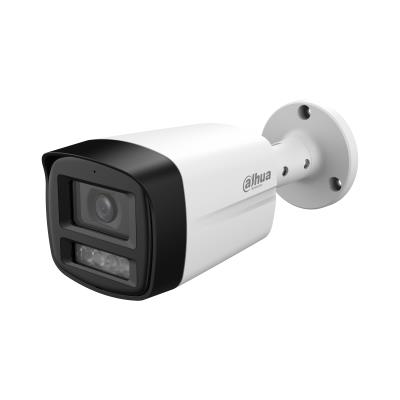

HDCVI Cameras

> Max. 15 fps@4K. > Smart Dual Light. > 40 m illumination distance. > Super Adapt. > Built-in Mic. > 3.6 mm fixed lens. > CVI/CVBS/AHD/TVI switchable. > IP67, 12 VDC. > Field of View: 86.8°

Kods: HFW1801TLM-IL-A-0360B-S2

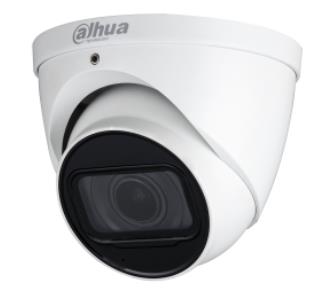

HDCVI Cameras

> Max 25 fps@5MP (16:9 video output) > Starlight, 120 dB true WDR, 3D NR > CVI/CVBS/AHD/TVI switchable > Built-in mic > 2.7 mm–13.5 mm motorized lens > Max. IR length 60 m, Smart IR > IP67, 12V DC±30%

Kods: HAC-HDW2501TZA-27135S2
