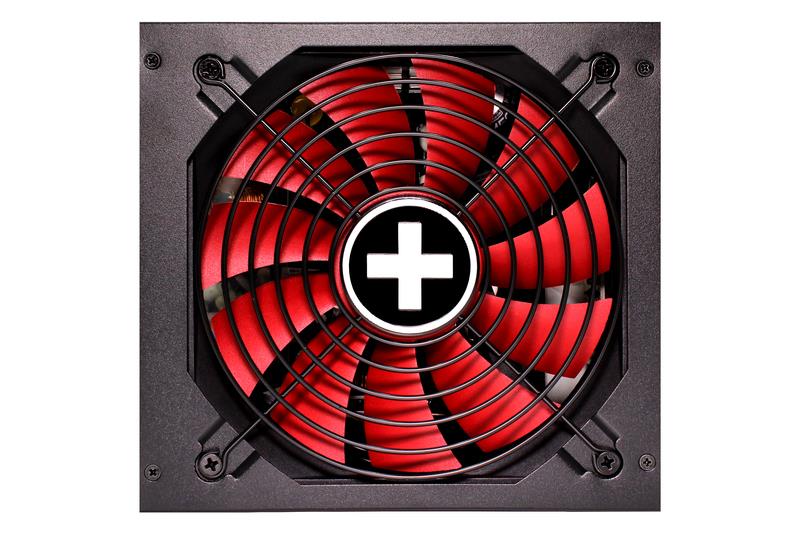

Power Supply|XILENCE|750 Watts|Efficiency 80 PLUS GOLD|PFC Active|XN173

  • Produkta kods: XN173
  • EAN: 4044953503740
  • Stāvoklis: Jauns
CenaSkaitsPiegāde

119.05

98.39 € (bez PVN 21%)

5

23.04.

Apraksts

The semi-modular power supplies of the X+ series are capable of absorbing high load peaks above the normal rated power in the shortest possible time and comply with Intel\'s Design Guide 3.0. Thus, the power supplies are ideally
suited for driving the latest and most powerful gaming graphics cards with PCI Express 5 specifications. An 80+ Gold certification confirms a high efficiency and energy efficiency of this power supply series. Six different protection circuits (OCP, OVP, UVP, SCP, OPP, OTP) ensure safe operation even in heated gaming sessions. The fans of the ATX 3.0 power supplies run with Fluid Dynamic Bearing technology and are very quiet. In addition, they convince with an extremely long durability and their excellent cooling performance. All of these specifications make the affordable Performance X+ series ideal for use with the latest gaming PC systems.

Šim produktam ir 24 mēnešu garantija.

Parametri

SummaryXilence Performance X Series XP750MR9.2. Total power: 750 W, AC input voltage: 100 - 240 V, Power Factor Correction (PFC) type: Active. Motherboard power connector: 20+4 pin ATX, Cabling type: Semi-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Red, Cooling type: Active, Fan diameter: 14 cm. Compliance certificates: RoHS, WEEE
Ražotājs datu lapahttps://www.xilence.net/en/power-supplies/248
CnCode85044095
Vienība kastes augstums0.195
Vienība kastes garums0.29
Vienība kastes platums0.095
Ieejas spriegums100 - 240 V
Efektivitāte92 %
Max izejas strāva (+12V)62.5 A
Max izejas strāva (+3.3V)20 A
Max izejas strāva (+5V)20 A
Max izejas strāva (+5Vsb)3 A
Max izejas strāva (-12V)0.3 A
Barošanas faktors korekcija (PFC) tipsActive
Barošanas aizsardzība funkcijasOver current/Over power/Over voltage/Short circuit/Under voltage
Kopējais barošanas750 W
Kabeļu veidsSemi-Modular
CPU P4 savienotājs (4 kontaktu)1
Centrālā procesora barošanas savienotājs (4+4 kontakti)Yes
Motherboard barošanas savienotājs20+4 pin ATX
Numurs of SATA barošanas savienotāji6
PCI Express jauda connectors (6+2 pin)3
PCI Express jauda connectors (8-pin)1
80 plus sertifikācija80 PLUS Gold
ATX versija3.0
Gultņu tehnoloģijaFDB
Barošanas barošana vienība (PSU) formas faktorsATX
MērķisPC
Dzesēšanas tipsActive
Ventilatora diametrs140 mm
Numurs Of Fans1 fan(s)
Produkts krāsaBlack/Red
Atbilstības sertifikātiRoHS/WEEE
Dziļums160 mm
Augstums86 mm
Platums150 mm
Iepakojums tipsBox
Sustainability certificatesErP
Sustainability complianceYes
Modelis NosaukumsXN173 | XP750MR9.2
Vienības uz palete0
Vienības uz piegāde kastes6
Vienība Calculated skaļums0.00795 cubm
Vienība Calculated svars2.87 kg
