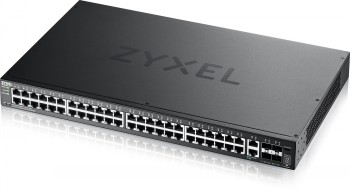

ZYXEL XGS2220-54, L3 ACCESS SWITCH, 48X1G RJ45 2X10MG RJ45, 4X10G SFP+ UPLINK, INCL. 1 YR NEBULAFLEX PRO (5Y WARRANTY)

  • Produkta kods: XGS2220-54-EU0101F
  • EAN: 4718937625093
  • Stāvoklis: Jauns
CenaSkaitsPiegāde

925.13

765.44 € (bez PVN 21%)

1

07.08.

Apraksts

XGS2220 Series 24/48-port GbE L3 Access Switch with 6 10G Uplink

The XGS2220 Series is a family of Layer 3 access Switch that consists of six models, including PoE, Non-PoE and fiber options. In addition to four 10G SFP+ uplink, all of them come with two additional 10G Multi-Gigabit (1G/2.5G/5G/10G) RJ-45 ports for more flexible connectivity.

Non-PoE models XGS2220-30 and XGS2220-54 provide 24 or 48 Gigabit desktop ports for every day network access. PoE models XGS2220-30HP, XGS2220-54HP and XGS2220-54FP provide additional power over Ethernet capability and ready for WiFi 6/6E connectivity

NebulaFlex Pro allows users to switch between standalone management and intuitive Nebula cloud managed mode with 1-YEAR Pro Pack bundled

Support Multi-Gigabit: 100M/1G/2.5G/5G/10G connections

Šim produktam ir 5 mēnešu garantija.

Parametri

Portu daudzums54
PoE atbalstsYes
Slēdža tipsEthernet
Īss kopsavilkumsThe XGS2220 Series is a family of Layer 3 access Switch that consists of six models, including PoE, Non-PoE and fiber options.
MAC adreses tabulas ieraksti32000 entries
Spanning Tree protokolsYes
Apraides vētras vadībaYes
Slēdža slānisL3
SertifikācijaLVD, BSMI, FCC Part 15 (Class A), CE EMC (Class A), BSMI EMC, RoHS Level A
Izmēri P×Dz×A (mm)441 x 270 x 44 pixels
Svars (g)3850 g
Darbības temperatūras diapazons (°C)-20-50
Uzstādītā RAM1 GB
Glabāšanas temperatūras diapazons (°C)-40-70
Zibatmiņa (MB)64 MB
Pakalpojuma kvalitātes (QoS) atbalstsYes
Atbalstītie drošības algoritmiRADIUS, TACACS+
Komutācijas ietilpība (Gbit/s)261 Gbit/s
Enerģijas patēriņš (W)57.31 W
IGMP snoopingYes
MIB atbalstsZyxel new private MIB
Zyxel common MIB
Zyxel ES-Common MIB
RFC 1066 TCP/IP-based MIB
RFC 1213, 1157 SNMPv2c/v3 MIB
RFC 1493, 4188 bridge MIB
RFC 1643 Ethernet MIB
RFC 1757 RMON group 1, 2, 3, 9
RFC 2011, 2012, 2013 SNMPv2 MIB
RFC 2233 SMIv2 MIB
RFC 2358 Ethernet-like MIB
RFC 2674 bridge MIB extension
RFC 2819, 2925 remote management MIB
RFC 3621 power Ethernet MIB
RFC 4022 management information base for transmission control protocol
RFC 4113 management information base for user datagram protocol
RFC 4292 IP forwarding table MIB
RFC 4293 Management Information Base (MIB) for IP
Cable diagnostic MIB
SSH/SSL atbalstsYes
Tīmekļa pārvaldībaYes
