TV SET ACC WALL MOUNT/WL30S-950BL19 NEOMOUNTS

  • Produkta kods: WL30S-950BL19
  • EAN: 8717371449551
  • Stāvoklis: Jauns
CenaSkaitsPiegāde

207.68

171.64 € (bez PVN 21%)

2

23.04.

207.84

171.77 € (bez PVN 21%)

6

30.04.

Apraksts

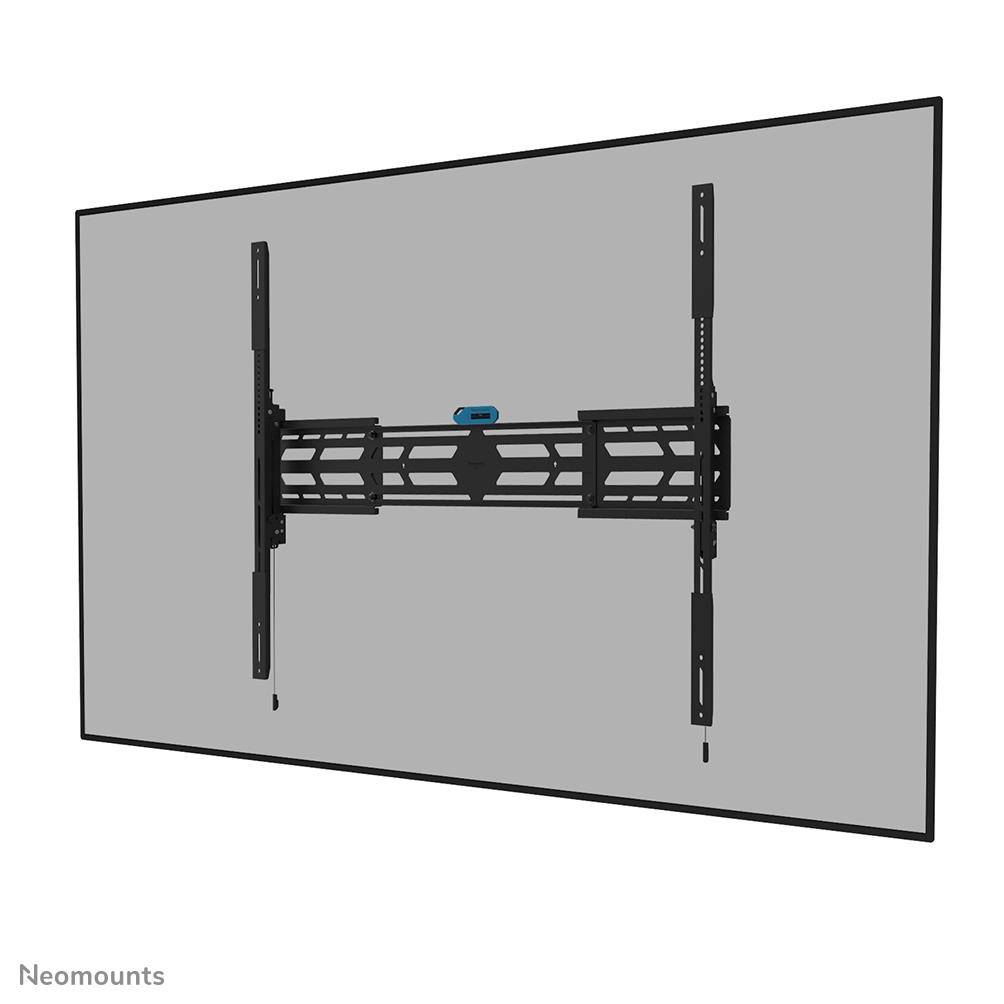

The Neomounts WL30S-950BL19 is a fixed heavy-duty wall mount for flat screens up to 115" with a maximum weight capacity of 160 kg. It is possible to install the screen in both portrait and landscape orientation. The mount features individual height adjustable brackets and level adjustment is available for the perfect installation.

The WL30S-950BL19 has a depth of 6,5 cm and is, thanks to the included vertical extension brackets, suitable for screens that meet VESA hole pattern 100x100 to 1500x900 mm. Due to the unique extendable design, the mount can be adjusted to a wide range of screens dimensions; from 55" up to 115". It is possible to lock the mount using a padlock (not included).

The mount features a nifty magnetic pull & release system, that allows you to attach the TV in a wink of an eye and secure the TV in safe and solid manner. Afterwards, the pull & release straps can be easily hidden behind the screen by clicking the magnet to the mount. A separate spirit level tool is included with the wall mount to ensure easy installation of the mount.

Šim produktam ir 5 mēnešu garantija.

Parametri

SummaryNeomounts WL30S-950BL19 Heavy duty wall mount 55-115" - fixed - lockable - landscape and portrait. Maximum weight capacity: 160 kg, Minimum screen size: 139.7 cm (55"), Maximum screen size: 2.92 m (115"), Minimum VESA mount: 100 x 100 mm, Maximum VESA mount: 1500 x 900 mm. Height adjustment range: 0 - 20 mm, Angle of rotation: 6°, Distance to the wall (max): 6.7 cm. Product colour: Black
Ražotājs datu lapahttps://www.neomounts.com/default.asp?pageid=44&artdetail=WL30S-950BL19
Vienība kastes augstums0.225
Vienība kastes garums0.925
Vienība kastes platums0.1
Maksimālais ekrāna izmērs115 "
Maksimālais Vesa stiprinājums1500 x 900 mm
Maksimālais svars ietilpība160 kg
Maksimālais svars ietilpība uz displejs160 kg
Minimālais ekrāna izmērs55 "
Minimālais Vesa stiprinājums100 x 100 mm
Montāžas veidsWall
Numurs Of displeji atbalstīts1
Paneļa montāžas interfeiss100 x 100/100 x 150/100 x 200/1000 x 400/1000 x 600/1000 x 700/1000 x 800/1200 x 600/1200 x 800/1200 x 900/1400 x 800/1500 x 600/1500 x 900/200 x 100/200 x 150/200 x 200/200 x 300/200 x 400/300 x 100/300 x 200/300 x 300/300 x 900/350 x 350/400 x/400 x 200
rotācijas leņķis6 °
Attālums To The sienas Max67 mm
Glavas atbalsta un plecu jostu pilnkomplektaYes
Augstums regulēšana diapazons0 - 20 mm
Šarnīra leņķis-3 - 3 °
Pieņem slēdzeniYes
Korpusa materiālsSteel
Produkts krāsaBlack
Izcelsmes valstsChina
LockableSecurity screw included
OrientācijaLandscape/Portrait
Iepakojums tīkla svars11700 g
Garantija period5 year(s)
Dziļums67 mm
Dziļums Maks.67 mm
Augstums936 mm
Svars10150 g
Platums1600 mm
Iepakojums dziļums98 mm
Iepakojums augstums918 mm
Iepakojums svars11700 g
Iepakojums platums222 mm
Harmonizētās sistēmas (HS) kods7326909890
Galvenais (outer) korpuss bruto svars23900 g
Galvenais (outer) korpuss augstums938 mm
Galvenais (outer) korpuss garums242 mm
Galvenais ārējais korpuss tīkla svars20300 g
Galvenais (outer) korpuss platums211 mm
Produkti uz galvenais (outer) korpuss2 pc(s)
Produkti uz palete (EU)30 pc(s)
Platums regulēšana diapazons893 - 1600 mm
ModelisWL30S-950BL19
Vienības uz piegāde kastes1
Vienība Calculated skaļums0.02081 cubm
Vienība Calculated svars11.8 kg
