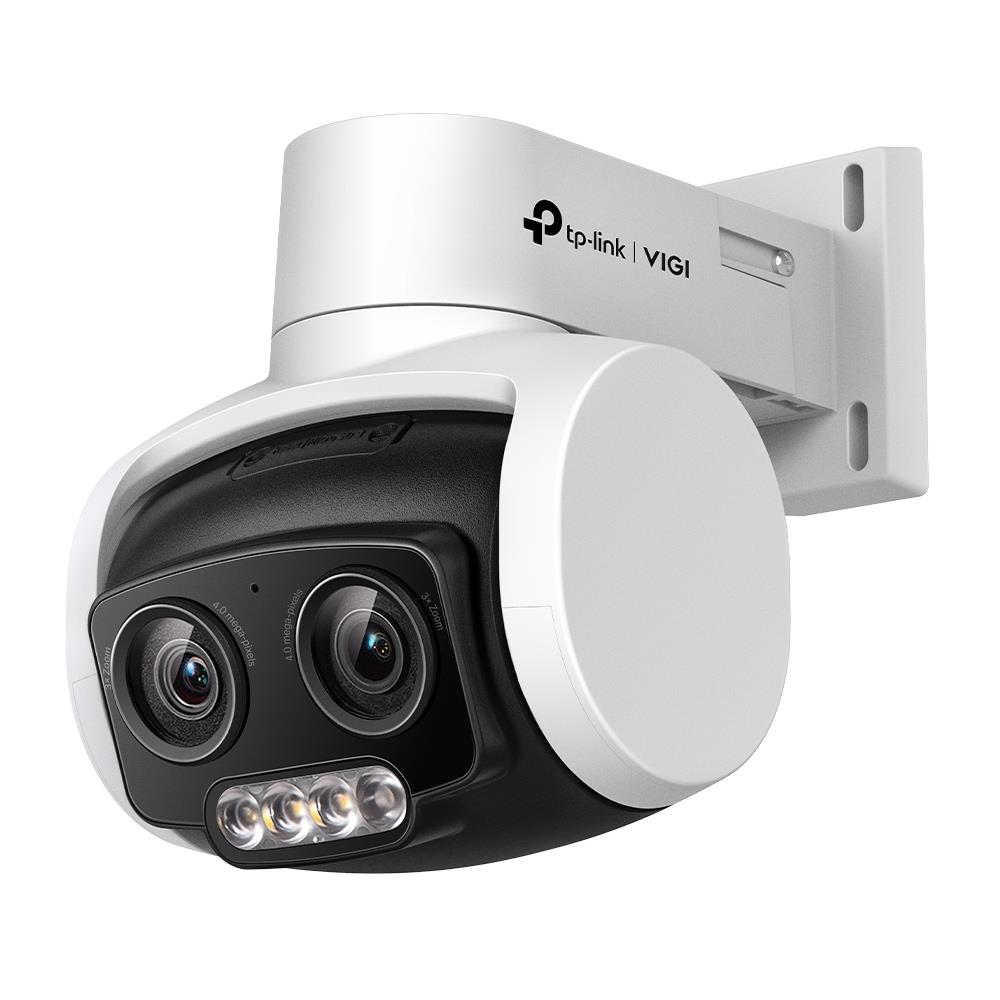

NET CAMERA 4MP PTZ/VIGI C540V TP-LINK

  • Produkta kods: VIGIC540V
  • EAN: 4895252500837
  • Stāvoklis: Jauns
CenaSkaitsPiegāde

146.03

120.69 € (bez PVN 21%)

1

23.04.

Apraksts

See More With Less
4MP Outdoor Full-Color Dual-Lens
Varifocal Pan Tilt Network Camera

Clarity and Colors, All in One
Monitor 24-hour clear and colorful details even in pitch dark night. VIGI Full-Color camera provides maximum 4MP resolutions and ensures colorful monitoring with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.

Powerful Pan Tilt
Cover every corner flexibly with VIGI’s Pan Tilt camera. Customized patrol routes provide more intelligent and quick options to monitor key areas (up to 8 points for each route).

Human & Vehicle Classification
Integrated AI chips support advanced algorithms to distinguish humans and vehicles from other objects. You can flexibly customize alarm rules to match your monitoring needs and receive more accurate event notifications.

Automatic Tracking
Continues following specified moving persons or vehicles with Pan Tilt cameras intelligently analyzing the image. Track the path efficiently when there should be little movement in the area.

Smart Detection for Efficient Monitoring
By setting the detection rules in advance, VIGI AI-powered cameras can accurately capture various abnormal events. This will greatly reduce false alarms and cover your specified monitoring needs in different scenarios.

Active Defense
Warn potential intruders instantly with sound and light when abnormal events are detected.

Two-Way Audio
With voice intercom support, carry two-way conversations while watching your feed from anywhere.

PoE & IP66
Outdoor PoE connection makes your wiring remarkably easy. Reliable IP66 enables stable outdoor performance.

Smart Video Coding by H.265+
Compresses the video size without sacrificing video quality, easing the network load and saving disk space.

Flexible Storage
Local storage is available for each method, as well as onbsoard storage with an SD card slot (up to 256 GB).

Remote Management
Take full control over your security anytime and anywhere on the VIGI app or client.

One system. Full security.
Run your business with peace of mind.
The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you’ve worked hard to build — whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.



  • 4MP Super-High Definition: 4MP offers more than enough pixels to pick up some of the more discreet details
  • 24h Full-Color: Captures 24 hours of full-color details, even in pitch-black conditions, thanks to large-aperture lens, a high-sensitivity sensor, and 4× attached supplemental lights
  • 3× Zoom: Allows for closer viewing of objects in expansive areas
  • Instant Zoom: Zooming is instant without suffering from delays and image dragging
  • Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications
  • Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you\'ve set, obstructs the camera, removes/abandons objects, or enters/exits certain region
  • Powerful Pan Tilt: Customized patrol routes and auto tracking provide more intelligent options to monitor key areas and improve security within your property
  • Active Defense: Warn potential intruders instantly with sound and light when abnormal events
  • Two-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhere
  • H.265+: Compresses the video size without sacrificing video quality, easing the network load and saving disk space
  • IP66 Waterproof: Reliable IP66 for stable outdoor performance
  • Flexible Management and Storage: Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manager. Local storage is available for each method, as well as onboard storage with SD card slot (up to 256GB)

Šim produktam ir 36 mēnešu garantija.

Parametri

SummaryTP-Link VIGI 4MP Outdoor Full-Color Dual-Lens Varifocal Pan Tilt Network Camera. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Black, Housing material: Plastic. Lens viewing angle, horizontal: 84°, Lens viewing angle, vertical: 46°, Lens viewing angle, diagonal: 100°. Sensor type: CMOS, Optical sensor size: 25.4 / 3 mm (1 / 3"). Digital zoom: 3x, Focal length range: 4 - 12 mm
Ražotājs datu lapahttps://www.tp-link.com/uk/business-networking/vigi-network-camera/vigi-c540v/
Vienība kastes augstums0.16
Vienība kastes garums0.19
Vienība kastes platums0.15
Korpusa materiālsPlastic
Starptautiskās aizsardzības (SA) kods:IP66
Montāžas veidsCeiling
Produkts krāsaBlack/White
SertifikācijaCE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC
Savienojamības tehnoloģijaWired
Novietojums atbalstītsIndoor & outdoor
PTZ vadībaYes
TipsIP security camera
Kamera panoramēšanas vadībaYes
Kamera noliekšana vadībaYes
Objektīva skatīšanās leņķis diagonāle100 °
Objektīva skatīšanās leņķis horizontāls84 °
Objektīva skatīšanās leņķis vertikāls46 °
Pan diapazons0 - 332 °
Pan Ātrums55 °/sec
Noliekšana leņķis diapazons0 - 120 °
Noliekšana Ātrums40 °/sec
Numurs Of sensori1
Optiskais sensors izmērs1/3 "
Sensors tipsCMOS
Digitālā tālummaiņa3 x
Fokusa garums diapazons4 - 12 mm
Maksimālais aperture numurs1.6
Numurs Of objektīvi1
Tālummaiņa CapabilityYes
Infra sarkans viļņa garums850 nm
LED TipsIR
Nakts redzeYes
Nakts redze attālums30 m
Numurs Of apgaismojums Leds1
Bitu ātrums256 Kbps - 4 Mbps
Bitu ātrums vadībaConstant Bit Rate (CBR),Variable Bit Rate (VBR)
Kadru zīmēšanas ātrums30 fps
Maksimālais izšķirtspēja2560 x 1440 pixels
Atbalstīts grafika resolutions1280 x 720 (HD 720)/1920 x 1080 (HD 1080)/2048 x 1280/2304 x 1296/2560 x 1440
Atbalstīts video režīmi1080p/1440p/720p
Kopējais Megapixels4 MP
Video formāti atbalstītsH.264/H.264+/H.265/H.265+
Video ierakstīšanaYes
BluetoothNo
Ethernet Saskarne TipsFast Ethernet
ETHERNET/LANYes
Wi-FiNo
Iebūvēts In HDDNo
Iebūvēts karšu lasītājsYes
Saderīgas atmiņas kartesMicroSD (TransFlash)
Maksimālais atmiņa kartes izmērs256 GB
Ethernet LAN (RJ-45) pieslēgvietas1
Līdzstrāva Izeja Spriegums12
Barošanas consumption (max)14 W
Barošanas consumption (typical)2.9 W
Barošanas avots tipsPoE
Darbības relatīvs mitrums (H-H)5 - 95 %
Darbības temperatūra (T-T)-30 - 60 °C
Glabāšana relatīvs mitrums (H-H)5 - 95 %
Glabāšana temperatūra (T-T)-40 - 60 °C
Dziļums139 mm
Augstums107 mm
Svars430 g
Platums136 mm
Iepakojums tipsBox
Iepakojums svars660 g
ManuālsYes
Numurs of cameras1
ModelisVIGI C540V
Vienības uz piegāde kastes1
Vienība Calculated skaļums0.00456 cubm
Vienība Calculated svars0.7 kg
