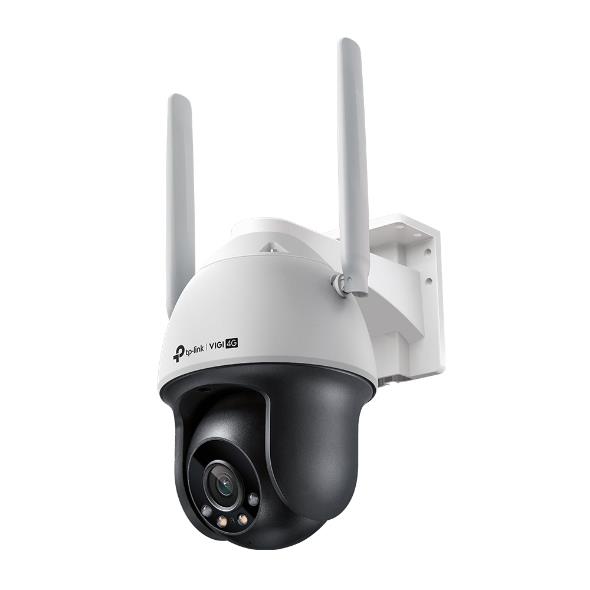

WRL CAMERA 4MP PAN/TILT/VIGI C540-4G(4MM) TP-LINK

  • Produkta kods: VIGIC540-4G(4MM)
  • EAN: 4895252504910
  • Stāvoklis: Jauns
CenaSkaitsPiegāde

182.47

150.80 € (bez PVN 21%)

3

23.04.

Apraksts

Clarity and Colors, All in One
Experience clear, vibrant 24-hour monitoring, even in total darkness, with the VIGI Full-Color camera. Its 4MP resolution, large-aperture
lens, high-sensitivity sensor, and supplemental lights deliver comprehensive, colorful surveillance.

Network Anywhere You Need It
No need to connect network cables. Just insert a Nano-SIM card, then your camera is ready to connect to a 4G LTE network. Enjoy hassle-free installation and simple monitoring in places where the internet is not available, such as farms, forests, and construction sites.

Powerful Pan Tilt
Cover every corner flexibly with VIGI’s Pan Tilt camera. Customized patrol routes provide more intelligent and quick options to monitor key areas (up to 8 points for each route), reducing manual costs for adjusting pan & tilt angles repeatedly.

Human & Vehicle Classification
Integrated AI chips support advanced algorithms to distinguish humans and vehicles from other objects. You can flexibly customize alarm rules to match your monitoring needs and receive more accurate event notifications.

Automatic Tracking
Automatically tracks persons or vehicles of interest and provides seamless and longer video. This way, you will better understand what\'s happening and take action without wasting time on irrelevant footage.

Smart Detection for Efficient Monitoring
By setting the detection rules in advance, VIGI AI-powered cameras can accurately capture various abnormal events. This will greatly reduce false alarms and cover your specified monitoring needs in different scenarios.

Active Defense
Warn potential intruders off instantly with sound and light to pro-actively protect your property, even while away from the scene.

Two-Way Audio
With voice intercom support, carry two-way conversations while watching your feed from anywhere.

Smart Video Coding by H.265+
Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.

Remote Management
Take full control over your security anytime and anywhere on the VIGI app or client.

One system. Full security.
Run your business with peace of mind.
The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you’ve worked hard to build — whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.

  • 4MP Super-High Definition: The camera comes with 4MP–more than enough pixels to pick up some of the more discrete details
  • 24h Full-Color: Experience clear, vibrant 24-hour monitoring, even in total darkness
  • 4G Mobile Networking: Enjoy hassle-free installation and simple monitoring in places where the internet is not available
  • 360° Monitoring: Cover every corner and eliminate blind spots
  • Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications
  • Smart Detection: Actively detects abnormal events like area intrusion and line-crossing, sending notifications to you instantly
  • Automatic Tracking: Automatically tracks persons or vehicles of interest and provides seamless and longer video
  • Active Defense: Warn potential intruders instantly with sound and light when abnormal events
  • Two-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhere
  • H.265+: Compresses the video size without sacrificing video quality, easing the network load and saving disk space
  • IP66 Waterproof: Reliable IP66 for stable outdoor performance
  • Remote Management: Take full control over your security anytime and anywhere on the VIGI app or PC client
  • Onboard Storage: Support on-board storage up to 256 GB (SD card slot)

Šim produktam ir 24 mēnešu garantija.

Parametri

SummaryTP-Link VIGI C540-4G. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Turret. Lens viewing angle, horizontal: 80°, Lens viewing angle, vertical: 43°, Lens viewing angle, diagonal: 94°. Sensor type: CMOS, Optical sensor size: 25.4 / 3.06 mm (1 / 3.06"). Detect distance: 80 m, Observe distance: 33 m, Recognize distance: 16 m
Ražotājs datu lapahttps://www.tp-link.com/my/business-networking/vigi-network-camera/vigi-c540-4g/#overview
Vienība kastes augstums0.245
Vienība kastes garums0.24
Vienība kastes platums0.16
Automātiskā patrulēšanas režīmsYes
SertifikācijaRCM, BSMI, VCCI, NTRA, KC
Savienojamības tehnoloģijaWired
Dienas nakts režīmsYes
Infrasarkanais IR griešanas izslēgšana filtrsYes
Gaismas plūsma0.005 lm
Novietojums atbalstītsIndoor & outdoor
TipsIP security camera
Plats dinamisks diapazons (WDR)Yes
Formas faktorsTurret
Korpusa materiālsPlastic
Starptautiskās aizsardzības (SA) kods:IP66
Montāžas veidsCeiling/wall
Produkts krāsaBlack/White
Kamera panoramēšanas vadībaYes
Kameras aizvara ātrums1/3 - 1/10000 s
Kamera noliekšana vadībaYes
Objektīva skatīšanās leņķis diagonāle94 °
Objektīva skatīšanās leņķis horizontāls80 °
Objektīva skatīšanās leņķis vertikāls43 °
Numurs Of konfidencialitātes maskēšana Areas4
Pan diapazons0 - 348 °
Pan Ātrums44 °/sec
Noliekšana leņķis diapazons0 - 120 °
Noliekšana Ātrums44 °/sec
Optiskais sensors izmērs1/3.06 "
Sensors tipsCMOS
Detect attālums80 m
Identify attālums8 m
Objektīva diametrs4 mm
Maksimālais aperture numurs1.6
Minimālais aperture numurs1.6
Numurs Of objektīvi1
Observe attālums33 m
Recognize attālums16 m
Tālummaiņa CapabilityYes
LED TipsIR/White
Nakts redzeYes
Nakts redze attālums30 m
Numurs Of apgaismojums Leds4
3D PositioningYes
Bitu ātrums256 Kbps - 4 Mbps
Bitu ātrums vadībaConstant Bit Rate (CBR),Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Digitāls plats dinamisks diapazons DwdrYes
Kadru zīmēšanas ātrums30 fps
Attēla kvalitāte regulēšanaBrightness/Contrast/Mirror/Saturation/Sharpness
Maksimālais izšķirtspēja2560 x 1440 pixels
Trokšņa samazināšanaYes
Trokšņa samazināšana tehnoloģija3D noise reduction
Konfidencialitātes maskēšanaYes
Atbalstīts grafika resolutions1920 x 1080 (HD 1080)/2048 x 1280/2304 x 1296/2560 x 1440/320 x 240/352 x 288/640 x 480 (VGA)
Kopējais Megapixels4 MP
Video saspiešana formātiH.264/H.264+/H.265/H.265+
Video straumēšanaYes
Bitu ātrums diapazons64 - 64 Kbit/s
Iebūvētais mikrofonsYes
Iebūvēts skaļrunisYes
Parauga ātrums8 kHz
Signal-to-Noise attiecība (SNR)52 dB
3G StandartiWCDMA
4G StandartsLTE-TDD & LTE-FDD
Ethernet Saskarne TipsFast Ethernet
ETHERNET/LANYes
Tiešais skatsYes
Numurs Of vienlaicīgs tiešraides skats kanāli3 channels
SIM kartes slotsYes
SIM kartes tipsNanoSIM
Atbalstīts tīkls protokoliTCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
Iebūvēts In HDDNo
Iebūvēts karšu lasītājsYes
Saderīgas atmiņas kartesMicroSD (TransFlash)
Maksimālais atmiņa kartes izmērs256 GB
Ethernet LAN (RJ-45) pieslēgvietas1
Digest AuthenticationYes
HTTPS šifrēšanaYes
Inteliģents Video Surveillance Ivs Sistēma FunkcijasHuman detection
IP Address FilteringYes
SpogulisYes
Parole aizsardzībaYes
Uzvedības analīzeIntrusion detection,Line crossing detection
Atiestatīšana pogaYes
Līdzstrāva Izeja Spriegums12
Barošanas avots tipsDC
Darbības relatīvs mitrums (H-H)0 - 95 %
Darbības temperatūra (T-T)-30 - 60 °C
Glabāšana relatīvs mitrums (H-H)0 - 95 %
Glabāšana temperatūra (T-T)-40 - 60 °C
Dziļums182 mm
Augstums201 mm
Svars690 g
Platums120 mm
Pamata notikumaMotion Detection, Camera Tampering Detection, Exception
Atbilstības sertifikātiCE/RoHS
Iepakojums dziļums213 mm
Iepakojums augstums243 mm
Iepakojums svars1160 g
Iepakojums platums163 mm
Montāžas komplektsYes
Numurs of cameras1
Modelis NosaukumsC540-4G
Vienības uz piegāde kastes1
Vienība Calculated skaļums0.009408 cubm
Vienība Calculated svars1.21 kg
