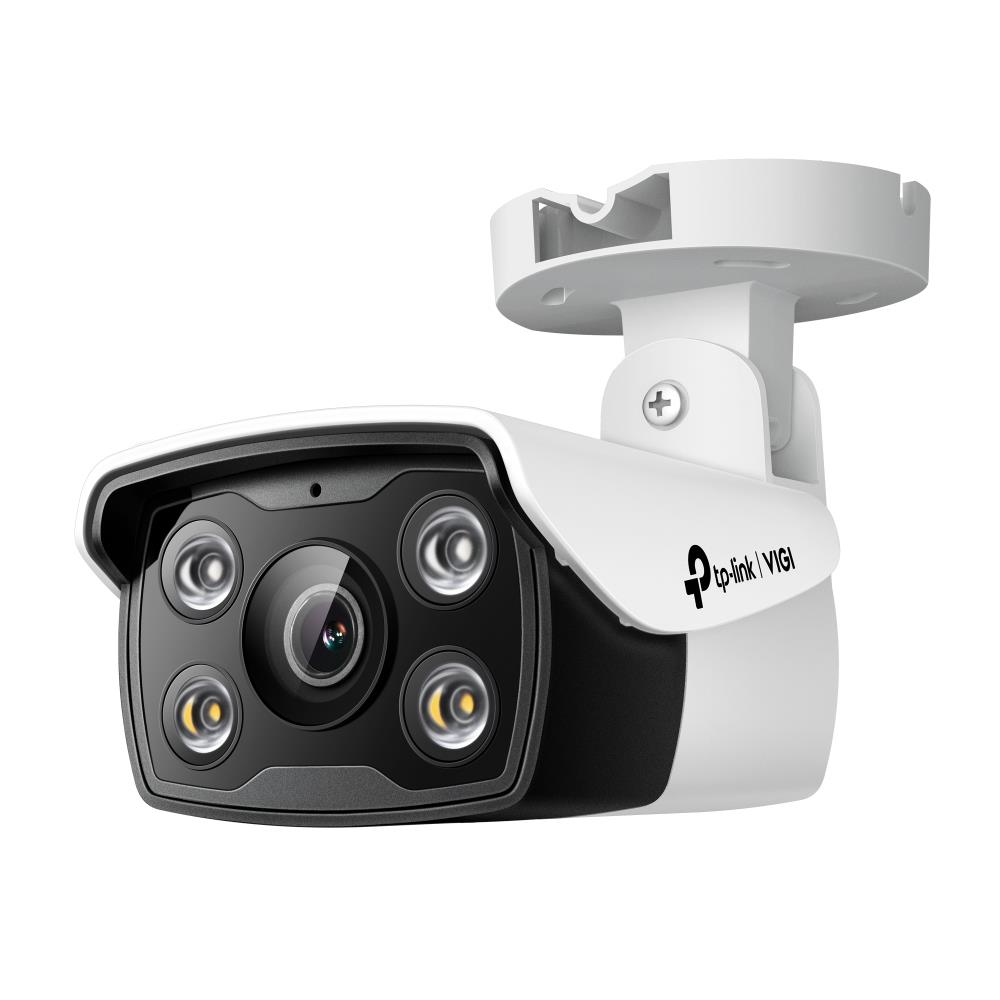

NET CAMERA BULLET H.264 4MP/VIGI C340(6MM) TP-LINK

  • Produkta kods: VIGIC340(6MM)
  • EAN: 4897098688632
  • Stāvoklis: Jauns
CenaSkaitsPiegāde

75.37

62.29 € (bez PVN 21%)

1

23.04.

Apraksts

All The Colors,
All The Time

4MP Outdoor Full-Color Bullet Camera

Outdoor PoE Connection, Simple Wiring
Just connect your camera via an RJ45 cable, then power supply and data transmission are all settled. Waterproof hardware protect stable performance in outdoor scenarios.

Clarity and Colors, All in One
Monitor 24-hour clear and colorful details even in pitch dark night. VIGI’s Full-Color camera provides maximum 4MP resolutions and ensures colorful monitoring with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.

We keep an eye on your business.
Smart Detection

Receive notifications and check feeds when someone crosses a boundary, enters an area you\'ve set, or obstructs the camera.

Motion Detection
Get instant notifications when your camera detects motion.

Area Intrusion
Set customized activity zones around key areas for more focused monitoring.

Line-Crossing
Set a boundary and receive an alert anytime a person crosses it from either or both directions.

Camera Tampering
Receive alerts when someone obstructs the camera.

Active Defense
Warn potential intruders instantly with sound and light when abnormal events

Every Event is Under Your Control.
VIGI camera intelligently detect activities, inform you instantly and response automatically by smart detection and two-way audio.

Never miss a detail.
SmartVid-Smart Video Enhancement

Smart IR
Keeps objects from being under-rendered when far away or overexposed when close to camera at night.

Wide Dynamic Range
Adjusts for lighting contrast to minimize shadowing effects and renders images true to life.

3D DNR
Removes abnormal pixelation to provide clearer video and eliminate distortion.

More compression. More savings. Same quality.
Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.

Flexible Management and Storage
Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manger. Local storage is available for each method, as well as on-board storage with SD card slot (up to 256 GB).

Discover the best way to power your camera.
PoE/12V DC

Two power supply ways not only give you more convenience but also make your wiring remarkably easy.

Flexible Installation
Find the perfect vantage point by simply securing your camera to ceiling, pole or wall.

One system. Full security.
Run your business with peace of mind.

The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you’ve worked hard to build — whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.

  • 4MP High Definition: The camera comes with 4MP–more than enough pixels to pick up some of the more discrete details
  • 24h Full-Color: Obtain 24-hour color details, even in pitch-black conditions, via high-sensitivity sensor and included spotlight LEDs
  • Waterproof: Reliable IP66 for stable outdoor performance
  • Smart Detection (human detection, motion detection, area intrusion, line-crossing, video tampering): Receive notifications and check feeds when someone crosses a boundary, enters an area you\'ve set, or obstructs the camera
  • H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality
  • PoE/12V DC: Two power supply ways not only give you more convenience but also make your wiring remarkably easy
  • VIGI App: Manage your security from the palm of your hand with the VIGI app

Šim produktam ir 36 mēnešu garantija.

Parametri

SummaryTP-Link VIGI C340. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/Wall/Pole, Product colour: Black, White, Form factor: Bullet. Minimum illumination: 0.005 lx, Lens viewing angle, horizontal: 50°, Lens viewing angle, vertical: 27°. Sensor type: CMOS, Optical sensor size: 25.4 / 3 mm (1 / 3"). Detect distance: 128 m, Observe distance: 53 m, Recognize distance: 16 m
Ražotājs datu lapahttps://www.tp-link.com/en/business-networking/vigi-network-camera/vigi-c340/v1%20(6mm%20lens)/
Vienība kastes augstums0.1
Vienība kastes garums0.21
Vienība kastes platums0.13
Formas faktorsBullet
Korpusa materiālsPlastic
Starptautiskās aizsardzības (SA) kods:IP66
LED indikatoriYes
Montāžas veidsCeiling/Wall/Pole
Produkts krāsaBlack/White
Iebūvēts In gaismasYes
Savienojamības tehnoloģijaWired
Dienas nakts režīmsYes
Infrasarkanais IR griešanas izslēgšana filtrsYes
Novietojums atbalstītsOutdoor
TipsIP security camera
Kameras aizvara ātrums1/3 - 1/10000 s
Objektīva skatīšanās leņķis diagonāle59 °
Objektīva skatīšanās leņķis horizontāls50 °
Objektīva skatīšanās leņķis vertikāls27 °
Minimālais apgaismojums0.005 lx
Numurs Of konfidencialitātes maskēšana Areas4
Pan diapazons-90 - 90 °
Noliekšana leņķis diapazons-90 - 90 °
Numurs Of sensori1
Optiskais sensors izmērs1/3 "
Progressive skenēšanaYes
Sensors tipsCMOS
Detect attālums128 m
Fiksēts fokusa garums6 mm
Identify attālums13 m
Maksimālais aperture numurs1.6
Numurs Of objektīvi1
Observe attālums53 m
Recognize attālums16 m
Infra sarkans viļņa garums850 nm
LED TipsIR
Nakts redzeYes
Nakts redze attālums30 m
Numurs Of apgaismojums Leds2
3D PositioningYes
Muguras gaismas kompensācija BlcYes
Bitu ātrums256 Kbps - 4 Mbps
Bitu ātrums vadībaConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Digitāls plats dinamisks diapazons DwdrYes
Kadru zīmēšanas ātrums30 fps
Izcēlums kompensācija HlcYes
Attēla kvalitāte regulēšanaBrightness/Contrast/Mirror/Saturation
Maksimālais izšķirtspēja2560 x 1440 pixels
Trokšņa samazināšanaYes
Trokšņa samazināšana tehnoloģija3D noise reduction
Konfidencialitātes maskēšanaYes
Reģions Of Interest Roi kodēšanaYes
Viedais IRYes
Atbalstīts grafika resolutions1280 x 720 (HD 720)/1920 x 1080 (HD 1080)/2048 x 1280/2304 x 1296/2560 x 1440
Kopējais Megapixels4 MP
Video saspiešana formātiH.264/H.264+/H.265/H.265+
Video straumēšanaYes
Audio ievades kanāli1.0 channels
Audio izvades kanāli1.0 channels
Audio sistēma2-way
Bitu ātrums diapazons0 - 64 Kbit/s
Iebūvētais mikrofonsYes
Iebūvēts skaļrunisYes
Parauga ātrums8 kHz
Signal-to-Noise attiecība (SNR)52 dB
BluetoothNo
ETHERNET/LANYes
Tiešais skatsYes
Tīklošana standartiIEEE 802.3af/IEEE 802.3at
Numurs Of vienlaicīgs tiešraides skats kanāli3 channels
Atbalstīts tīkls protokoliTCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
Wi-FiNo
Iebūvēts In HDDNo
Iebūvēts karšu lasītājsYes
Saderīgas atmiņas kartesMicroSD (TransFlash)
Maksimālais atmiņa kartes izmērs256 GB
Līdzstrāvas ligzdaYes
Ethernet LAN (RJ-45) pieslēgvietas1
Digest AuthenticationYes
HTTPS šifrēšanaYes
IP Address FilteringYes
Tīkls Piekļuves glabāšana NASYes
Parole aizsardzībaYes
Video kustības noteikšanaYes
Uzvedības analīzeIntrusion detection,Line crossing detection
Atiestatīšana pogaYes
Tīmekļa pārlūkprogrammaYes
Līdzstrāva Izeja Spriegums12
Barošanas consumption (max)7 W
Barošanas consumption (typical)3.4 W
Barošanas avots tipsDC,PoE
Darbības relatīvs mitrums (H-H)0 - 95 %
Darbības temperatūra (T-T)-30 - 60 °C
Glabāšana relatīvs mitrums (H-H)0 - 95 %
Glabāšana temperatūra (T-T)-40 - 60 °C
Augstums70 mm
Garums78 mm
Svars280 g
Platums174 mm
Atbilstības sertifikātiBSMI/CE/KC
Iepakojums tipsBox
Iepakojums svars420 g
Sustainability complianceYes
ManuālsYes
Montāžas komplektsYes
Numurs of cameras1
ModelisVIGI C340(6MM)
Vienības uz piegāde kastes1
Vienība Calculated skaļums0.00273 cubm
Vienība Calculated svars0.459 kg
