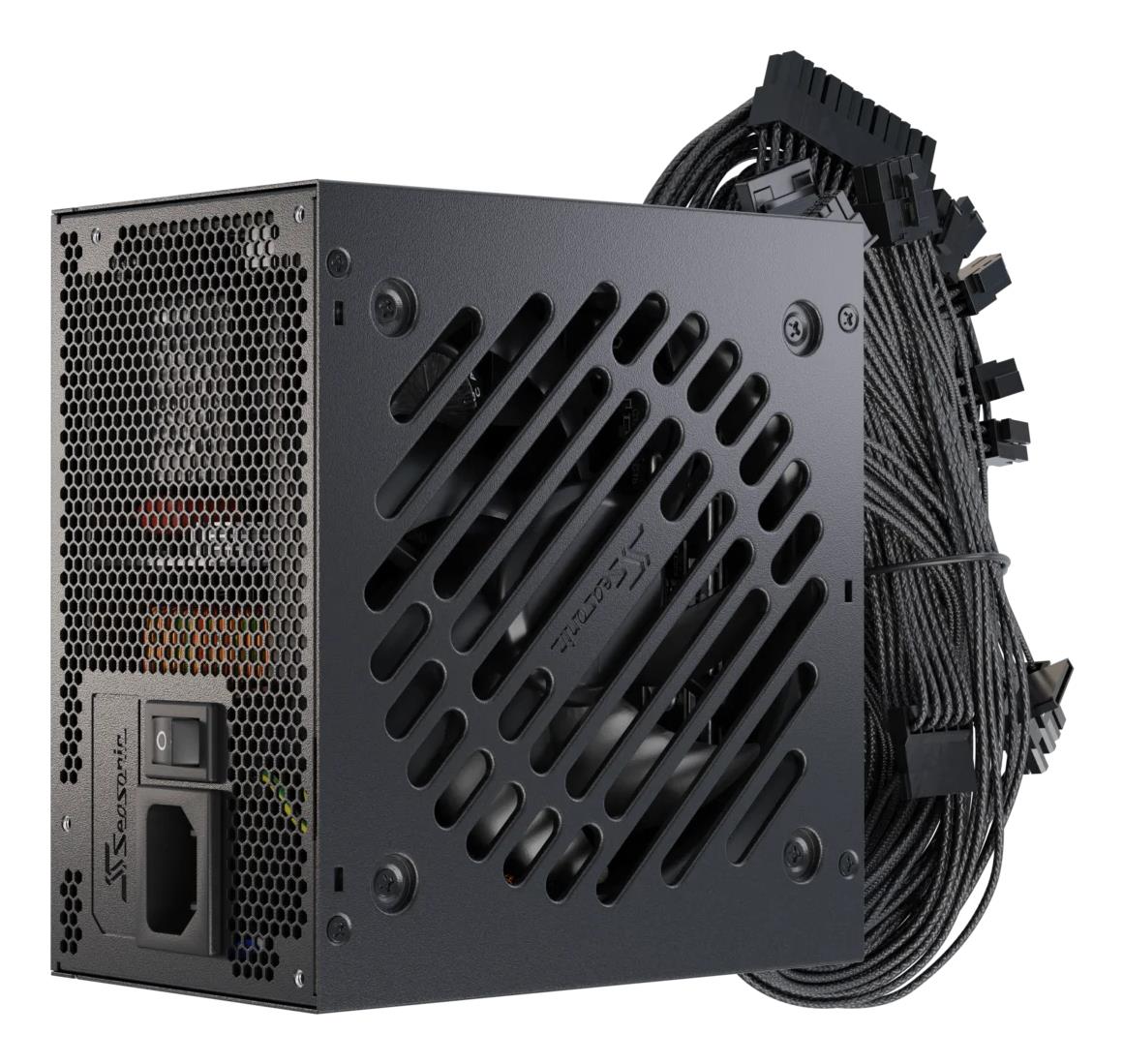

Power Supply|SEASONIC|ATX|PC|100 - 240 V|750 W|SRP-CBC751-A5A51JF

  • Produkta kods: SRP-CBC751-A5A51JF
  • EAN: 4711173879442
  • Stāvoklis: Jauns
CenaSkaitsPiegāde

75.83

62.67 € (bez PVN 21%)

100

23.04.

Apraksts

CORE BC – Power Made Simple

The Seasonic CORE BC Series delivers reliable performance and modern ATX 3.1 compliance at an essential value. Designed for everyday builders and gamers, it embodies Seasonic’s trusted quality in a compact 140 mm design with a durable scratch-resistant finish.

With 80 PLUS® Bronze efficiency, Smart and Silent Fan Control (S2FC), and a 120 mm HDB fan, it ensures cool, quiet, and stable operation. The CORE BC-750 and CORE BC-850 include a 12V-2×6 PCIe Gen 5.1 cable, ready for the latest GPUs, while the CORE BC-650 meets all ATX 3.1 requirements with traditional connectors.

Built on decades of engineering excellence, the CORE BC Series delivers the quiet efficiency, reliability, and durability that define every Seasonic power supply.

Next-Gen and Legacy GPU Cable
Includes native 12V-2x6 and 2× 8-pin cables for maximum compatibility

S2FC - Intelligent Fan Control Technology
The Smart and Silent Fan Control (S2FC) system intelligently regulates the power supply’s fan speed to achieve the ideal balance between cooling efficiency and silent operation. By dynamically adjusting the fan curve according to temperature, it ensures that your system remains quiet during low-to-medium usage and effectively cooled when performance demands increase.

Šim produktam ir 84 mēnešu garantija.

Parametri

SummarySeasonic CORE BC-750 ATX 3.1. Total power: 750 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 55 cm, CPU power cable length: 60 cm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Compliance certificates: BSMI, CB, CCC, CE, EAC, REACH, RoHS, UKCA, WEEE, cTUVus, Certification: CE, CB, CCC, cTUVus, TUV, BSMI, EAC, UKCA, Energy Star, RoHS, REACH, WEEE, ErP Lot 6
Ražotājs datu lapahttps://seasonic.com/core-bc/
Vienība kastes augstums0.185
Vienība kastes garums0.114
Vienība kastes platums0.24
Ievades frekvence50/60 Hz
Ieejas spriegums100 - 240 V
Kombinētā jauda (+12V)744 W
Kombinētā jauda (+3,3 V)100 W
Kombinētā jauda (+5Vsb)12.5 W
Kombinētā jauda (-12V)3.6 W
Ieejas strāva11 - 5.5 A
Max izejas strāva (+12V)62 A
Max izejas strāva (+3.3V)20 A
Max izejas strāva (+5V)20 A
Max izejas strāva (+5Vsb)2.5 A
Max izejas strāva (-12V)0.3 A
Barošanas aizsardzība funkcijasOver current/Over power/Over voltage/Short circuit
Kopējais barošanas750 W
ATX barošanas savienotājs (20+4 kontakti)Yes
Kabeļu veidsNon-Modular
Centrālā procesora barošanas kabeļa garums600 mm
Centrālā procesora barošanas savienotājs (4+4 kontakti)Yes
EPS barošanas savienotājs (4+4 kontaktu)Yes
Motherboard barošanas kabeļa garums550 mm
Motherboard barošanas savienotājs20+4 pin ATX
Numurs of SATA barošanas savienotāji6
PCI Express savienotājsYes
PCI Express jauda connectors (6+2 pin)4
Peripheral (Molex) barošanas savienotāji (4-pin)3
80 plus sertifikācija80 PLUS Bronze
Gultņu tehnoloģijaSleeve
Vidējais laiks between failures (MTBF)100000 h
Barošanas barošana vienība (PSU) formas faktorsATX
MērķisPC
Dzesēšanas tipsActive
Ventilatora diametrs120 mm
Ventilatora atrašanās vietaTop
Numurs Of Fans1 fan(s)
On/off slēdzisYes
Produkts krāsaBlack
Darbības temperatūra (T-T)0 - 40 °C
SertifikācijaCE, CB, CCC, cTUVus, TUV, BSMI, EAC, UKCA, Energy Star, RoHS, REACH, WEEE, ErP Lot 6
Atbilstības sertifikātiBSMI/CB/CCC/CE/cTUVus/EAC/REACH/RoHS/UKCA/WEEE
Dziļums140 mm
Augstums86 mm
Platums150 mm
Sustainability certificatesENERGY STAR
Vienības uz palete0
Vienības uz piegāde kastes5
Vienība Calculated skaļums0.00648 cubm
Vienība Calculated svars2.43 kg
