Switch|DAHUA|16xRJ-45 ports|SF1016L

  • Produkta kods: SF1016L
  • EAN: 6923172568601
  • Stāvoklis: Jauns
CenaSkaitsPiegāde

32.78

27.09 € (bez PVN 21%)

6

24.04.

Apraksts

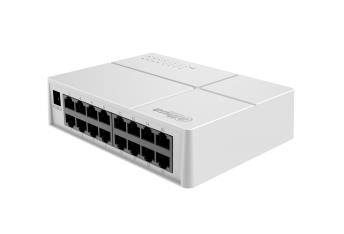

The Device is a layer-2 commercial switch. It has a high-performance switching engine and a large buffer memory to ensure smooth video stream transmission. With a plastic and fanless design, the device provides a more cost-effective option for customers. The Device is an unmanaged switch, so it does not need to be configured through web interface, which simplifies installation.

  • > 16 × RJ-45 10/100 Mbps ports.
  • > Wide operating temperature ranging from –10 °C to +55 °C.
  • > Easy to install, and is plug and play.
  • > Supports wall mount and desktop mount.

Šim produktam ir 36 mēnešu garantija.

Parametri

SummaryDahua Technology SF1016L. Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 16. MAC address table: 8 entries, Switching capacity: 3.2 Gbit/s. Networking standards: IEEE 802.3u, IEEE 802.3x, IEEE 802.3. DC input voltage: 12 V. Form factor: Desktop/Wall-Mounting
Ražotājs datu lapahttps://transmission.dahuasecurity.com/en/product-list/Home/SOHOSwitches/PlasticSwitch/SF1016L
Vienība kastes augstums0.175
Vienība kastes garums0.205
Vienība kastes platums0.09
Slēdzis slānisL2
Slēdzis tipsUnmanaged
Pamata pārslēgšana Rj45 Ethernet porti daudzums16
Pamata pārslēgšana Rj45 Ethernet porti tipsFast Ethernet (10/100)
product_attr.10G_SUPPORTNo
Ethernet LAN datu pārraides ātrums10,100 Mbit/s
Tīklošana standartiIEEE 802.3/IEEE 802.3u/IEEE 802.3x
Pāradresācija ātrums2.38 Mpps
Lieli kadri1520
Lieli kadri atbalstsYes
MAC Address tabula8 entries
Pārslēgšana ietilpība3.2 Gbit/s
Formas faktorsDesktop/Wall-Mounting
Produkts krāsaGrey
product_attr.DC_INPUT_VOLTAGE12 V
Ieejas strāva0.5 A
Barošanas consumption (typical)1.5 W
Barošanas avotsDC
Glabāšana relatīvs mitrums (H-H)10 - 90 %
Glabāšana temperatūra (T-T)-40 - 60 °C
Dziļums120 mm
Augstums42 mm
Svars300 g
Platums160 mm
Iepakojums dziļums180 mm
Iepakojums augstums92 mm
Iepakojums svars600 g
Iepakojums platums207 mm
ModelisSF1016L
Vienības uz palete0
Vienības uz piegāde kastes12
Vienība Calculated skaļums0.004615 cubm
Vienība Calculated svars0.675 kg
