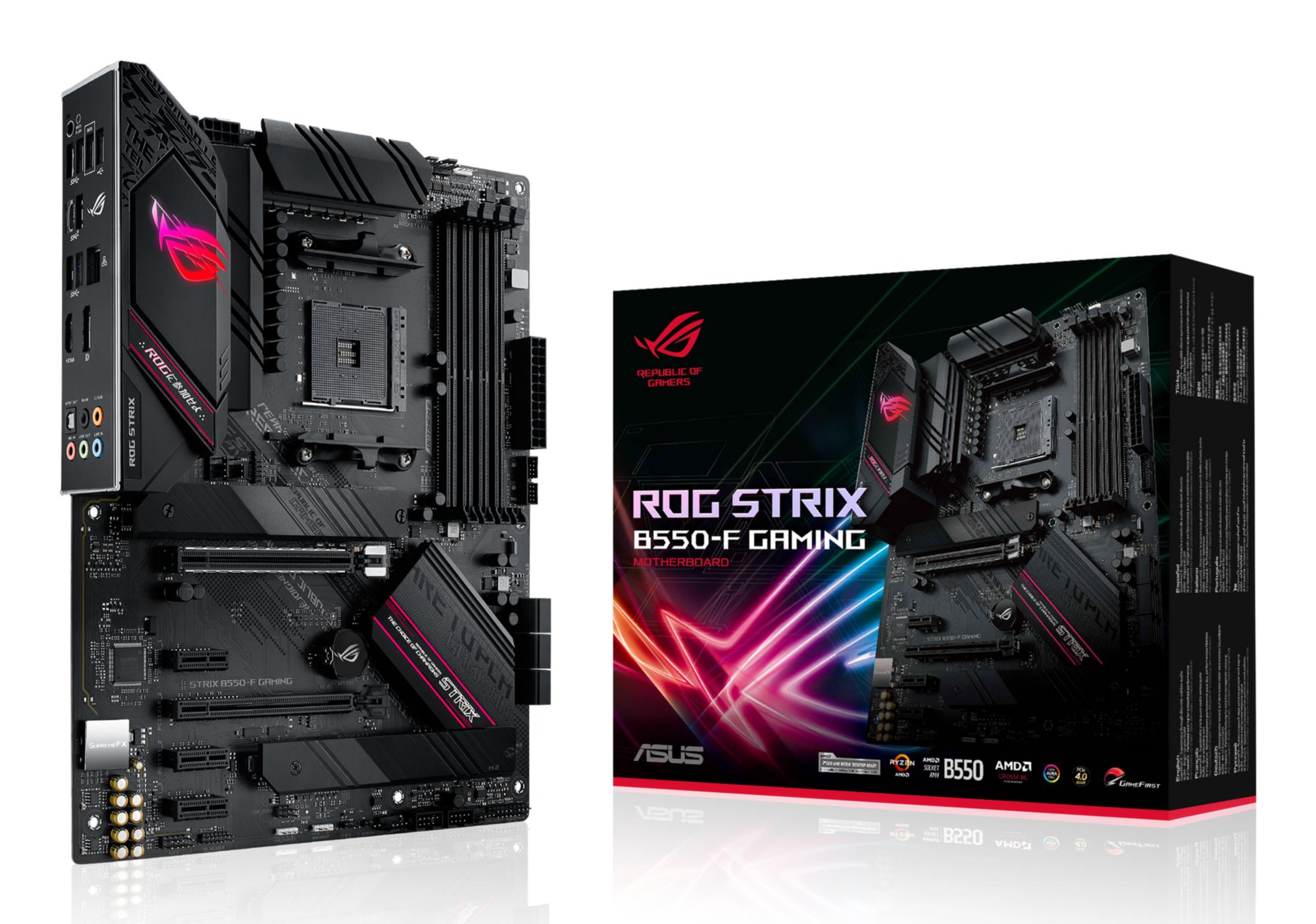

Mainboard|ASUS|AMD B550|SAM4|ATX|3xPCI-Express 3.0 1x|1xPCI-Express 3.0 16x|2xM.2|1xPCI-Express 4.0 16x|Memory DDR4|Memory slots 4|1xHDMI|1xDisplayPort|2xUSB 2.0|1xUSB type C|5xUSB 3.2|1xOptical S/PDIF|1xRJ45|5xAudio port|ROGSTRIXB550-FGAMING

  • Produkta kods: ROGSTRIXB550-FGAMING
  • EAN: 4718017749688
  • Stāvoklis: Jauns
CenaSkaitsPiegāde

178.39

147.43 € (bez PVN 21%)

2

22.09.

Apraksts

Advance Your Gaming Immersion
ROG Strix B550-F Gaming is PCIe® 4.0-ready and provides the latest connectivity options for supersmooth networking and blisteringly fast file transfers. Audio enhancements give you a massive advantage, allowing you to pick up on the subtlest of cues for a completely immersive gaming experience.

PCIe 4.0-Ready
ROG Strix B550-F Gaming features two M.2 slots, one of which supports the latest PCIe 4.0 standard to provide maximum storage flexibility and the fastest data speeds available via the 3rd Gen AMD Ryzen platform. Both M.2 slots support up to the type 22110 socket and NVM Express® RAID for a performance boost.

All-round Performance
ROG Strix B550-F Gaming provides robust power delivery to fuel Ryzen\'s cores, comprehensive cooling, and support for faster memory — so it has everything you need to load up your build with high-performance components for playing in the big leagues.

Play Your Own Style
The cyberpunk-inspired aesthetics of ROG Strix B550-F Gaming are accentuated by the bold slashes and cybertext. By pairing your rig with other products from the diverse ROG ecosystem, you can create a fully customized gaming setup that reflects your personal style.

UNDENIABLY ROG STRIX
ROG Strix B550-F Gaming embodies the ROG spirit with eye-catching aesthetics, including the next-generation distorted ROG eye logo and recessed cybertext patterning etched on the I/O shroud. These new designs move ROG Strix boldly into the future, while clearly reflecting the series\' gaming roots.

ROG Gives You More
ROG-exclusive software utilities deliver intuitive audio tuning and gaming enhancements that allow you to configure your gaming build the way you want.

UEFI BIOS
The renowned ROG UEFI (BIOS) provides everything you need to configure, tweak, and tune your rig. It offers intelligently simplified options for newcomers to PC DIY, as well as comprehensive features for seasoned veterans.

  • AMD AM4 socket: Ready for Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
  • Best gaming connectivity: PCIe® 4.0-ready, dual M.2, USB 3.2 Gen 2 Type-C® plus HDMI™ 2.1 and DisplayPort 1.2 output support
  • Smooth networking: Intel® 2.5Gb Ethernet with ASUS LANGuard
  • Robust power solution: Teamed power stages with ProCool power connector, high-quality alloy chokes and durable capacitors
  • Renowned software: Intuitive dashboards for UEFI BIOS and ASUS AI Networking make it easy to configure gaming builds
  • DIY-friendly design: Includes pre-mounted I/O shield, BIOS FlashBack™, Q-LEDs and SafeSlot
  • Unmatched personalization: ASUS-exclusive Aura Sync RGB lighting, including Aura RGB headers and Addressable Gen 2 RGB header
  • Industry-leading gaming audio: AI Noise-Canceling Microphone, SupremeFX S1220A codec, DTS® Sound Unbound™ and Sonic Studio III for immersive audio

Šim produktam ir 36 mēnešu garantija.

Parametri

KopsavilkumsASUS ROG STRIX B550-F GAMING. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Parallel processing technology support: 2-Way CrossFireX. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Intel I225-V
Ražotāja datu lapahttps://www.asus.com/Motherboards/ROG-STRIX-B550-F-GAMING
Vienības kastes augstums0.07
Vienības kastes garums0.34
Vienības kastes platums0.275
Mātesplates mikroshēmu komplektsAMD B550
Produkta krāsaBlack
PC veselības uzraudzībaCPU/Fan
KomponentsPC
Mātesplates formas faktorsATX
Audio izvades kanāli7.1 channels
Dzesēšanas tipsActive
Mātesplates mikroshēmu komplekta saimeAMD
Barošanas avota tipsATX
Atbalstītās Windows operētājsistēmasWindows 10/Windows 10 Education/Windows 10 Education x64/Windows 10 Enterprise/Windows 10 Enterprise x64/Windows 10 Home/Windows 10 Home x64/Windows 10 IOT Core/Windows 10 IoT Enterprise/Windows 10 Pro/Windows 10 Pro x64/Windows 10 x64
Procesora ražotājsAMD
Procesora ligzdaSocket AM4
Saderīgo procesoru sērijaAMD Ryzen 3000 Series
Maksimālais SMP procesoru skaits1
Atbalstītās procesora ligzdasSocket AM4
Atbalstītie atmiņas tipiDDR4-SDRAM
Atmiņas slotu skaits4
Atmiņas slotu tipsDIMM
Atbalstītie atmiņas takts ātrumi2133/2400/2666/2800/3000/3200/3466/3600/3866/4000/4133/4400/4600 MHz
Maksimālā iekšējā atmiņa128 GB
Atbalstītie krātuves disku tipiHDD & SSD
Atbalstītās glabāšanas disku saskarnesM.2,SATA III
Atbalstīto HDD skaits6
RAID atbalstsYes
RAID līmeņi0/1/10
Paralēlās apstrādes tehnoloģijas atbalsts2-Way CrossFireX
Iebūvētā grafikas karteNo
USB 2.0 savienotāji2
USB 3.2 Gen 1 (3.1 Gen 1) savienotāji1
USB 3.2 Gen 2 (3.1 Gen 2) savienotāji1
SATA III savienotāju skaits6
EATX barošanas savienotāju skaits1
CPU ventilatora savienotājsYes
Šasijas ventilatoru savienotāju skaits3
EPS barošanas savienotājs (8 kontaktu)Yes
12V jaudas savienotājsYes
Thunderbolt savienotāji1
USB 2.0 portu skaits2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A portu skaits4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A portu skaits1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C portu skaits1
Ethernet LAN (RJ-45) pieslēgvietas1
HDMI portu skaits1
HDMI versija2.1
DisplayPort pieslēgvietu skaits1
DisplayPort versija1.2
Austiņu izejas1
Mikrofona ieejaYes
S/PDIF izejas portsYes
Ethernet/LANYes
Ethernet saskarnes tips2.5 Gigabit Ethernet
LAN kontrollerisIntel I225-V
Wake-on-LAN gatavsYes
Wi-FiNo
BluetoothYes
Bluetooth versija5.0
PCI Express x1 (Gen 3.x) sloti3
PCI Express x16 (Gen 3.x) sloti1
PCI Express x16 (Gen 4.x) sloti1
PCI Express slotu versija3.0/4.0
PCI sloti7
M.2 M slotu skaits2
BIOS tipsUEFI AMI
BIOS atmiņas izmērs256000 Mbit
Harmonizētās sistēmas (HS) kods84733020
Platums305 mm
Dziļums244 mm
Augstums68 mm
Komplektā iekļauti kabeļiSATA
ManuālsYes
Iekļauti draiveriYes
Svars945 g
Vienības aprēķinātais svars1.87 kg
Produkta neto svars1.5 kg
Vienības aprēķinātais tilpums0.008323 cubm
Vienības piegādes kastē4
Kastes svars7.46000003814697 kg
product_attr.UNIT_WIDTH27.5 cm
Vienības paletē0
Kastes augstums30.5 cm
product_attr.UNIT_DEPTH34 cm
Kastes dziļums37 cm
product_attr.UNIT_HEIGHT7 cm
Kastes platums29.5 cm
NosaukumsMB AMD B550 SAM4 ATX/ROG STRIX B550-F GAMING ASUS
