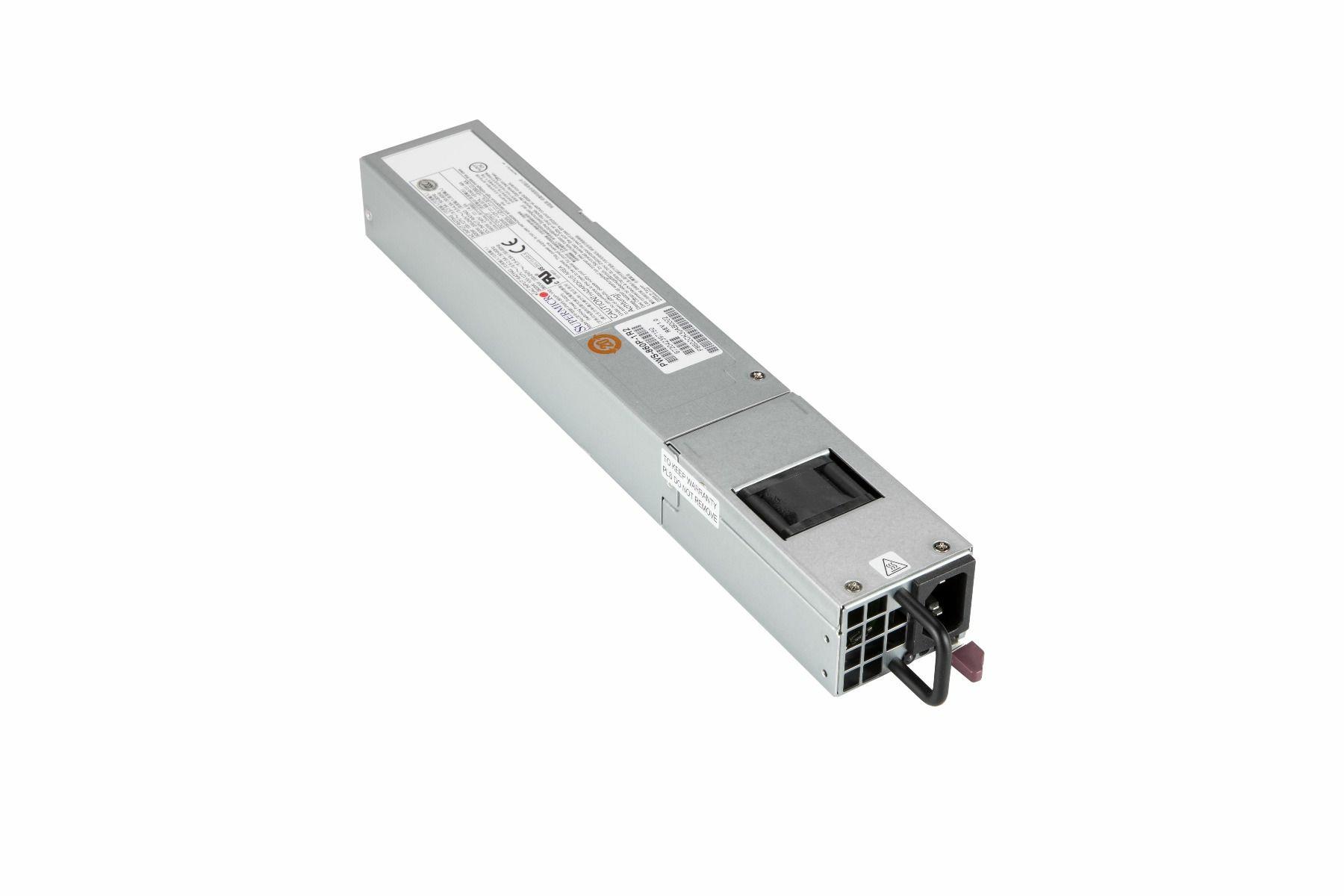

SERVER ACC PSU 860W REDUNDANT/PWS-860P-1R2 SUPERMICRO

  • Produkta kods: PWS-860P-1R2
  • Stāvoklis: Jauns
CenaSkaitsPiegāde

248.65

205.67 € (bez PVN 21%)

4

23.07.

Apraksts

The Supermicro PWS-860P-1R2 is an 80 Plus Platinum level redundant power supply capable of continuously supplying 800W/860W output power at 94% efficiency. Enjoy the simplicity of active power factor correction (PFC) and automatically correct AC input for a full range of voltages. Features a card edge output to interface with a 2x25 card edge connector. This power supply is designed to not only provide you reliable power to your Supermicro server but also protects it from over voltage, over current and short circuiting via protective circuitry embedded into the unit. Rest easy knowing your hardware will be up and running with a mean-time between failure (MTBF) of greater than 250,000 hours and an LED indicator to keep you informed on normal/abnormal conditions for your PSU. This power supply is redundant to safe-guard your system from power failure and allows for hot-swap replacement to eliminate system downtime. All materials contained comply with RoHS requirements and is certified by Supermicro.

Šim produktam ir 12 mēnešu garantija.

Parametri

KopsavilkumsSupermicro PWS-860P-1R2. Total power: 860 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Purpose: Server, Power supply unit (PSU) form factor: 1U, 80 PLUS certification: 80 PLUS Platinum. Compliance certificates: REACH, RoHS. Width: 54.5 mm, Depth: 40.2 mm, Height: 322 mm
Ražotāja datu lapahttps://store.supermicro.com/us_en/800w-1u-pws-860p-1r2.html
Vienības kastes augstums0.12
Vienības kastes garums0.4
Vienības kastes platums0.13
Maiņstrāvas ieejas frekvence50/60 Hz
Maiņstrāvas ieejas spriegums100 - 240 V
Efektivitāte94 %
Kopējā jauda860 W
80 Plus sertifikācija80 PLUS Platinum
Vidējais laiks starp atteicēm (MTBF)250000 h
Barošanas bloka (PSU) formas faktors1U
MērķisServer
LED indikatoriYes
Atbilstības sertifikātiREACH/RoHS
Dziļums40.25 mm
Augstums322 mm
Platums54.5 mm
ModelisPWS-860P-1R2
Modeļa nosaukumsPWS-860P-1R2
Vienības piegādes kastē1
Vienības aprēķinātais tilpums0.00624 cubm
Vienības aprēķinātais svars1.12 kg
