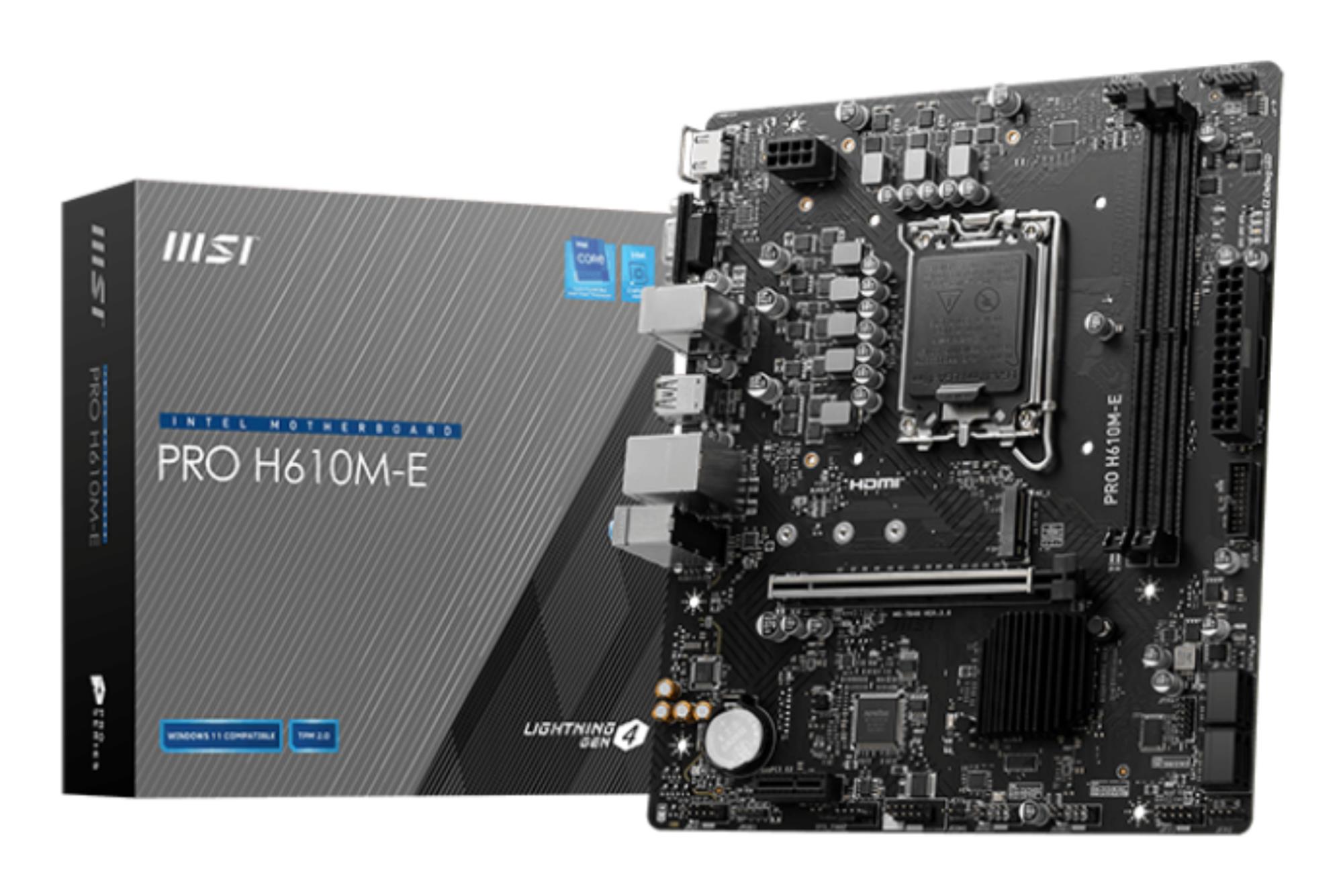

Mainboard|MSI|Intel H610|LGA1700|Micro-ATX|Memory DDR5|Memory slots 2|1xPCI-Express 1x|1xPCI-Express 16x|1xM.2|1x15pin D-sub|1xHDMI|4xUSB 2.0|2xUSB 3.2|1xPS/2|1xRJ45|3xAudio port|PROH610M-E

  • Produkta kods: PROH610M-E
  • EAN: 4711377125147
  • Stāvoklis: Jauns
CenaSkaitsPiegāde

96.06

79.56 € (bez PVN 21%)

30

22.07.

Apraksts

PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.

FULLY CONTROLLABLE IN BIOS AND SOFTWARE
MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.

LOW LATENCY GAMING LAN POWERED BY INTEL®
Stay connected with Intel® LAN, optimized for stable internet throughput ideal for championship level online plays.

LIGHTNING GEN 4 PCI-E
MSI lightning Gen 4 PCI-E is the latest and the fastest PCI-E data transfer solution with 64GB/s of transfer bandwidth that has doubled compared to its previous generation. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications. Optimized by steel armor design, your motherboards can support the weight of heavy graphics cards.

  • Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
  • Supports DDR5 Memory, up to 5600(MAX) MHz
  • Core Boost : With premium layout and digital power design to support more cores and provide better performance
  • Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
  • Lightning Fast Experience: PCIe 4.0
  • Audio Boost: Reward your ears with studio grade sound quality
  • Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength

Šim produktam ir 36 mēnešu garantija.

Parametri

KopsavilkumsMSI PRO H610M-E. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel Pentium G. Supported memory types: DDR5-SDRAM, Maximum internal memory: 96 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel
Ražotāja datu lapahttps://www.msi.com/Motherboard/PRO-H610M-E/Overview
CN kods84733020
Vienības kastes augstums0.057
Vienības kastes garums0.26
Vienības kastes platums0.26
Audio izvades kanāli7.1 channels
KomponentsPC
Dzesēšanas tipsActive
Mātesplates mikroshēmu komplektsIntel H610
Mātesplates mikroshēmu komplekta saimeIntel
Mātesplates formas faktorsmicro ATX
Barošanas avota tipsATX
Atbalstītās Windows operētājsistēmasWindows 10/Windows 11
Saderīgo procesoru sērijaIntel Pentium G/Intel® Celeron®/Intel® Core™ i3/Intel® Core™ i5/Intel® Core™ i7/Intel® Core™ i9
Procesora ražotājsIntel
Procesora ligzdaLGA 1700
Atbalstītās procesora ligzdasLGA 1700
ECC saderībaNon-ECC
Maksimālā iekšējā atmiņa96 GB
Atmiņas kanāliDual-channel
Atmiņas slotu tipsDIMM
Atmiņas slotu skaits4
Atbalstītie atmiņas takts ātrumi5600 MHz
Atbalstītās atmiņas moduļu ietilpības16GB/32GB/4GB/8GB
Atbalstītie atmiņas tipiDDR5-SDRAM
RAID līmeņi0/1/10/5
RAID atbalstsYes
Atbalstītās glabāšanas disku saskarnesM.2,SATA III
Atbalstītie krātuves disku tipiHDD & SSD
ATX barošanas savienotājs (24 kontaktu)Yes
Audio savienotājsYes
CPU ventilatora savienotājsYes
EPS barošanas savienotājs (8 kontaktu)Yes
Priekšējā paneļa audio savienotājsYes
Šasijas ventilatoru savienotāju skaits2
COM savienotāju skaits2
SATA III savienotāju skaits4
Thunderbolt savienotāji2
USB 2.0 savienotāji4
USB 3.2 Gen 1 (3.1 Gen 1) savienotāji2
Ethernet LAN (RJ-45) pieslēgvietas1
HDMI portu skaits1
HDMI versija1.4
Austiņu izejas2
Mikrofona ieejaYes
PS/2 portu daudzums1
USB 2.0 portu skaits4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A portu skaits2
VGA (D-Sub) portu skaits1
Ethernet saskarnes tips2.5 Gigabit Ethernet
Ethernet/LANYes
Wi-FiNo
PCI Express x1 (Gen 3.x) sloti2
PCI Express x16 (Gen 4.x) sloti1
ACPI versija6.4
BIOS atmiņas izmērs256 Mbit
BIOS tipsUEFI AMI
Dziļums236.16 mm
Platums200 mm
Komplektā iekļauti kabeļiSATA
Iekļauti draiveriYes
ModelisPRO H610M-E
Vienības piegādes kastē20
Vienības aprēķinātais tilpums0.004739 cubm
Vienības aprēķinātais svars0.8 kg
