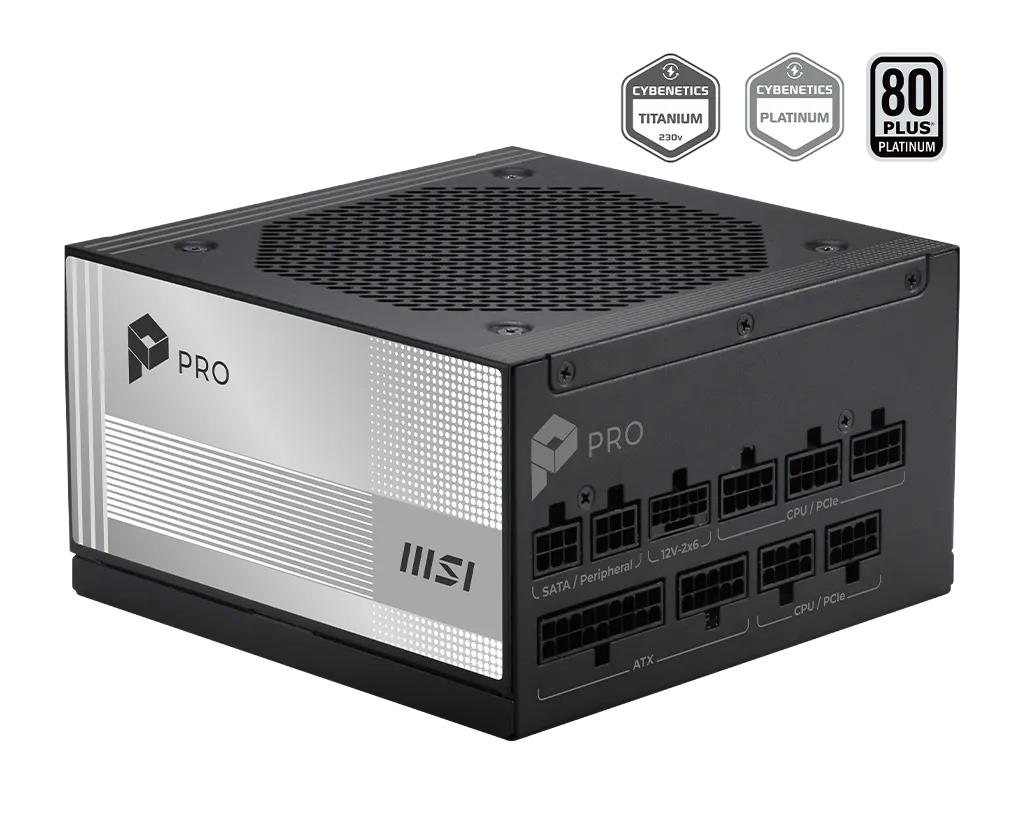

Power Supply|MSI|PRO A850PL PCIE5|ATX|PC|100 - 240 V|850 W|PROA850PLPCIE5

  • Produkta kods: PRO A850PL PCIE5
  • EAN: 4711377383639
  • Stāvoklis: Jauns
CenaSkaitsPiegāde

171.82

142.17 € (bez PVN 21%)

0

Paredzamā pieejamība:29.07.2026.

Apraksts

The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.

Ultimate Proof PSU
It has an output port that is compliant with Intel PSDG (Power Supply Design Guide) ATX 3.1,the power supply can hold up to 2x total power excursion and 3x GPU power excursion.

Reliable Connector Design
The power supply features the 12V-2x6 (H++) connector, design with an optimized structure that complies with the PCIe CEM 5.1standard. The ensures enhanced reliability and safety. It is capable of delivering up to 450W of power, making it suitable for even the most demanding high-end graphics cards.

GPU compatibility
Versatile ways of connection according to the power connector design of different graphics cards.

Platinum Efficiency Certification
The efficiency of your power supply significantly impacts overall power consumption. The Platinum certification stands out as a reliable benchmark for energy efficiency, ensuring that your power supply delivers lower energy consumption and operates at higher efficiency levels.

105°C Main Capacitor
Aiming for superior product quality and performance stability, this power supply features 105°C main capacitors for long-term use reliability.

Built for Maximum Safety
The power supply\'s cables, from the internal copper wires to the external high-density braided cover, are fully UL certified, ensuring superior safety and durability.

  • ATX 3.1 Ready
  • PCIe 5.1 Ready (600W)
  • 105°C Main Electrolytic Capacitor
  • 80 PLUS Platinum Certification
  • Embossed Jacket Certified Cables
  • Industrial level protection with OCP, OTP, OPP, SCP, OVP, UVP, SIP, NLO

Šim produktam ir 24 mēnešu garantija.

Parametri

KopsavilkumsMSI PRO A850PL PCIE5. Total power: 850 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, Cabling type: Fully-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Platinum. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 150 mm, Height: 86 mm
Ražotāja datu lapahttps://www.msi.com/Power-Supply/PRO-A850PL-PCIE5
Maiņstrāvas ieejas frekvence50/60 Hz
Maiņstrāvas ieejas spriegums100 - 240 V
Kombinētā jauda (+12V)849.6 W
Kombinētā jauda (+3,3 V)100 W
Kombinētā jauda (+5V)100 W
Kombinētā jauda (+5Vsb)12.5 W
Kombinētā jauda (-12V)3.6 W
Maksimālā izejas strāva (+12V)70.8 A
Maksimālā izejas strāva (+3.3V)20 A
Maksimālā izejas strāva (+5V)20 A
Maksimālā izejas strāva (+5VSB)2.5 A
Maksimālā izejas strāva (-12V)0.3 A
Jaudas koeficienta korekcijas (PFC) tipsActive
Kopējā jauda850 W
ATX barošanas savienotājs (20+4 kontaktu)Yes
ATX barošanas savienotājs (24 kontaktu)No
Kabeļu veidsFully-Modular
Centrālā procesora barošanas savienotājs (4+4 kontakti)Yes
EPS barošanas savienotājs (4+4 kontaktu)Yes
Diskešu diskdziņa savienotājsNo
Mātesplates barošanas kabeļa garums600 mm
Mātesplates barošanas savienotājs20+4 pin ATX
SATA barošanas savienotāju skaits6
PCI Express barošanas savienotāji (6+2 pin)3
Peripheral (Molex) barošanas savienotāji (4 pin)2
80 Plus sertifikācija80 PLUS Platinum
Barošanas bloka (PSU) formas faktorsATX
MērķisPC
Dzesēšanas tipsActive
Ventilatora diametrs120 mm
Ventilatoru skaits1 fan(s)
Ieslēgšanas/izslēgšanas slēdzisYes
Produkta krāsaBlack
Dziļums150 mm
Augstums86 mm
Platums150 mm
Modeļa nosaukumsPRO A850PL PCIE5
Vienības aprēķinātais tilpums0.006554 cubm
Vienības aprēķinātais svars2.85 kg
