Mainboard|ASUS|Intel B760 Express|LGA1700|Micro-ATX|Memory DDR5|Memory slots 2|2xPCI-Express 4.0 1x|1xPCI-Express 4.0 16x|2xM.2|1x15pin D-sub|1xHDMI|2xUSB 2.0|4xUSB 3.2|1xPS/2|1xRJ45|3xAudio port|PRIMEB760M-K

  • Produkta kods: PRIMEB760M-K
  • EAN: 4711387198506
  • Stāvoklis: Jauns
CenaSkaitsPiegāde

99.53

82.43 € (bez PVN 21%)

0

Paredzamā pieejamība:26.08.2026.

Apraksts

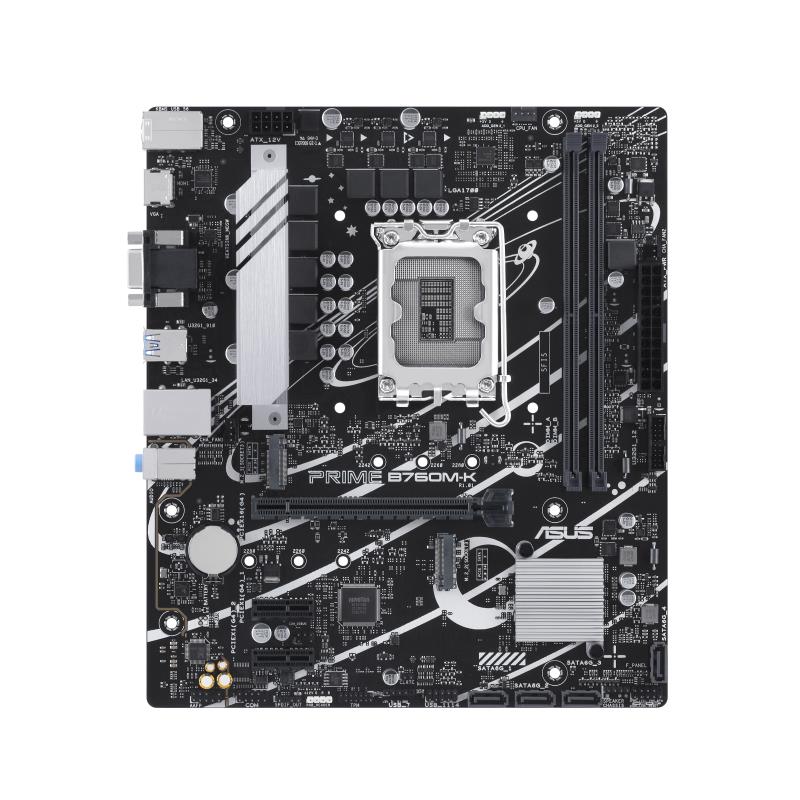

B760M-K
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel® Core™ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B760M-K provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.

FLEXIBILITY
Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME B760 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.

Intelligent Control
ASUS Intelligent Control makes your PC smart. Along with taking care of complex tuning and dynamically optimizing essential aspects of your system, it offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.

All-Around Energy Efficiency
The Power Saving function contains several settings can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.

  • Intel® LGA 1700 Socket: Ready for 13th and 12th Gen Intel® processors
  • Ultrafast Connectivity: PCIe 4.0, two PCIe 4.0 M.2 slots, Realtek 2.5Gb Ethernet and front USB 3.2 Gen 1 support
  • Comprehensive Cooling: VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
  • Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware

Šim produktam ir 36 mēnešu garantija.

Parametri

KopsavilkumsASUS PRIME B760M-K. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 96 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel
Ražotāja datu lapahttps://www.asus.com/motherboards-components/motherboards/prime/prime-b760m-k/
CN kods84733020
Vienības kastes augstums0.055
Vienības kastes garums0.275
Vienības kastes platums0.265
Audio izvades kanāli7.1 channels
KomponentsPC
Mātesplates mikroshēmu komplektsIntel B760
Mātesplates mikroshēmu komplekta saimeIntel
Mātesplates formas faktorsmicro ATX
Atbalstītās Windows operētājsistēmasWindows 10 x64/Windows 11
Saderīgo procesoru sērijaIntel® Celeron®/Intel® Core™ i3/Intel® Core™ i5/Intel® Core™ i7/Intel® Core™ i9/Intel® Pentium® Gold
Maksimālais SMP procesoru skaits1
Procesora ražotājsIntel
Procesora ligzdaLGA 1700
Atbalstītās procesora ligzdasLGA 1700
ECC saderībaNon-ECC
Maksimālā iekšējā atmiņa96 GB
Atmiņas kanāliDual-channel
Atmiņas slotu tipsDIMM
Atmiņas slotu skaits2
Maksimālais atbalstītais atmiņas takts ātrums8000 MHz
Atbalstītie atmiņas takts ātrumi4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600/7800/8000 MHz
Atbalstītie atmiņas tipiDDR5-SDRAM
Nebuferēta atmiņaYes
Atbalstīto HDD skaits4
Atbalstīto krātuves disku skaits6
RAID līmeņi0/1/10/5
RAID atbalstsYes
Atbalstītās glabāšanas disku saskarnesM.2,SATA III
Atbalstītie krātuves disku tipiHDD & SSD
Paralēlās apstrādes tehnoloģijas atbalstsNot supported
12V jaudas savienotājsYes
ATX barošanas savienotājs (24 kontaktu)Yes
CPU ventilatora savienotājsYes
EPS barošanas savienotājs (8 kontaktu)Yes
Priekšējā paneļa audio savienotājsYes
Šasijas ventilatoru savienotāju skaits1
COM savienotāju skaits1
SATA III savienotāju skaits4
RGB LED kontaktrindaYes
S/PDIF izejas savienotājsYes
TPM savienotājsYes
USB 2.0 savienotāji2
USB 3.2 Gen 1 (3.1 Gen 1) savienotāji1
Ethernet LAN (RJ-45) pieslēgvietas1
HDMI portu skaits1
PS/2 portu daudzums1
S/PDIF izejas portsYes
USB 2.0 portu skaits2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A portu skaits4
VGA (D-Sub) portu skaits1
Ethernet saskarnes tips2.5 Gigabit Ethernet
Ethernet/LANYes
Wi-FiNo
M.2 M slotu skaits2
PCI Express x1 (Gen 4.x) sloti2
PCI Express x16 (Gen 4.x) sloti1
BIOS atmiņas izmērs128 Mbit
BIOS tipsUEFI AMI
Iepakojuma dziļums263 mm
Iepakojuma augstums51.5 mm
Iepakojuma svars1015 g
Iepakojuma platums270 mm
Dziļums211 mm
Platums244 mm
Komplektā iekļauti kabeļiSATA
ModelisPRIME B760M-K
Vienības piegādes kastē10
Vienības aprēķinātais tilpums0.004834 cubm
Vienības aprēķinātais svars1.02 kg
