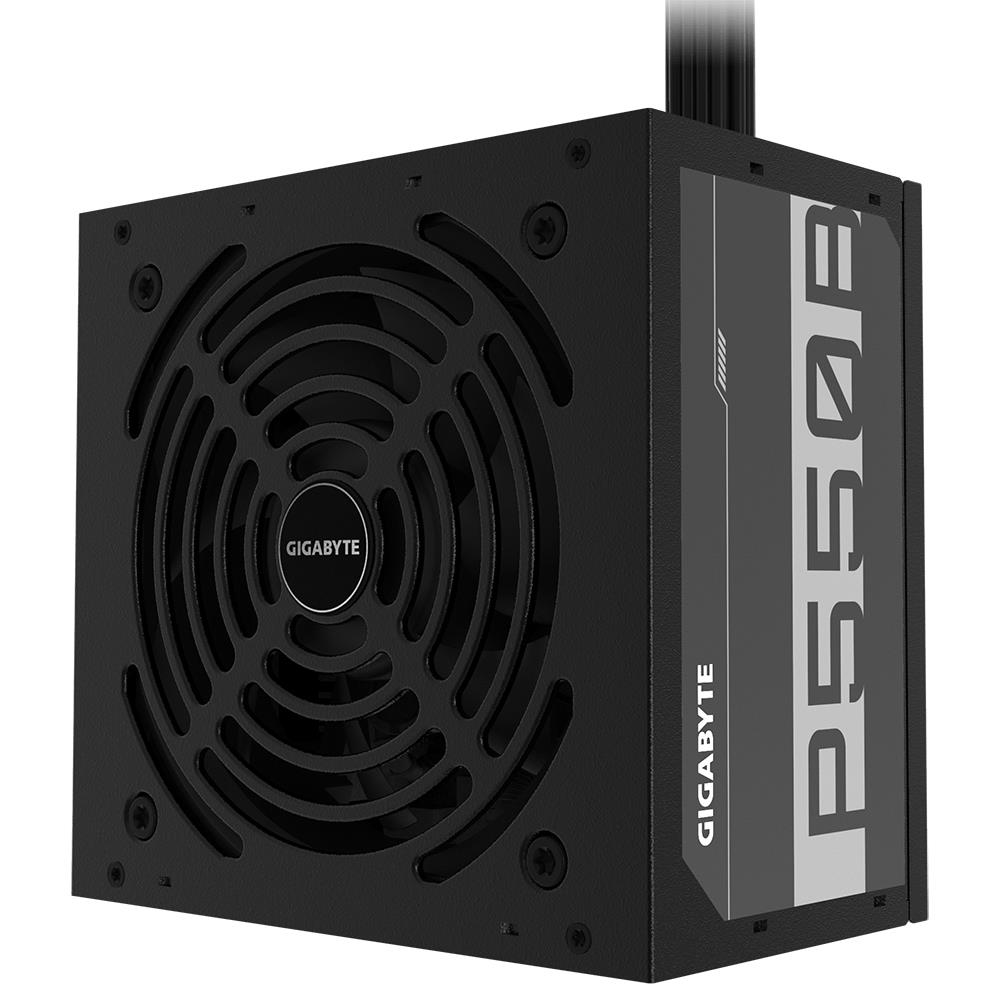

Power Supply|GIGABYTE|550 Watts|Efficiency 80 PLUS BRONZE|PFC Active|MTBF 100000 hours|P550B

  • Produkta kods: P550B
  • EAN: 4719331551490
  • Stāvoklis: Jauns
CenaSkaitsPiegāde

51.29

42.39 € (bez PVN 21%)

4

23.04.

Apraksts

80 PLUS BRONZE CERTIFIED
80 Plus Bronze certified ensures to deliver 85% efficiency at 50% load. The better power efficiency leads to less power waste, less heat and less fan noise.

Reliable Flat Cable
P550B provides the best solution for the system builds. The flat cable reduces the clutter and improves the airflow in the case.

120mm Silent Hydraulic Bearing (HYB) Fan
120mm Silent Hydraulic Bearing fan optimizes the noise reduction and the thermal performance. The fan speed is adjusted according to the automatic power detection. The Hydraulic Bearing fan provides longer and more stable life time.

SINGLE +12V RAIL
Single +12V rail provides the best power output, stability and compatibility for the hardware. It provides the easiest way to install the power cable. And it is the best design for overclocking.

PROTECTION
In order to make sure the entire computer system to operate stably under any conditions, we not only added protection designs such as OCP, OTP, OVP, OPP, UVP and SCP, but also ensured the stable operation of your system through the safety certification of various countries.

  • 80 PLUS Bronze certified
  • 120mm Silent Hydraulic Bearing (HYB) Fan
  • Reliable flat cable
  • Single +12V rail
  • OVP/OPP/SCP/UVP/OCP/OTP protection

Šim produktam ir 36 mēnešu garantija.

Parametri

SummaryGIGABYTE P550B. Total power: 550 W, AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 55 cm, SATA power cable length: 500 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm
Ražotājs datu lapahttps://www.gigabyte.com/Power-Supply/GP-P550B/sp#sp
CnCode85044095
Vienība kastes augstums0.12
Vienība kastes garums0.26
Vienība kastes platums0.21
Ievades frekvence50 - 60 Hz
Ieejas spriegums100 - 240 V
Kombinētā jauda (+12V)522 W
Kombinētā jauda (+3,3 V)108 W
Kombinētā jauda (+5V)108 W
Kombinētā jauda (+5Vsb)15 W
Kombinētā jauda (-12V)3.6 W
Efektivitāte85 %
Aizturēšanas laiks16 ms
Ieejas strāva8 - 4 A
Max izejas strāva (+12V)43.5 A
Max izejas strāva (+3.3V)18 A
Max izejas strāva (+5V)15 A
Max izejas strāva (+5Vsb)3 A
Max izejas strāva (-12V)0.3 A
Barošanas faktors0.9
Barošanas faktors korekcija (PFC) tipsActive
Barošanas aizsardzība funkcijasOver current/Over power/Over voltage/Overheating/Short circuit/Under voltage
Kopējais barošanas550 W
ATX barošanas savienotājs (20+4 kontakti)Yes
Kabeļu veidsNon-Modular
Centrālā procesora barošanas kabeļa garums600 mm
Centrālā procesora barošanas savienotājs (4+4 kontakti)Yes
Diskešu diskdziņa savienotājsYes
Diskešu diskdziņa barošanas savienotājs1
Motherboard barošanas kabeļa garums550 mm
Motherboard barošanas savienotājs20+4 pin ATX
Numurs of SATA barošanas savienotāji6
PCI Express savienotājsYes
PCI Express jauda kabelis garums550 mm
PCI Express jauda connectors (6+2 pin)2
Peripheral (Molex) barošanas kabeļa garums500 mm
Peripheral (Molex) barošanas savienotāji (4-pin)3
SATA jauda kabelis garums500 mm
80 plus sertifikācija80 PLUS Bronze
ATX versija2.31
Gultņu tehnoloģijaHDB
Vidējais laiks between failures (MTBF)100000 h
Barošanas barošana vienība (PSU) formas faktorsATX
MērķisPC
Dzesēšanas tipsActive
Ventilatora diametrs120 mm
Ventilatora atrašanās vietaTop
Numurs Of Fans1 fan(s)
On/off slēdzisYes
Produkts krāsaBlack
Dziļums140 mm
Augstums86 mm
Platums150 mm
Harmonizētās sistēmas (HS) kods84733020
Modelis NosaukumsP550B
Vienības uz piegāde kastes10
Vienība Calculated skaļums0.008447 cubm
Vienība Calculated svars2.19 kg
