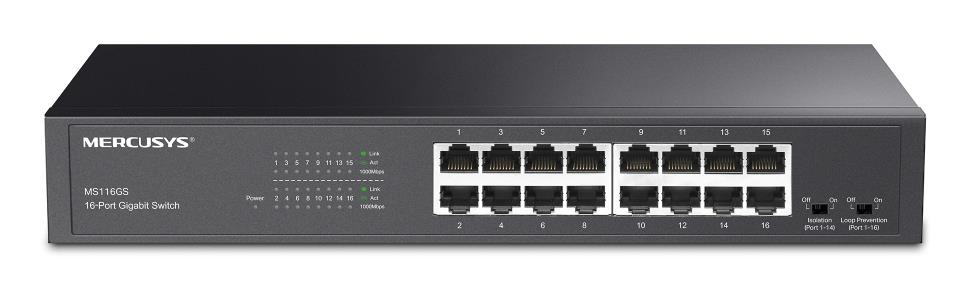

Switch|MERCUSYS|MS116GS|16x10Base-T / 100Base-TX / 1000Base-T|MS116GS

  • Produkta kods: MS116GS
  • EAN: 6957939002343
  • Stāvoklis: Jauns
CenaSkaitsPiegāde

48.12

39.77 € (bez PVN 21%)

4

26.05.

Apraksts

Connect More with 16 Gigabit Ports
Quickly expand your wired network with sixteen 10/100/1000 Mbps Ethernet ports—10 times faster than regular 10/100 Mbps Ethernet ports. MS116GS offers flexible connectivity and is fully compatible with 4K UHD TVs, computers, printers, IP cameras, game consoles, and more.

One-Click Traffic Separation
With one click, Isolation Mode easily divides traffic for ports 1–14 to avoid snooping and tampering. This enables the switch to isolate broadcast storm, improving LAN security and data transmission.

Prevent Network Loops
Automatically detect loops and block the corresponding port while the power and port indicator flash slowly to alert. Easy to monitor and address loop-related issues within your network.

Durable, Silent, and Flexible
MS116GS’s durable metal case allows for efficient heat dissipation, excellent signal interference prevention, reliable equipment stability, and a long network life. And you can put the switch on desk or rack mount to meet your demand.

Plug and Play
Forget about complicated installation. Just connect the switch to your TV or computer via an Ethernet cable to immediately expand your wired network. No configuration is required.

Reliable Performance
With a non-blocking switching design, MS116GS enables packets to be forwarded and filtered at the full capacity of the wired connection. MS116GS incorporates IEEE 802.3x flow control for Full Duplex operation and backpressure mechanisms for Half Duplex, effectively managing traffic congestion and ensuring reliable performance.

Go Green with Your Ethernet
You now have the choice to go green when upgrading to a gigabit network! MS116GS features the latest innovative energy-efficient technologies to greatly expand your network capacity with much less power. It automatically adjusts power consumption to limit the carbon footprint of your network.

  • Full Gigabit Ports: 16× 10/100/1000 Mbps Auto-Negotiation RJ45 port supporting Auto-MDI/MDIX
  • Plug and Play: Simple to use and saves time and effort
  • Isolation Mode: Isolation Mode allows one-click client traffic separation for higher security and performance
  • Loop Prevention: Monitor and address loop-related issues within your network structure to prevent disruptions caused by looping
  • Durable Metal Casing: Allows for efficient heat dissipation and long network life

Šim produktam ir 36 mēnešu garantija.

Parametri

SummaryMercusys MS116GS. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. MAC address table: 8000 entries, Switching capacity: 32 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x. Rack mounting
Ražotājs datu lapahttps://www.mercusys.com/en/product/details/ms116gs/
Vienība kastes augstums0.235
Vienība kastes garums0.34
Vienība kastes platums0.08
Pamata pārslēgšana Rj45 Ethernet porti daudzums16
Pamata pārslēgšana Rj45 Ethernet porti tipsGigabit Ethernet (10/100/1000)
Automātiskā Mdi Mdi XYes
Plūsmas vadība atbalstsYes
Tīklošana standartiIEEE 802.1p/IEEE 802.3ab/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x
MAC Address tabula8000 entries
Pārslēgšana ietilpība32 Gbit/s
product_attr.LOOP_PROTECTIONYes
LED indikatoriActivity/Link/Power
Produkts krāsaBlack
Statīva montāžaYes
Ievades frekvence50/60 Hz
Ieejas spriegums100 - 240 V
Barošanas avotsAC
Barošanas pāri Ethernet POENo
Darbības relatīvs mitrums (H-H)10 - 90 %
Darbības temperatūra (T-T)0 - 40 °C
Glabāšana relatīvs mitrums (H-H)5 - 90 %
Glabāšana temperatūra (T-T)-40 - 70 °C
Dziļums140 mm
Augstums44 mm
Platums294 mm
Modelis NosaukumsMS116GS
Vienības uz piegāde kastes1
Vienība Calculated skaļums0.006392 cubm
Vienība Calculated svars1.79 kg
