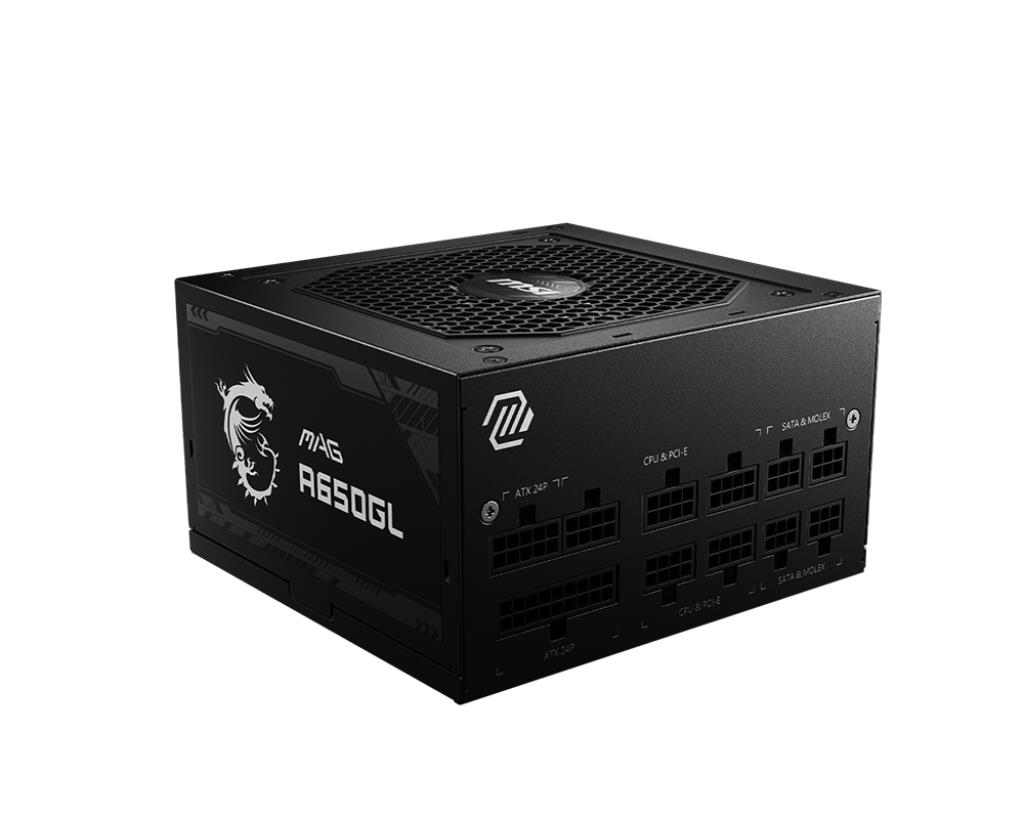

Power Supply|MSI|650 Watts|Efficiency 80 PLUS GOLD|PFC Active|MTBF 1500000 hours|MAGA650GL

  • Produkta kods: MAGA650GL
  • EAN: 4711377084277
  • Stāvoklis: Jauns
CenaSkaitsPiegāde

100.71

83.23 € (bez PVN 21%)

1

25.05.

Apraksts

The MAG series fights alongside gamers in pursuit of honor.
With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.

80 PLUS GOLD CERTIFIED
The efficiency of your power supply directly influences your system’s performance and your power consumption. The 80 PLUS Gold certification promises lower energy consumption and higher efficiency.

COMPACT SIZING
Smaller than typical PSUs on the market, this power supply unit that can save space and make it easier to organize cables in the computer case by freeing up more room inside.

ONLY WHAT YOU NEED
The connectors that required by the build need to be used, significantly reducing cable clutter and simplifying the system’s overall build. Additionally, the included cable pack provides a storage solution for any unused cables.

ALL THE MORE ORGANIZED
Organizing cables is often the most bothersome part of building a PC. The flat cables make cable management easier and less of headache! Thanks to the flat cables, the entire system can be more organized and has more room for unobstructed airflow.

FLUID DYNAMIC BEARING
The power supply’s fan sports a fluid dynamic bearing that perfectly balances cooling performance and noise level.

DC TO DC & FULL BRIDGE
DC to DC and Full bridge be combined to achieve higher conversion efficiency, stable output voltage, and quick voltage adjustment for different usage scenarios, thus providing a stable power supply design.

THE POWER YOU HAVE
The single rail supply of power can properly deliver the power you need. For high-performance graphics cards and CPUs, this power supply\'s 5 CPU & PCI-E slots are more than plenty.

PROTECTION MECHANISMS
To make sure the entire system can operate safely and stably at all times, the power supply comes with a number of protection mechanisms to give you the best peace of mind.

  • Full modular design, Flat cables
  • 80 Plus Gold certified for high efficiency
  • Active PFC design, Industrial level protection with OVP,OCP,OPP,OTP, SCP,UVP
  • 120mm Fluid Dynamic Bearing Fan
  • LLC Full Bridge Topology with DC-DC module design

Šim produktam ir 24 mēnešu garantija.

Parametri

SummaryMSI MAG A650GL. Total power: 650 W, AC input voltage: 100 - 240 V, Maximum input current (@110V): 10 A. Motherboard power connector: 20+4 pin ATX, Cabling type: Fully-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm
Ražotājs datu lapahttps://www.msi.com/Power-Supply/MAG-A650GL/Overview
CnCode85044095
Vienība kastes augstums0.125
Vienība kastes garums0.3
Vienība kastes platums0.223
Ieejas spriegums100 - 240 V
Kombinētā jauda (+12V)648 W
Kombinētā jauda (+3,3 V)100 W
Kombinētā jauda (+5V)100 W
Kombinētā jauda (+5Vsb)12.5 W
Kombinētā jauda (-12V)3.6 W
Efektivitāte90 %
Max izejas strāva (+12V)54 A
Max izejas strāva (+3.3V)20 A
Max izejas strāva (+5V)20 A
Max izejas strāva (+5Vsb)20 A
Max izejas strāva (-12V)0.3 A
Maksimālais ievades strāva @110v10 A
Maksimālais ievades strāva @220v5 A
Barošanas faktors korekcija (PFC) tipsActive
Barošanas aizsardzība funkcijasOver current/Over power/Over voltage/Short circuit
Kopējais barošanas650 W
ATX barošanas savienotājs (20+4 kontakti)Yes
ATX barošanas savienotājs (24 kontaktu)No
Kabeļu veidsFully-Modular
Centrālā procesora barošanas savienotājs (4+4 kontakti)Yes
EPS barošanas savienotājs (4+4 kontaktu)Yes
EPS barošanas savienotājs (8 kontaktu)No
Diskešu diskdziņa savienotājsNo
Motherboard barošanas savienotājs20+4 pin ATX
Numurs of SATA barošanas savienotāji6
PCI Express jauda connectors (6+2 pin)4
Peripheral (Molex) barošanas savienotāji (4-pin)4
80 plus sertifikācija80 PLUS Bronze
Barošanas barošana vienība (PSU) formas faktorsATX
MērķisPC
Dzesēšanas tipsActive
Ventilatora diametrs120 mm
ApgaismojumsNo
Numurs Of Fans1 fan(s)
On/off slēdzisYes
Produkts krāsaBlack
Dziļums140 mm
Augstums86 mm
Platums150 mm
Harmonizētās sistēmas (HS) kods84733020
Vienības uz piegāde kastes6
Vienība Calculated skaļums0.009872 cubm
Vienība Calculated svars2.7 kg
