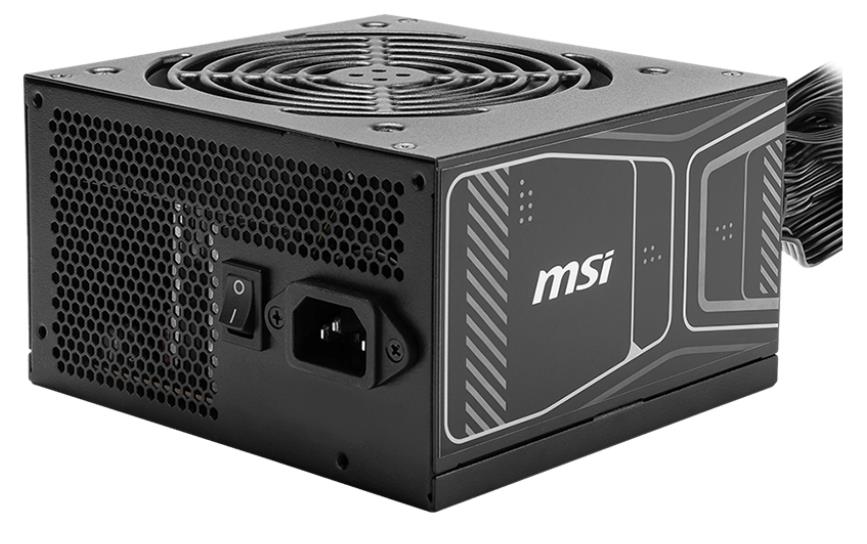

Power Supply|MSI|MAG A850GN PCIE5|ATX|PC|100 - 240 V|850 W|MAGA850GNPCIE5

  • Produkta kods: MAG A850GN PCIE5
  • EAN: 4711377244275
  • Stāvoklis: Jauns
CenaSkaitsPiegāde

104.53

86.56 € (bez PVN 21%)

50

18.08.

Apraksts

The MAG series fights alongside gamers in pursuit of honor.
With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.

80 PLUS GOLD CERTIFIED
The efficiency of your power supply directly influences your system’s performance and your power consumption. The 80 PLUS Gold certification promises lower energy consumption and higher efficiency.

ATX 3.1 Ready
It has an output port that is compliant with PCIe CEM 5.1 and Intel PSDG (Power Supply Design Guide)ATX 3.1, also this power supply can hold up to 2x total power excursion and 3x GPU power excursion.

Offer the CPU sufficient power
This power supply features dual 4+4-pin PCIe power connectors, providing ample 12V power to support high-performance CPUs.

POWER AT YOUR SIDE
The power supply is built with DC-to-DC construction, ensuring top-tier efficiency and unwavering voltage stability for your system.

SET FREE FOR THE +12V POWER OUTPUT
The latest CPUs and graphics cards demand more power, and a single +12V rail PSU provides an ideal combination of simplicity, robust power delivery.

FAN
The fan curve is designed to prioritize low noise output while maintaining effective cooling. When the power supply operates at 70% load, the resulting noise level is kept below 20 dBA.

Capacitors You Can Trust
The 105°C main capacitor is designed to perform reliably in handling high temperatures and peak voltage fluctuations. It ensures stable performance, providing your system with dependable reliability.

CERTIFIED CABLE
This power supply comes equipped with certified cables and connector made of copper alloy terminals. This provides greater safety than typical phosphor bronze connectors, especially during high current surges.

PROTECTION MECHANISMS
operate safely and stably at all times, this power supply comes with a number of protection mechanisms to give you the best peace of mind.

connectors
This power supply equipped with black, flat cables that are soft, and easy to bend, making cable management a breeze.

  • ATX 3.1 ready, native PCIe 5.1 connector
  • Supports NVIDIA® GeForce RTX™ 40 Series graphics cards
  • 105°C main capacitor
  • 80 Plus Gold certified for high efficiency with Active PFC design
  • Industrial level protection with OVP, OCP, OPP, OTP, SCP
  • 120 mm Sleeve Bearing Fan
  • Full Bridge Topology with DC-DC module design

Šim produktam ir 36 mēnešu garantija.

Parametri

KopsavilkumsMSI MAG A850GN PCIE5. Total power: 850 W, AC input voltage: 100 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm
Ražotāja datu lapahttps://www.msi.com/Power-Supply/MAG-A850GN-PCIE5/Overview
CN kods85044095
Vienības kastes augstums0.2
Vienības kastes garums0.29
Vienības kastes platums0.115
Maiņstrāvas ieejas frekvence47 - 63 Hz
Maiņstrāvas ieejas spriegums100 - 240 V
Kombinētā jauda (+12V)846 W
Kombinētā jauda (+3,3 V)110 W
Kombinētā jauda (+5V)110 W
Kombinētā jauda (+5Vsb)15 W
Kombinētā jauda (-12V)3.6 W
Efektivitāte90 %
Maksimālā izejas strāva (+12V)70.5 A
Maksimālā izejas strāva (+3.3V)20 A
Maksimālā izejas strāva (+5V)20 A
Maksimālā izejas strāva (+5VSB)3 A
Maksimālā izejas strāva (-12V)0.3 A
+12V līniju skaits1
Jaudas koeficienta korekcijas (PFC) tipsActive
Barošanas aizsardzības funkcijasOver current/Over power/Over voltage/Overheating/Short circuit
Kopējā jauda850 W
ATX barošanas savienotājs (20+4 kontaktu)No
ATX barošanas savienotājs (24 kontaktu)No
Kabeļu veidsNon-Modular
Centrālā procesora barošanas savienotājs (4+4 kontakti)Yes
EPS barošanas savienotājs (4+4 kontaktu)Yes
EPS barošanas savienotājs (8 kontaktu)No
Mātesplates barošanas kabeļa garums600 mm
Mātesplates barošanas savienotājs20+4 pin ATX
SATA barošanas savienotāju skaits4
PCI Express barošanas savienotāji (16 pin)1
PCI Express barošanas savienotāji (6+2 pin)2
Peripheral (Molex) barošanas savienotāji (4 pin)2
80 Plus sertifikācija80 PLUS Gold
Barošanas bloka (PSU) formas faktorsATX
MērķisPC
Dzesēšanas tipsActive
Ventilatora diametrs120 mm
ApgaismojumsNo
Ventilatoru skaits1 fan(s)
Ieslēgšanas/izslēgšanas slēdzisYes
Produkta krāsaBlack
Dziļums140 mm
Augstums86 mm
Platums150 mm
Iepakojuma tipsBox
Harmonizētās sistēmas (HS) kods84733020
Modeļa nosaukumsMAG A850GN PCIE5
Vienības paletē0
Vienības piegādes kastē4
Vienības aprēķinātais tilpums0.008467 cubm
Vienības aprēķinātais svars2.63 kg
