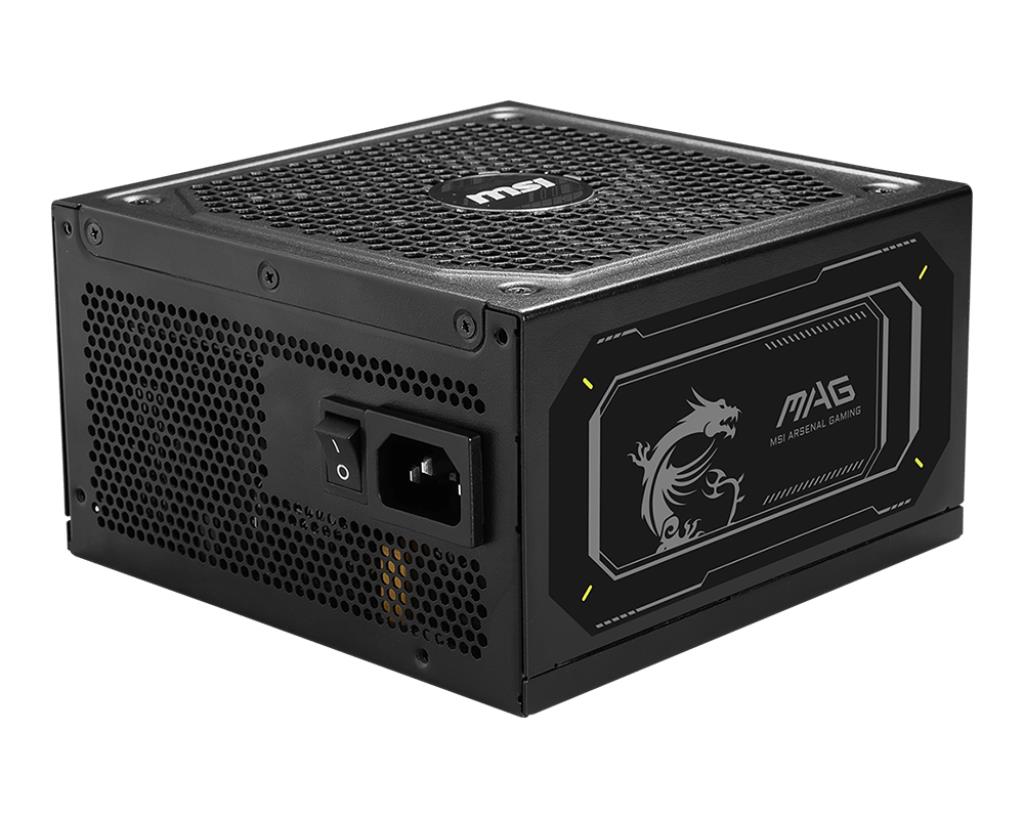

Power Supply|MSI|MAG A1000GL PCIE5 II|ATX 3.1|1000 Watts|Efficiency 80 PLUS GOLD|PFC Active|MAGA1000GLPCIE5II

  • Produkta kods: MAG A1000GL PCIE5 II
  • EAN: 4711377246729
  • Stāvoklis: Jauns
CenaSkaitsPiegāde

174.74

144.41 € (bez PVN 21%)

16

24.04.

Apraksts

The MAG series fights alongside gamers in pursuit of honor.
With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.

ATX 3.1 Ready
The gaming power supply can hold up to 2x total power excursion and 3x GPU power excursion, remaining stable when paired with high performing graphics cards.

ENERGY EFFICIENCY CERTIFICATION
The efficiency of your power supply directly influences your system’s performance and your power consumption. The 80 PLUS Gold certification promises lower energy consumption and higher efficiency.

ONLY WHAT YOU NEED
The connectors that required by the build need to be used, significantly reducing cable clutter and simplifying the system’s overall build. Additionally, the included cable pack provides a storage solution for any unused cables.

ALL THE MORE ORGANIZED
Organizing cables is often the most bothersome part of building a PC. The flat cables make cable management easier and less of headache! Thanks to the flat cables, the entire system can be more organized and has more room for unobstructed airflow.

FLUID DYNAMIC BEARING
The power supply’s fan comes with a fluid dynamic bearing that perfectly balances cooling performance and noise level.

Half bridge LLC + SR + DC/DC
A half-bridge LLC with DC/DC converter combined to achieve higher conversion efficiency, stable output voltage, and quick voltage adjustment for different usage scenarios, thus providing a stable power supply design.

THE POWER YOU HAVE
The single rail supply of power can properly deliver the power you need. For high-performance graphics cards and CPUs, this power supply\'s CPU & PCIe connectors are more than plenty.

PROTECTION MECHANISMS
To make sure the entire system can operate safely and stably at all times, the power supply comes with a number of protection mechanisms to give you the best peace of mind.



  • ATX 3.1 ready, native dual-color PCIe CEM 5.1 connector
  • Supports NVIDIA® GeForce RTX™ 40 series graphics cards
  • Fully modular design, flat cables
  • 80 PLUS Gold certified for high efficiency
  • Active PFC design
  • Protection with OVP / OCP / OPP / OTP / SCP / UVP
  • 135 mm fluid dynamic bearing fan
  • LLC half bridge topology with DC-to-DC module design

Šim produktam ir 24 mēnešu garantija.

Parametri

SummaryMSI MAG A1000GL PCIE5 II. Total power: 1000 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 24-pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 150,500 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 13.5 cm. Width: 150 mm, Depth: 150 mm, Height: 86 mm
Ražotājs datu lapahttps://www.msi.com/Power-Supply/MAG-A1000GL-PCIE5-II
Vienība kastes augstums0.235
Vienība kastes garums0.295
Vienība kastes platums0.13
Ievades frekvence50/60 Hz
Ieejas spriegums100 - 240 V
Kombinētā jauda (+12V)999.6 W
Kombinētā jauda (+3,3 V)120 W
Kombinētā jauda (+5V)120 W
Kombinētā jauda (+5Vsb)15 W
Kombinētā jauda (-12V)3.6 W
Efektivitāte90 %
Max izejas strāva (+12V)83.3 A
Max izejas strāva (+3.3V)22 A
Max izejas strāva (+5V)22 A
Max izejas strāva (+5Vsb)3 A
Max izejas strāva (-12V)0.3 A
Numurs of +12V rail(s)1
Barošanas faktors korekcija (PFC) tipsActive
Barošanas aizsardzība funkcijasOver current/Over power/Over voltage/Overheating/Short circuit/Under voltage
Kopējais barošanas1000 W
Kabeļu veidsFully-Modular
EPS barošanas savienotājs (4+4 kontaktu)Yes
EPS barošanas savienotājs (8 kontaktu)No
Motherboard barošanas kabeļa garums600 mm
Motherboard barošanas savienotājs24-pin ATX
Numurs of SATA barošanas savienotāji12
PCI Express jauda connectors (16-pin)1
PCI Express jauda connectors (6+2 pin)4
Peripheral (Molex) barošanas kabeļa garums450/500 mm
Peripheral (Molex) barošanas savienotāji (4-pin)1
SATA jauda kabelis garums150/500 mm
80 plus sertifikācija80 PLUS Gold
ATX versija3.1
Gultņu tehnoloģijaFDB
Barošanas barošana vienība (PSU) formas faktorsATX
MērķisPC
Dzesēšanas tipsActive
Ventilatora diametrs135 mm
Ventilators Ātrums500 - 1800 RPM
ApgaismojumsNo
Numurs Of Fans1 fan(s)
On/off slēdzisYes
Produkts krāsaBlack
Dziļums150 mm
Augstums86 mm
Svars169 g
Platums150 mm
Modelis NosaukumsMAG A1000GL PCIE5 II
Vienības uz palete0
Vienības uz piegāde kastes4
Vienība Calculated skaļums0.0112 cubm
Vienība Calculated svars3.48 kg
