NET CAMERA 4MP BULLET/IPC-HFW8449J-Z-2712-SC DAHUA

  • Produkta kods: IPC-HFW8449J-Z-2712-SC
  • EAN: 6937552431881
  • Stāvoklis: Jauns
CenaSkaitsPiegāde

1177.57

973.20 € (bez PVN 21%)

2

03.07.

Apraksts

Launched by Dahua Technology, Dahua WizMind is a full portfolio of solutions composed of project-oriented products including IPC, IVSS,NVR, PTZ, XVR, Thermal and software platform which adopts industry-leading deep learning algorithms. Focusing on customer\'s requirements, WizMind provides precise, reliable and comprehensive AI solutions for verticals.

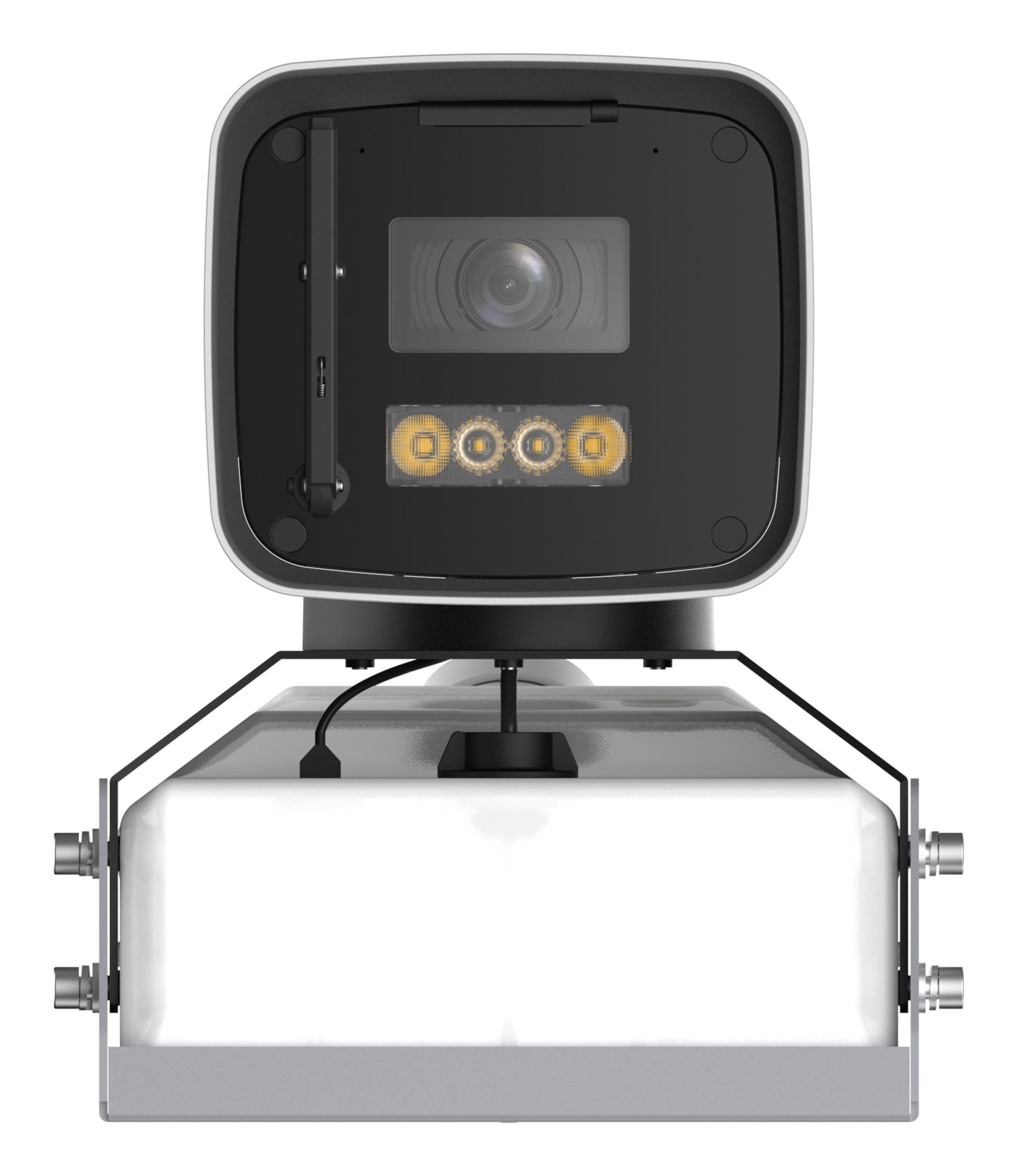

Dahua WizMind 8 Series Self-Cleaning Camera includes a largecapacity tank, quick-install wiper and dust-repellent coated glass that keeps the window clear in dusty environments such as tunnels, ranches, and construction sites. It monitors the water level for the tank, simplifying operation and maintenance, and offers intelligent functions such as face detection, video metadata and perimeter detection, making it suitable for a wide variety of scenes.

Window Self-Cleaning
Provides an efficient cleaning system with a large-capacity tank, quickinstall wiper and dust-repellent coated glass. It also supports manual and scheduled cleaning modes and links the wiper to spray water to remove dust. The coated glass reduces adhesion of dust and stains and uses smart PDS heating to defog and maintain clarity. The tank also includes a built-in self-check module that monitors the liquid level, triggering alarms when there is no water or the water level is low. It also provides refill reminders to simplify maintenance.

AI-ISP
With AI ISP technology, the camera is able to easily adapt to scenes, producing high quality images that reveal the fine details of targets.

Video Metadata
With deep learning algorithm, Dahua Video Metadata technology can detect, track, capture vehicle, non-motor vehicle and people, and select the best images, and extract attributes.

Perimeter Protection
With deep learning algorithm, Dahua Perimeter Protection technology can recognize human and vehicle accurately. In restricted area (such as pedestrian area and vehicle area), the false alarms of intelligent detection based on target type (such as tripwire, intrusion, fast moving, parking detection, loitering detection and gathering detection) are largely reduced.

Protection (IP67, Wide Voltage)
IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can work normally after soaking in 1 m deep water for 30 minutes. Wide voltage: The camera allows ±30% (for some power supplies) input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.

  • 4-MP 1/1.8" CMOS image sensor, low luminance, and high definition image
  • Outputs max 4 MP (2688 × 1520) @25/30 fps
  • Built-in multi-core light, the max IR distance is 60 m and the max warm light distance is 40 m
  • With deep learning algorithm, it supports: IVS, video metadata, face detection
  • Alarm: 2 in, 2 out; audio: 1 in, 1 out; RS-485; supports max 1 TB Micro SD card; built-in dual Mic; 1-ch speaker; supports two-way talk
  • 12 VDC/PoE power supply; 12 VDC power output, and max current 165mA, easy for installation
  • IP67 protection
  • The built-in gradienter visualizes the horizontal gradient, simplifying installation
  • Supports window self-cleaning with a built-in 2.6 L large-capacity water tank. Once the tank has been filled, it can keep working for 3 years (cleaning once per week)
  • Automatically turns on smart PDS heating for the window based on the ambient temperature to prevent rain, snow, or fog from affecting the image
  • Wraparound sunshield reduces dust and rain on the window and minimizes stray light outside the field of view that might affect the image
  • The built-in electrode probe detects the water amount in the tank, simplifying maintenance
  • The cleaning liquid is not supplied. We recommend you use antifreeze windshield water fluid which can withstand –40 °C (–40 °F) environment

Šim produktam ir 36 mēnešu garantija.

Parametri

SummaryDahua Technology WizMind 4MP Self-Cleaning Bullet Network Camera. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Wall, Product colour: Silver, Form factor: Bullet. Angle of rotation: 270°, Lens viewing angle, horizontal: 92.6 - 48°, Lens viewing angle, vertical: 50 - 27°. Sensor type: CMOS, Optical sensor size: 25.4 / 1.8 mm (1 / 1.8"). Focal length range: 2.7 - 12 mm, Detect distance (wide): 70.9 m, Detect distance (tele): 128.7 m
Ražotājs datu lapahttps://www.dahuasecurity.com/products/All-Products/Network-Cameras/WizMind-8-Series/Self-Cleaning-Series/IPC-HFW8449J-Z-SC
Vienība kastes augstums0.345
Vienība kastes garums0.35
Vienība kastes platums0.285
Fog AizsardzībaYes
Formas faktorsBullet
Korpusa materiālsMetal/Plastic
Starptautiskās aizsardzības (SA) kods:IP67
Montāžas veidsWall
Produkts krāsaSilver
Aizsardzība funkcijasCorrosion resistant/Water resistant
Laikapstākļu izturīgsYes
Trauksmes ievades izejasYes
Savienojamības tehnoloģijaWired
Dienas nakts režīmsYes
Dinamisks diapazons140 dB
Novietojums atbalstītsOutdoor
TipsIP security camera
Plats dinamisks diapazons (WDR)Yes
rotācijas leņķis270 °
Kameras aizvara ātrums1/3 - 1/100000 s
Kamera aizvars tipsElectronic
Objektīva skatīšanās leņķis diagonāle109.5 - 56 °
Objektīva skatīšanās leņķis horizontāls92.6 - 48 °
Objektīva skatīšanās leņķis vertikāls50 - 27 °
Minimālais apgaismojums0 lx
Numurs Of konfidencialitātes maskēšana Areas8
Pan diapazons-5 - 5 °
Noliekšana leņķis diapazons-70 - 5 °
Balts BalanceAuto/Manual/Natural/Outdoor/Regional custom/Street lamp
Optiskais sensors izmērs1/1.8 "
Progressive skenēšanaYes
Sensors tipsCMOS
Closest Focusing attālums0.16 m
Detect attālums tele128.7 m
Detect attālums plats70.9 m
Fokusa garums diapazons2.7 - 12 mm
Identify attālums tele12.9 m
Identify attālums plats7.1 m
Maksimālais aperture numurs1.2
Observe attālums tele51.5 m
Observe attālums plats28.4 m
Recognize attālums tele25.7 m
Recognize attālums plats14.2 m
LED TipsIR/White
Nakts redzeYes
Nakts redze attālums60 m
Numurs Of apgaismojums Leds4
Muguras gaismas kompensācija BlcYes
Bitu ātrums vadībaConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Pastiprinājums vadība tipsAuto/Manual
Izcēlums kompensācija HlcYes
Attēla stabilizatorsYes
Maksimālais izšķirtspēja2688 x 1520 pixels
Trokšņa samazināšanaYes
Trokšņa samazināšana tehnoloģija3D noise reduction
Atbalstīts grafika resolutions1280 x 720 (HD 720)/1280 x 960/1920 x 1920/2048 x 1536 (QXGA)/2304 x 1296/2560 x 1440/2688 x 1520/352 x 240/352 x 288/640 x 480 (VGA)/704 x 480/704 x 576
Atbalstīts video režīmi1080p/1296p/1440p/1520p/1536p/240p/480p/576p/720p/960p
Kopējais Megapixels4 MP
Video saspiešana formātiH.264/H.264B/H.265/M-JPEG
Video straumēšanaYes
Audio ievades kanāli1.0 channels
Audio izvades kanāli1.0 channels
Audio sistēma2-way
Bitu ātrums diapazons3 - 16384 Kbit/s
Iebūvētais mikrofonsYes
Iebūvēts skaļrunisYes
Numurs of mikrofoni2
Signal-to-Noise attiecība (SNR)56 dB
Balss kodekiG.711a/G.711Mu/G.723/G.726/PCM
BluetoothNo
Ethernet Saskarne TipsFast Ethernet
ETHERNET/LANYes
Tīklošana standartiIEEE 802.3at
Numurs Of lietotāji20 user(s)
Atbalstīts tīkls protokoliIPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P
Wi-FiNo
Iebūvēts In HDDNo
Iebūvēts karšu lasītājsYes
Saderīgas atmiņas kartesMicroSD (TransFlash)
Maksimālais atmiņa kartes izmērs1000 GB
RAM ietilpība1000 MB
ROM ietilpība4000 MB
Ethernet LAN (RJ-45) pieslēgvietas1
RS 485 porti1
Trauksmes ievades kanāli2
Trauksmes izejas kanāli2
HTTPS šifrēšanaYes
Inteliģents Video Surveillance Ivs Sistēma FunkcijasAbandoned object/Face detection/Intrusion/Missing object/Tripwire
SpogulisYes
Konfidencialitātes aizsardzībaYes
Video kustības noteikšanaYes
Pārvaldība programmatūraSmartPSS Lite; DSS; DMSS; DoLynk Care
Tīmekļa pārlūkprogrammaYes
Līdzstrāva Izeja Spriegums12
Barošanas consumption (max)16.3 W
Barošanas Consumption barošanas pāri Ethernet POE4.9 W
Barošanas consumption (typical)3.4 W
Barošanas pāri Ethernet POEYes
Barošanas avots tipsDC,PoE
Darbības relatīvs mitrums (H-H)0 - 95 %
Darbības temperatūra (T-T)-30 - 60 °C
Glabāšana relatīvs mitrums (H-H)0 - 95 %
Glabāšana temperatūra (T-T)-40 - 60 °C
Mobilais darbības sistēmas atbalstītsAndroid/iOS
Augstums254.8 mm
Garums274.9 mm
Svars3910 g
Platums217.1 mm
Atbilstības sertifikātiElectromagnetic Compatibility (EMC)/Low Voltage Directive (LVD)
Iepakojums svars5030 g
Numurs of cameras1
Tīrītājs iekļautaYes
Audio ievadeRCA
Audio izvadeRCA
Pārlūkprogramma atbalstītsChrome, IE, Firefox, Safari, Edge
Datu pārsūtīšana ātrums100 Mbit/s
IrisYes
Lens TipsVarifocal
Numurs Of video Streams3
Vienības uz palete0
Vienības uz piegāde kastes2
Vienība Calculated skaļums0.04148 cubm
Vienība Calculated svars5.5 kg
