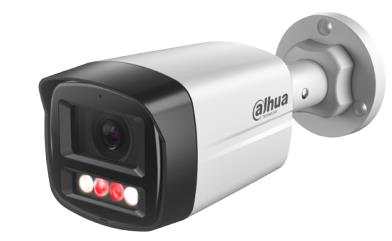

NET CAMERA 4MP IR BULLET/HFW1439TL1-A-IL-0280B DAHUA

  • Produkta kods: IPC-HFW1439TL1-A-IL-0280B
  • EAN: 6923172570796
  • Stāvoklis: Jauns
CenaSkaitsPiegāde

138.74

114.66 € (bez PVN 21%)

30

23.04.

Apraksts

With features of simple installation, easy operation, and high performance-cost ratio, Dahua Entry series network camera is applicable to small and medium-sized scenes, such as homes/ residences, small-sized retail stores, and other small and medium-sized enterprises.

Smart Dual Light
Dahua Smart Dual Light technology adopts smart algorithm to detect targets. Usually, the IR illuminator is on at night; when the target appears in the monitoring area, the white light is on, and the camera records the full-color video and information of key events. That is, the camera links snapshot and video with full-color image. When the target is out of the monitoring area, the white light is off and the IR illuminator is on, which reduces light pollution efficiently

Human Detection
Dahua intelligent algorithms extract moving human targets from videos and filters out alarms that are triggered by non-human targets to increase the accuracy and effectiveness of alarms.

Smart H.265+ & Smart H.264+
With advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission.

WDR
With advanced Wide Dynamic Range (WDR) technology, Dahua network camera provides clear details in the environment of strong brightness contrast. The bright and dark area can get clear video even in high brightness environment or with backlight shadow.

Cyber Security
Dahua network cameras employ a series of security technologies, including security authentication and authorization, access control protocols, trusted protection, encrypted transmission and encrypted storage. These technologies improve the camera\'s defense against external cyber threats and prevent malicious programs from compromising the device.

Protection (IP67, Wide Voltage)
IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can work normally after soaking in 1 m deep water for 30 minutes. Wide voltage: The camera allows ±30% (for some power supplies) input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.

  • 4-MP 1/2.9" CMOS image sensor, low luminance, and high definition image
  • Outputs max. 4 MP (2560 × 1440)@25/30 fps
  • H.265 codec, high compression rate, ultra-low bit rate
  • Built-in IR LED and warm light, the max. IR illumination distance is 30 m and warm light distance is 30 m
  • WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
  • ROI, SMART H.264 +/H.265+, flexible coding, applicable to various bandwidth and storage environments
  • Abnormality detection: Motion detection, video tampering, audio detection, network disconnection, IP conflict and illegal access
  • Built in Mic
  • 12 VDC/PoE power supply
  • IP67 protection
  • Supports human detection

Šim produktam ir 36 mēnešu garantija.

Parametri

SummaryDahua Technology 4MP Entry Smart Dual Light Fixed-focal Bullet Network Camera. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/Wall/Pole, Product colour: White, Black, Form factor: Bullet. Angle of rotation: 360°, Lens viewing angle, horizontal: 94°, Lens viewing angle, vertical: 52°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.9 mm (1 / 2.9"). Signal-to-Noise Ratio (SNR) (panoramic camera): 56 dB
Ražotājs datu lapahttps://www.dahuasecurity.com/bd/products/All-Products/Dedicated-Products/Project-Exclusive/Network-Cameras/DH-IPC-HFW1439TL1-A-IL
Vienība kastes augstums0.11
Vienība kastes garums0.24
Vienība kastes platums0.115
Formas faktorsBullet
Korpusa materiālsMetal/Plastic
Starptautiskās aizsardzības (SA) kods:IP67
Montāžas veidsCeiling/Wall/Pole
Produkts krāsaBlack/White
SertifikācijaCE-LVD / CE-EMC
Savienojamības tehnoloģijaWired
Dinamisks diapazons120 dB
Novietojums atbalstītsIndoor & outdoor
TipsIP security camera
Plats dinamisks diapazons (WDR)Yes
rotācijas leņķis360 °
Kamera panoramēšanas vadībaYes
Kameras aizvara ātrums1/3 - 1/100000 s
Kamera aizvars tipsElectronic/Mechanical
Kamera noliekšana vadībaYes
Objektīva skatīšanās leņķis diagonāle111 °
Objektīva skatīšanās leņķis horizontāls94 °
Objektīva skatīšanās leņķis vertikāls52 °
Minimālais apgaismojums0 lx
Numurs Of konfidencialitātes maskēšana Areas4
Pan diapazons0 - 360 °
Noliekšana leņķis diapazons0 - 90 °
Balts BalanceAuto/Manual/Natural/Outdoor/Regional custom/Street lamp
Optiskais sensors izmērs1/2.9 "
Progressive skenēšanaYes
Sensors tipsCMOS
Signāls To trokšņa attiecība SNR panorāmas kamera56 dB
Closest Focusing attālums1.1 m
Detect attālums64 m
Fiksēts fokusa garums2.8 mm
Fiksēts fokussYes
Identify attālums6.4 m
Maksimālais aperture numurs1.6
Observe attālums25.6 m
Recognize attālums12.8 m
LED TipsIR/White
Nakts redzeYes
Nakts redze attālums30 m
Muguras gaismas kompensācija BlcYes
Bitu ātrumsH.264: 32 kbps-4096 kbps, H.265: 12 kbps-4096 kbps
Bitu ātrums vadībaConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Pastiprinājums vadība tipsAuto/Manual
Izcēlums kompensācija HlcYes
Maksimālais izšķirtspēja2560 x 1440 pixels
Trokšņa samazināšanaYes
Trokšņa samazināšana tehnoloģija3D noise reduction
Konfidencialitātes maskēšanaYes
Atbalstīts grafika resolutions2560 x 1440
Atbalstīts video režīmi1440p
Kopējais Megapixels4 MP
Video saspiešana formātiH.264/H.264B/H.264H/H.265/M-JPEG
Video straumēšanaYes
Iebūvētais mikrofonsYes
Balss kodekiG.711a/G.711Mu/G.726/PCM
BluetoothNo
Ethernet Saskarne TipsFast Ethernet
ETHERNET/LANYes
Tīklošana standartiIEEE 802.3af
Atbalstīts tīkls protokoliIPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; P2P
Wi-FiNo
Iebūvēts In HDDNo
RAM ietilpība128 MB
ROM ietilpība128 MB
Ethernet LAN (RJ-45) pieslēgvietas1
Inteliģents Video Surveillance Ivs Sistēma FunkcijasHuman detection
SpogulisYes
Video kustības noteikšanaYes
Tīmekļa pārlūkprogrammaYes
Līdzstrāva Izeja Spriegums12
Barošanas consumption (max)6.4 W
Barošanas consumption (typical)2 W
Barošanas avots tipsDC,PoE
Darbības relatīvs mitrums (H-H)0 - 95 %
Darbības temperatūra (T-T)-40 - 60 °C
Glabāšana relatīvs mitrums (H-H)0 - 95 %
Glabāšana temperatūra (T-T)-40 - 60 °C
Mobilais darbības sistēmas atbalstītsAndroid/iOS
Dziļums197.9 mm
Augstums76.2 mm
Svars310 g
Platums80.2 mm
Iepakojums svars450 g
Numurs of cameras1
Datu pārsūtīšana ātrums100 Mbit/s
IrisYes
Objektīva stiprinājums interfeissM12
ModelisIPC-HFW1439TL1-A-IL-0280B
Vienības uz palete0
Vienības uz piegāde kastes20
Vienība Calculated skaļums0.003758 cubm
Vienība Calculated svars0.52 kg
