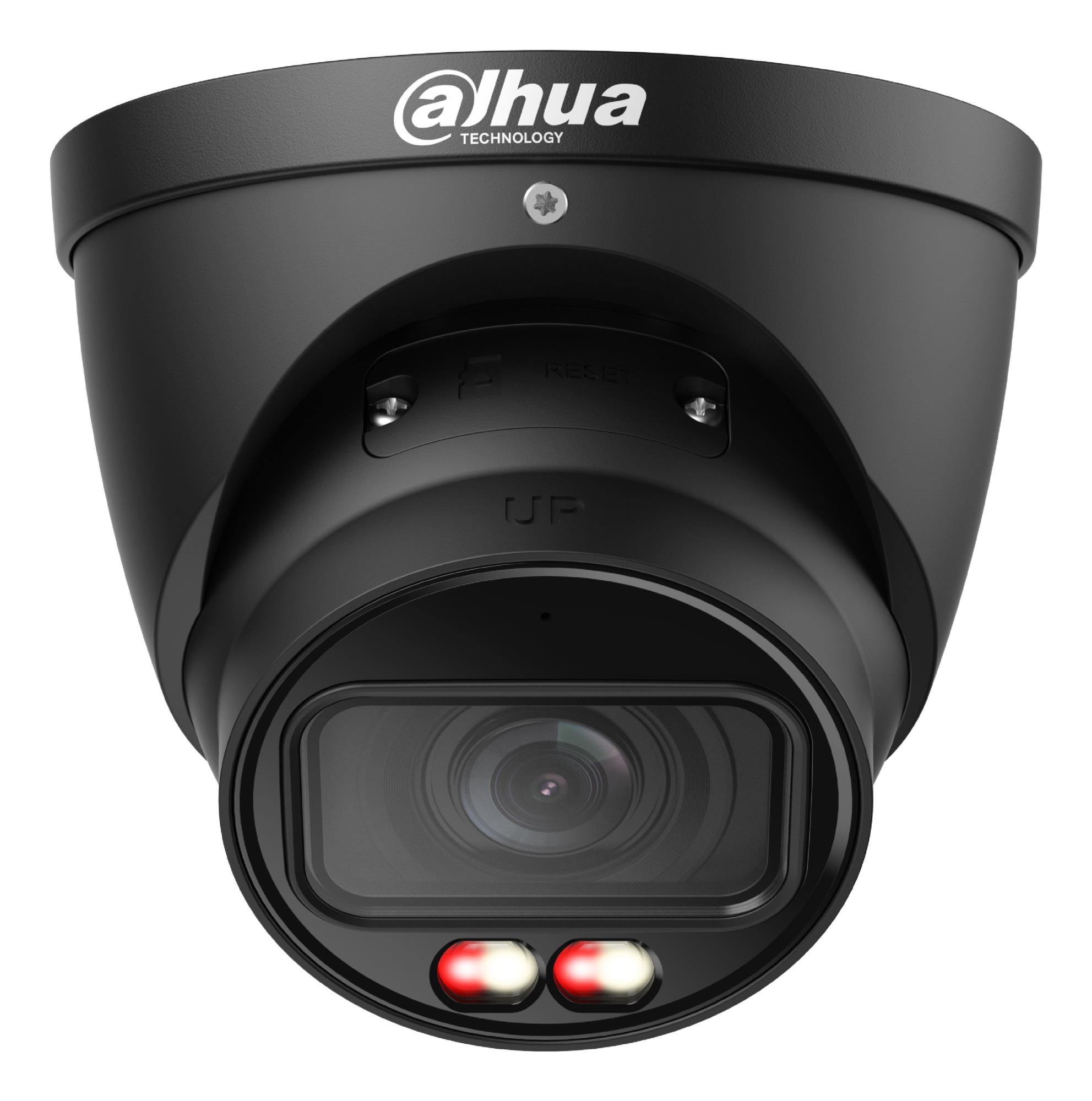

NET CAMERA 4MP EYEBALL/HDW2449T-ZS-IL-27135-B DAHUA

  • Produkta kods: IPC-HDW2449T-ZS-IL-27135-BLACK
  • EAN: 6939554924460
  • Stāvoklis: Jauns
CenaSkaitsPiegāde

367.57

303.78 € (bez PVN 21%)

30

23.04.

Apraksts

Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on Dahua's advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions.

With advanced deep learning algorithm, Dahua WizSense 2 Series network camera supports intelligent functions, such as perimeter protection and smart motion detection. With starlight technology, this series camera provides a better image effect in the condition of low illuminance.

Smart Dual Light
Dahua Smart Dual Light technology adopts smart algorithm to detect targets. Usually, the IR illuminator is on at night; when the target appears in the monitoring area, the white light is on, and the camera records the full-color video and information of key events. That is, the camera links snapshot and video with full-color image. When the target is out of the monitoring area, the white light is off and the IR illuminator is on, which reduces light pollution efficiently.

SMD Plus
With intelligent algorithm, Dahua Smart Motion Detection technology can categorize the targets that trigger motion detection and filter the motion detection alarm triggered by non-concerned targets to realize effective and accurate alarm.

Perimeter Protection
With deep learning algorithm, Dahua Perimeter Protection technology can recognize human and vehicle accurately. In restricted area (such as pedestrian area and vehicle area), the false alarms of intelligent detection based on target type (such as tripwire, intrusion, fast moving, parking detection, loitering detection and gathering detection) are largely reduced.

Smart H.265+ & Smart H.264+
With advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission.

Full-color
With high-performance sensor and large aperture lens, Dahua Fullcolor technology can display clear colorful image in the environment of ultra-low illuminance. With this photosensitivity technology, the camera can capture more available light, and display more colorful image details.

Protection (IP67, Wide Voltage)
IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can work normally after soaking in 1 m deep water for 30 minutes. Wide voltage: The camera allows ±30% (for some power supplies) input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.

  • 4-MP 1/2.9" CMOS image sensor, low luminance, and high definition image.
  • Outputs max. 4 MP (2688 × 1520)@20 fps, and supports 2560 ×1440 (2560 × 1440)@25/30 fps.
  • H.265 codec, high compression rate, ultra-low bit rate.
  • Built-in multi-core light, the max. IR distance is 40 m and the max. warm light distance is 40 m.
  • ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
  • Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
  • Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human).
  • Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
  • Supports max. 256 G Micro SD card; built in Mic.
  • 12 VDC/PoE power supply, easy for installation.
  • IP67 protection.
  • SMD Plus.

Šim produktam ir 36 mēnešu garantija.

Parametri

SummaryDahua Technology WizSense 4MP Smart Dual Light Vari-focal Eyeball Network Camera. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/Wall/Pole, Product colour: Black, Form factor: Dome. Angle of rotation: 360°, Lens viewing angle, horizontal: 97 - 28°, Lens viewing angle, vertical: 52 - 16°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.9 mm (1 / 2.9"). Focal length range: 2.7 - 13.5 mm, Focus: Motorized, Detect distance (wide): 64 m
Ražotājs datu lapahttps://www.dahuasecurity.com/mena/products/All-Products/Network-Cameras/WizSense-2-Series/Smart-Dual-Light/IPC-HDW2449T-ZS-IL
Vienība kastes augstums0.135
Vienība kastes garums0.155
Vienība kastes platums0.155
Formas faktorsDome
Korpusa materiālsMetal
Starptautiskās aizsardzības (SA) kods:IP67
Montāžas veidsCeiling/Wall/Pole
Produkts krāsaBlack
SertifikācijaCE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
Savienojamības tehnoloģijaWired
Dienas nakts režīmsYes
Dinamisks diapazons120 dB
Novietojums atbalstītsIndoor & outdoor
TipsIP security camera
Plats dinamisks diapazons (WDR)Yes
rotācijas leņķis360 °
Kamera panoramēšanas vadībaYes
Kameras aizvara ātrums1/3 - 1/100000 s
Kamera aizvars tipsElectronic/Mechanical
Kamera noliekšana vadībaYes
Objektīva skatīšanās leņķis diagonāle117 - 32 °
Objektīva skatīšanās leņķis horizontāls97 - 28 °
Objektīva skatīšanās leņķis vertikāls52 - 16 °
Minimālais apgaismojums0 lx
Numurs Of konfidencialitātes maskēšana Areas4
Pan diapazons0 - 360 °
Noliekšana leņķis diapazons0 - 78 °
Balts BalanceAuto/Manual/Natural/Outdoor/Regional custom/Street lamp
Optiskais sensors izmērs1/2.9 "
Progressive skenēšanaYes
Sensors tipsCMOS
Closest Focusing attālums0.8 m
Detect attālums tele210 m
Detect attālums plats64 m
Fokusa garums diapazons2.7 - 13.5 mm
FokusēšanaMotorized
Identify attālums tele21 m
Identify attālums plats6.4 m
Maksimālais aperture numurs1.5
Numurs Of objektīvi1
Observe attālums tele84 m
Observe attālums plats25.6 m
Recognize attālums tele42 m
Recognize attālums plats12.8 m
LED TipsIR/White
Nakts redzeYes
Nakts redze attālums40 m
Numurs Of apgaismojums Leds4
Muguras gaismas kompensācija BlcYes
Bitu ātrumsH.264: 32 kbps-6144 kbps / H.265: 12 kbps-6144 kbps
Bitu ātrums vadībaConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Kadru zīmēšanas ātrums30 fps
Pastiprinājums vadība tipsAuto/Manual
Izcēlums kompensācija HlcYes
Maksimālais izšķirtspēja2688 x 1520 pixels
Trokšņa samazināšanaYes
Trokšņa samazināšana tehnoloģija3D noise reduction
Reģions Of Interest Roi kodēšanaYes
Atbalstīts grafika resolutions2560 x 1440/2688 x 1520
Atbalstīts video režīmi1440p/1520p
Kopējais Megapixels4 MP
Video saspiešana formātiH.264/H.264+/H.264B/H.264H/H.265/H.265+/M-JPEG
Video straumēšanaYes
Audio kodekiG.711a; G.711Mu; G.726; PCM
Iebūvētais mikrofonsYes
Signal-to-Noise attiecība (SNR)56 dB
BluetoothNo
Kabeļu tehnoloģija10/100Base-T(X)
Klienta sadarbspējaONVIF (Profile S & Profile T & Profile G); CGI
Ethernet Saskarne TipsFast Ethernet
ETHERNET/LANYes
Tīklošana standartiIEEE 802.3af
Atbalstīts tīkls protokoliIPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; P2P
Wi-FiNo
Iebūvēts In HDDNo
Iebūvēts karšu lasītājsYes
Saderīgas atmiņas kartesMicroSD (TransFlash)
Maksimālais atmiņa kartes izmērs256 GB
RAM ietilpība128 MB
ROM ietilpība128 MB
Ethernet LAN (RJ-45) pieslēgvietas1
Inteliģents Video Surveillance Ivs Sistēma FunkcijasIntrusion/Tripwire
SpogulisYes
Konfidencialitātes aizsardzībaYes
Video kustības noteikšanaYes
Pārvaldība programmatūraSmart PSS Lite; DSS; DMSS; DoLynk Care
Tīmekļa pārlūkprogrammaYes
Līdzstrāva Izeja Spriegums12
Barošanas consumption (max)7.8 W
Barošanas Consumption barošanas pāri Ethernet POE2.8 W
Barošanas consumption (typical)2.3 W
Barošanas avots tipsDC,PoE
Darbības relatīvs mitrums (H-H)0 - 95 %
Darbības temperatūra (T-T)-30 - 60 °C
Glabāšana relatīvs mitrums (H-H)0 - 95 %
Glabāšana temperatūra (T-T)-30 - 60 °C
Mobilais darbības sistēmas atbalstītsAndroid/iOS
Diametrs122 mm
Augstums108.3 mm
Svars690 g
Iepakojums svars860 g
Numurs of cameras1
Datu pārsūtīšana ātrums100 Mbit/s
IrisYes
Vienības uz palete0
Vienības uz piegāde kastes20
Vienība Calculated skaļums0.00402 cubm
Vienība Calculated svars0.923 kg
