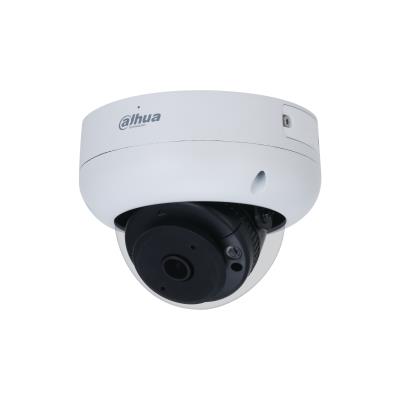

NET CAMERA 4MP IR DOME AI/IPC-HDBW3441R-AS-P-0210B DAHUA

  • Produkta kods: IPC-HDBW3441R-AS-P-0210B
  • EAN: 6923172534286
  • Stāvoklis: Jauns
CenaSkaitsPiegāde

333.62

275.72 € (bez PVN 21%)

2

23.04.

Apraksts

Series Overview
With advanced deep learning algorithm, Dahua WizSense 3 Series
network camera supports intelligent functions, such as perimeter
protection and smart motion detection. With starlight technology, this
series camera provides a better image effect in the condition of low
illuminance.

Launched by Dahua Technology, WizSense is a series of AI products and
solutions that adopt independent AI chip and deep learning algorithm.
It focuses on human and vehicle with high accuracy, enabling users to
fast act on defined targets. Based on Dahua\'s advanced technologies,
WizSense provides intelligent, simple and inclusive products and
solutions.

Functions
EPTZ
With advanced target detection and tracking algorithms, Dahua EPTZ
technology can simultaneously zoom in and track multiple humans and
vehicles that trigger alarms. It provides rich details and a panoramic
view at the same time.

SMD 3.0
With intelligent algorithm, Dahua Smart Motion Detection technology
can categorize the targets that trigger motion detection and filter the
motion detection alarm triggered by non-concerned targets to realize
effective and accurate alarm.

Smart H.265+ & Smart H.264+
With advanced scene-adaptive rate control algorithm, Dahua smart
encoding technology realizes the higher encoding efficiency than H.265
and H.264, provides high-quality video, and reduces the cost of storage
and transmission.

Perimeter Protection
With deep learning algorithm, Dahua Perimeter Protection technology
can recognize human and vehicle accurately. In restricted area (such
as pedestrian area and vehicle area), the false alarms of intelligent
detection based on target type (such as tripwire, intrusion) are largely
reduced.

  • 4-MP 1/2.7" CMOS starlight-grade image sensor, low luminance, and high definition image
  • Outputs 4 MP (2688 × 1520) @25/30 fps, and supports max. 5 MP (2880 × 1620) @20 fps
  • H.265 codec, high compression rate, ultra-low bit rate
  • Built-in IR LED, and the max. illumination distance is 15 m
  • ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments
  • Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
  • Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
  • Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection
  • Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; built in MIC
  • 12 VDC/PoE power supply
  • IP67, IK10 protection
  • EPTZ: Enlarge and track the targets of intelligent alarms
  • SMD 3.0

Šim produktam ir 36 mēnešu garantija.

Parametri

SummaryDahua Technology WizSense DH-IPC-HDBW3441R-AS-P. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Assorted colours, Form factor: Dome. Minimum illumination: 0.0005 lx, Angle of rotation: 355°, Lens viewing angle, horizontal: 170°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"), Number of effective pixels (H x V): 2880 x 1620 pixels. Fixed focal length: 2.1 mm, Closest focusing distance: 0.6 m
Ražotājs datu lapahttps://www.dahuasecurity.com/products/All-Products/Network-Cameras/WizSense-Series/3-Series/Wide-Angle/IPC-HDBW3441R-AS-P
Vienība kastes augstums0.19
Vienība kastes garums0.19
Vienība kastes platums0.16
Fog AizsardzībaYes
Formas faktorsDome
Korpusa materiālsMetal
IK KodsIK10
Starptautiskās aizsardzības (SA) kods:IP67
LED indikatoriYes
Montāžas veidsCeiling/wall
Produkts krāsaAssorted colours
Laikapstākļu izturīgsYes
Trauksmes ievades izejasYes
Savienojamības tehnoloģijaWired
Dienas nakts režīmsYes
Dinamisks diapazons120 dB
Novietojums atbalstītsIndoor & outdoor
TipsIP security camera
Plats dinamisks diapazons (WDR)Yes
Regulēšana aizvars ātrumsAuto/Manual
rotācijas leņķis355 °
Kameras aizvara ātrums1/3 s-1/100,000 s
Kamera aizvars tipsElectronic
Kamera noliekšana vadībaNo
Objektīva skatīšanās leņķis diagonāle175 °
Objektīva skatīšanās leņķis horizontāls170 °
Objektīva skatīšanās leņķis vertikāls75 °
Minimālais apgaismojums0.0005 lx
Pan diapazons0 - 355 °
Noliekšana leņķis diapazons0 - 80 °
Balts BalanceAuto/Custom modes/Manual/Natural/Outdoor/Street lamp
Numurs Of efektīvā pikseļi H X V2880 x 1620 pixels
Numurs Of sensori1
Optiskais sensors izmērs1/2.7 "
Progressive skenēšanaYes
Sensors tipsCMOS
Closest Focusing attālums0.6 m
Fiksēts fokusa garums2.1 mm
Maksimālais aperture numurs2
Numurs Of objektīvi1
Nakts redzeYes
Muguras gaismas kompensācija BlcYes
Bitu ātrums vadībaConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Pastiprinājums vadība tipsAuto/Manual
Izcēlums kompensācija HlcYes
Maksimālais izšķirtspēja2880 x 1620 pixels
Trokšņa samazināšanaYes
Trokšņa samazināšana tehnoloģija3D noise reduction
Reģions Of Interest Roi kodēšanaYes
Kopējais Megapixels4 MP
Video saspiešana formātiH.264/H.264B/H.265/M-JPEG
Video formāti atbalstītsH.264+/H.265+
BluetoothNo
ETHERNET/LANYes
Tīklošana standartiIEEE 802.1x
Numurs Of lietotāji20 user(s)
Straumēšana metodeMulticast/Unicast
Atbalstīts tīkls protokoliIPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
Wi-FiNo
Iebūvēts In HDDNo
Iebūvēts karšu lasītājsYes
Saderīgas atmiņas kartesMicroSD (TransFlash)
RAM Installed512 MB
Maksimālais atmiņa kartes izmērs256 GB
ROM ietilpība128 MB
Ethernet LAN (RJ-45) pieslēgvietas1
Uzvedības analīzeIntrusion detection,Line crossing detection
Tīmekļa pārlūkprogrammaYes
Tīmekļa Based pārvaldībaYes
Līdzstrāva Izeja Spriegums12
Barošanas consumption (max)6.4 W
Barošanas Consumption barošanas pāri Ethernet POE7.7 W
Barošanas consumption (typical)3.2 W
Barošanas avots tipsDC,PoE
Darbības relatīvs mitrums (H-H)0 - 95 %
Darbības temperatūra (T-T)-40 - 60 °C
Glabāšana temperatūra (T-T)-40 - 60 °C
Mobilais darbības sistēmas atbalstītsAndroid/iOS
Diametrs122 mm
Augstums94 mm
Svars500 g
Iepakojums svars770 g
Numurs of cameras1
ModelisIPC-HDBW3441R-AS-P-0210B
Vienības uz piegāde kastes1
Vienība Calculated skaļums0.005776 cubm
Vienība Calculated svars0.775 kg
