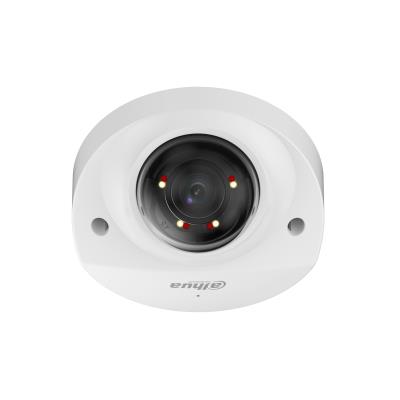

NET CAMERA 4MP DOME/IPC-HDBW2449F-AS-IL0280B DAHUA

  • Produkta kods: IPC-HDBW2449F-AS-IL-0280B
  • EAN: 6923172526922
  • Stāvoklis: Jauns
CenaSkaitsPiegāde

203.72

168.36 € (bez PVN 21%)

10

01.05.

Apraksts

Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on Dahua\'s advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions.

With advanced deep learning algorithm, Dahua WizSense 2 Series network camera supports intelligent functions, such as perimeter protection and smart motion detection. With starlight technology, this series camera provides a better image effect in the condition of low illuminance.

Smart Dual Light
Dahua Smart Dual Light technology adopts smart algorithm to detect targets. Usually, the IR illuminator is on at night; when the target appears in the monitoring area, the white light is on, and the camera records the full-color video and information of key events. That is, the camera links snapshot and video with full-color image. When the target is out of the monitoring area, the white light is off and the IR illuminator is on, which reduces light pollution efficiently.

SMD Plus
With intelligent algorithm, Dahua Smart Motion Detection technology can categorize the targets that trigger motion detection and filter the motion detection alarm triggered by non-concerned targets to realize effective and accurate alarm.

Perimeter Protection
With deep learning algorithm, Dahua Perimeter Protection technology can recognize human and vehicle accurately. In restricted area (such as pedestrian area and vehicle area), the false alarms of intelligent detection based on target type (such as tripwire, intrusion, fast moving, parking detection, loitering detection and gathering detection) are largely reduced.

Smart H.265+ & Smart H.264+
With advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission.

Full-color
With high-performance sensor and large aperture lens, Dahua Fullcolor technology can display clear colorful image in the environment of ultra-low illuminance. With this photosensitivity technology, the camera can capture more available light, and display more colorful image details.

Cyber Security
Dahua network cameras employ a series of security technologies, including security authentication and authorization, access control protocols, trusted protection, encrypted transmission and encrypted storage. These technologies improve the camera\'s defense against external cyber threats and prevent malicious programs from compromising the device.

Protection (IP67, IK10, Wide Voltage)
IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can work normally after soaking in 1 m deep water for 30 minutes.
IK10: The enclosure can stand the punch more than 5 times from a 5 kg hammer falling from a height of 40 cm (Impact energy is 20J).
Wide voltage: The camera allows ±30% (for some power supplies) input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.

  • 4-MP 1/2.9" CMOS image sensor, low luminance, and high definition image
  • Outputs max. 4 MP (2688 × 1520) @20 fps, and supports 2560 × 1440@25/30 fps
  • H.265 codec, high compression rate, ultra-low bit rate
  • Built-in multi-core light, the max. IR distance is 30 m and the max. warm light distance is 30 m
  • ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
  • Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
  • Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
  • Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection
  • Supports max. 256 G Micro SD card; built in Mic
  • 12 VDC/PoE power supply, easy for installation
  • IP67 and IK10 protection
  • SMD Plus

Šim produktam ir 36 mēnešu garantija.

Parametri

SummaryDahua Technology WizSense IPC-HDBW2449F-AS-IL-0280B. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/Wall/Pole, Product colour: White, Form factor: Dome. Minimum illumination: 0.0006 lx, Angle of rotation: 360°, Lens viewing angle, horizontal: 101°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.9 mm (1 / 2.9"). Detect distance: 63.6 m, Observe distance: 25.4 m, Recognize distance: 12.7 m
Ražotājs datu lapahttps://www.dahuasecurity.com/products/All-Products/Network-Cameras/WizSense-Series/2-Series/Smart-Dual-Light/IPC-HDBW2449F-AS-IL
Vienība kastes augstums0.085
Vienība kastes garums0.14
Vienība kastes platums0.135
Formas faktorsDome
Korpusa materiālsMetal
IK KodsIK10
Starptautiskās aizsardzības (SA) kods:IP67
Montāžas veidsCeiling/Wall/Pole
Produkts krāsaWhite
Trauksmes ievades izejasYes
Iebūvēts In gaismasYes
Savienojamības tehnoloģijaWired
Infrasarkanais IR griešanas izslēgšana filtrsYes
Novietojums atbalstītsOutdoor
TipsIP security camera
Plats dinamisks diapazons (WDR)Yes
rotācijas leņķis360 °
Kameras aizvara ātrums1/3 - 1/100000 s
Objektīva skatīšanās leņķis diagonāle120 °
Objektīva skatīšanās leņķis horizontāls101 °
Objektīva skatīšanās leņķis vertikāls54 °
Minimālais apgaismojums0.0006 lx
Numurs Of konfidencialitātes maskēšana Areas4
Pan diapazons-30 - 30 °
Noliekšana leņķis diapazons0 - 80 °
Balts BalanceAuto/Manual/Natural/Outdoor/Regional custom/Street lamp
Optiskais sensors izmērs1/2.9 "
Progressive skenēšanaYes
Sensors tipsCMOS
Closest Focusing attālums1.7 m
Detect attālums63.6 m
Fiksēts fokusa garums2.8 mm
Fiksēts fokussYes
Identify attālums6.4 m
Numurs Of objektīvi1
Observe attālums25.4 m
Recognize attālums12.7 m
LED TipsIR/White
Nakts redzeYes
Nakts redze attālums30 m
Numurs Of apgaismojums Leds4
Muguras gaismas kompensācija BlcYes
Bitu ātrumsH.264: 32 kbps-6144 kbps; H.265: 12 kbps-6144 kbps
Bitu ātrums vadībaConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Apgriešana spogulisYes
Pastiprinājums vadība tipsAuto/Manual
Izcēlums kompensācija HlcYes
Maksimālais izšķirtspēja2688 x 1520 pixels
Trokšņa samazināšanaYes
Trokšņa samazināšana tehnoloģija3D noise reduction
Reģions Of Interest Roi kodēšanaYes
Atbalstīts grafika resolutions1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2560 x 1440/2688 x 1520/352 x 240/352 x 288/640 x 480 (VGA)/704 x 480/704 x 576
Kopējais Megapixels4 MP
Video saspiešana formātiH.264/H.264B/H.264H/H.265/M-JPEG
Video straumēšanaYes
Audio ievades kanāli1.0 channels
Audio izvades kanāli1.0 channels
Iebūvētais mikrofonsYes
Signal-to-Noise attiecība (SNR)56 dB
Balss kodekiG.711a/G.711Mu/G.726/PCM
BluetoothNo
ETHERNET/LANYes
Numurs Of lietotāji6 user(s)
Atbalstīts tīkls protokoliIPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; P2P
Wi-FiNo
Iebūvēts In HDDNo
Iebūvēts karšu lasītājsYes
Saderīgas atmiņas kartesMicroSD (TransFlash)
Maksimālais atmiņa kartes izmērs256 GB
RAM ietilpība128 MB
ROM ietilpība128 MB
Ethernet LAN (RJ-45) pieslēgvietas1
Aktīvā aizsardzība pret bojājumiem trauksmesYes
Trauksmes ievades kanāli1
Trauksmes izejas kanāli1
Inteliģents Video Surveillance Ivs Sistēma FunkcijasHuman detection/Intrusion/Tripwire/Vehicle detection
Konfidencialitātes aizsardzībaYes
Video kustības noteikšanaYes
Tīmekļa Based pārvaldībaYes
Līdzstrāva Izeja Spriegums12
Barošanas consumption (max)8.5 W
Barošanas Consumption barošanas pāri Ethernet POE3.8 W
Barošanas consumption (typical)2.3 W
Barošanas avots tipsDC,PoE
Darbības relatīvs mitrums (H-H)0 - 95 %
Darbības temperatūra (T-T)-40 - 60 °C
Glabāšana relatīvs mitrums (H-H)0 - 95 %
Glabāšana temperatūra (T-T)-40 - 60 °C
Diametrs108.9 mm
Augstums55 mm
Svars410 g
Iepakojums svars550 g
Numurs of cameras1
ModelisIPC-HDBW2449F-AS-IL-0280B
Vienības uz piegāde kastes1
Vienība Calculated skaļums0.001607 cubm
Vienība Calculated svars0.54 kg
