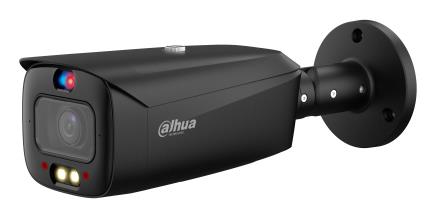

NET CAMERA 5MP BULLET/HFW3549T1-ZASPV27135S5-B DAHUA

  • Produkta kods: HFW3549T1-ZASPV27135S5-B
  • EAN: 6939554994265
  • Stāvoklis: Jauns
CenaSkaitsPiegāde

560.47

463.20 € (bez PVN 21%)

30

23.04.

Apraksts

Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on Dahua\'s advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions.

Siren And Light Active Deterrence
Dahua siren and light active deterrence network camera supports the light alarm and voice alarm when perimeter event occurs, to realize the deterrence and effective intervention. The camera is built in multiple voices for selection, and supports customized voice importing.

Smart Dual Light
Dahua Smart Dual Light technology adopts smart algorithm to detect targets. Usually, the IR illuminator is on at night; when the target appears in the monitoring area, the warm light is on, and the camera records the full-color video and information of key events. That is, the camera links snapshot and video with full-color image. When the target is out of the monitoring area, the warm light is off and the IR illuminator is on, which reduces light pollution efficiently.

SMD 4.0
Dahua Smart Motion Detection technology works with intelligent algorithms to classify targets that trigger motion detection alarms. It filters out objects that are not targets, such as small and large animals, to avoid triggering false alarms. With an AI NVR, Quick Pick technology becomes available, allowing you to easily search for and pick out human and vehicle targets from SMD event videos, prioritizing the highest matches.

One-tap Disarming
Dahua One-tap Disarming function, which is convenient and easy for operation, is the switch for event linkage. Customers can close and recover event linkage through mobile App, which meets multi-scenarios needs.

Cyber Security
Dahua network cameras employ a series of security technologies, including security authentication and authorization, access control protocols, trusted protection, encrypted transmission and encrypted storage. These technologies improve the camera\'s defense against external cyber threats and prevent malicious programs from compromising the device.

Protection (IP67, wide voltage)
IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can works normal after soaking in 1 m deep water for 30 minutes. Wide voltage: The camera allows ±30% input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.

  • 5-MP 1/2.7" CMOS image sensor, low luminance, and high definition image
  • Outputs max. 5 MP (2960 × 1668) @20 fps and supports 4 MP (2688 × 1520) @25/30 fps
  • H.265 codec, high compression rate, ultra-low bit rate
  • Built-in warm light and IR LED; the max. IR illumination distance is 50 m and warm light distance is 40 m
  • ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments
  • Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
  • Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human)
  • Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection
  • Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; built-in dual MICs; 1-ch speaker; support two-way talk
  • 12 VDC/PoE power supply
  • IP67 protection
  • Sound and light alarm (red and blue lights)
  • SMD 4.0
  • One-tap arming/disarming through alarm input

Šim produktam ir 36 mēnešu garantija.

Parametri

SummaryDahua Technology WizSense IPC-HFW3549T1-ZAS-PV. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, Form factor: Bullet. Minimum illumination: 0.0003 lx, Lens viewing angle, horizontal: 113 - 36°, Lens viewing angle, vertical: 57 - 20°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Focal length range: 2.7 - 13.5 mm, Detect distance (wide): 65.2 m, Detect distance (tele): 186.6 m
Ražotājs datu lapahttps://www.dahuasecurity.com/products/All-Products/Network-Cameras/WizSense-Series/3-Series/TiOC/IPC-HFW3549T1-ZAS-PV=S5
Vienība kastes augstums0.135
Vienība kastes garums0.34
Vienība kastes platums0.145
Formas faktorsBullet
Korpusa materiālsMetal/Plastic
Starptautiskās aizsardzības (SA) kods:IP67
Montāžas veidsCeiling/wall
Produkts krāsaBlack
SertifikācijaCE-LVD: EN 62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B; UL/CUL:UL62368-1 & CAN/CSA C22.2 No. 62368-1-14
Savienojamības tehnoloģijaWired
Dienas nakts režīmsYes
Novietojums atbalstītsIndoor & outdoor
TipsIP security camera
Plats dinamisks diapazons (WDR)Yes
Regulēšana aizvars ātrumsAuto/Manual
Kamera panoramēšanas vadībaNo
Kameras aizvara ātrums1/3 - 1/100000 s
Kamera noliekšana vadībaNo
Objektīva skatīšanās leņķis diagonāle137 - 40 °
Objektīva skatīšanās leņķis horizontāls113 - 36 °
Objektīva skatīšanās leņķis vertikāls57 - 20 °
Minimālais apgaismojums0.0003 lx
Numurs Of konfidencialitātes maskēšana Areas4
Pan diapazons0 - 360 °
Noliekšana leņķis diapazons0 - 90 °
Balts BalanceAuto/Lamp/Manual/Outdoor
Numurs Of sensori1
Optiskais sensors izmērs1/2.7 "
Progressive skenēšanaYes
Sensors tipsCMOS
Detect attālums tele186.6 m
Detect attālums plats65.2 m
Fokusa garums diapazons2.7 - 13.5 mm
Numurs Of objektīvi1
Observe attālums tele37.3 m
Observe attālums plats26.1 m
Nakts redzeYes
Nakts redze attālums30 m
Maksimālais izšķirtspēja2592 x 1944 pixels
Trokšņa samazināšanaYes
Trokšņa samazināšana tehnoloģija3D noise reduction
Konfidencialitātes maskēšanaYes
Atbalstīts grafika resolutions1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2592 x 1944/2688 x 1520/640 x 480 (VGA)
Kopējais Megapixels5 MP
Video saspiešana formātiH.264/H.264B/H.264H/H.265
Audio noteikšanaYes
Atbalstītie audio formātiG.711/G.726
Audio ievades kanāli2.0 channels
Audio izvades kanāli2.0 channels
Audio sistēma2-way
Iebūvētais mikrofonsYes
Iebūvēts skaļrunisYes
BluetoothNo
Ethernet Saskarne TipsFast Ethernet/Gigabit Ethernet
ETHERNET/LANYes
Wi-FiNo
Iebūvēts In HDDNo
Iebūvēts karšu lasītājsYes
Saderīgas atmiņas kartesMicroSD (TransFlash)
RAM Installed512 MB
Maksimālais atmiņa kartes izmērs256 GB
ROM ietilpība128 MB
Ethernet LAN (RJ-45) pieslēgvietas1
Trauksmes ievades kanāli2
Trauksmes izejas kanāli2
SpogulisYes
Tīmekļa pārlūkprogrammaYes
Tīmekļa Based pārvaldībaYes
Līdzstrāva Izeja Spriegums12
Barošanas consumption (max)7.4 W
Barošanas Consumption barošanas pāri Ethernet POE8.7 W
Barošanas consumption (typical)3.3 W
Barošanas avots tipsDC,PoE
Darbības temperatūra (T-T)-30 - 60 °C
Glabāšana temperatūra (T-T)-30 - 60 °C
Mobilais darbības sistēmas atbalstītsAndroid/iOS
Dziļums288.4 mm
Augstums84.7 mm
Svars1050 g
Platums94.4 mm
Iepakojums svars1350 g
ModelisHFW3549T1-ZASPV27135S5-B
Vienības uz palete0
Vienības uz piegāde kastes8
Vienība Calculated skaļums0.00844 cubm
Vienība Calculated svars1.38 kg
