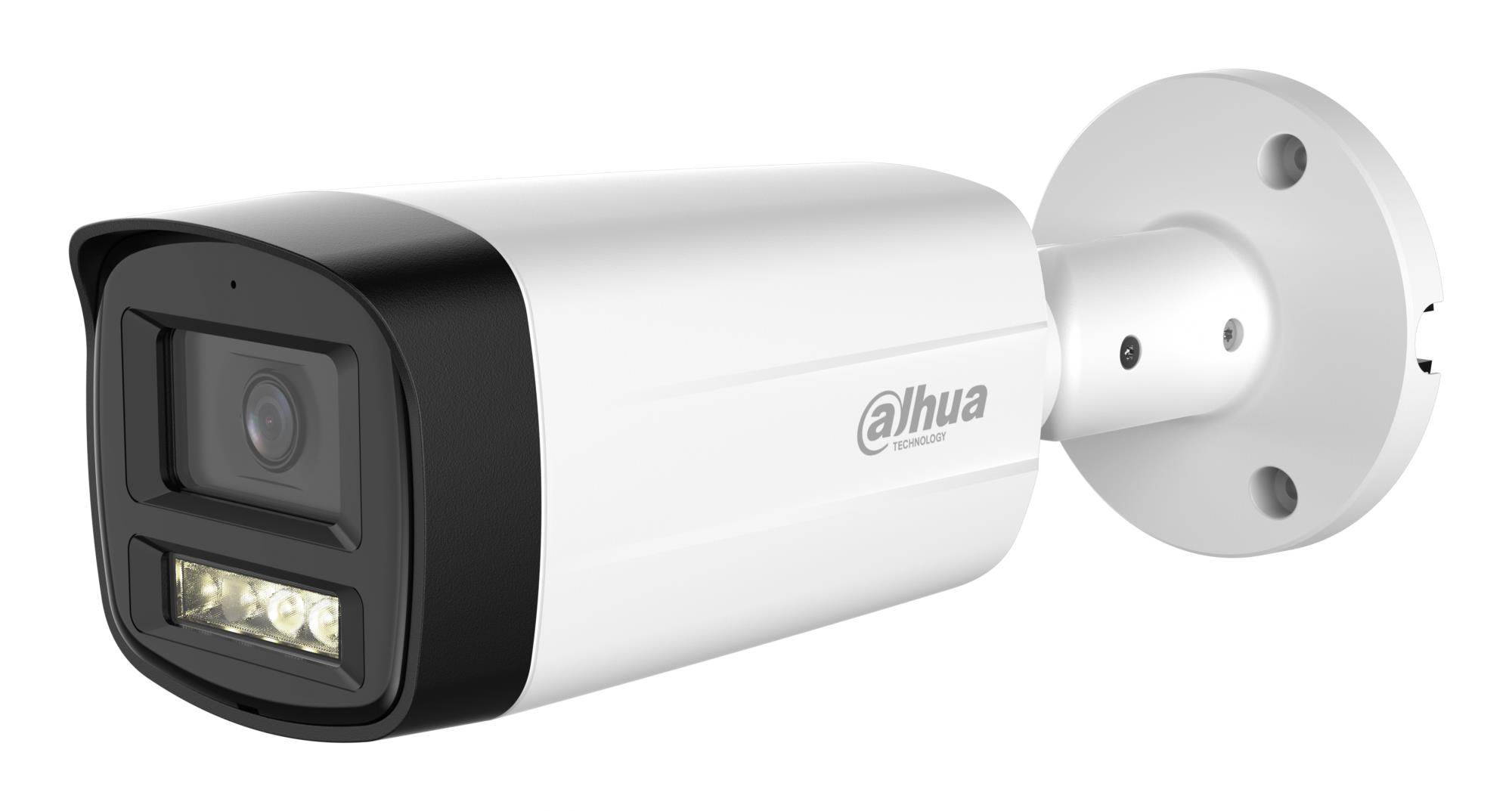

CAMERA HDCVI 8MP BULLET/HFW1801THILA-0360B-S3DIP DAHUA

  • Produkta kods: HFW1801TH-IL-A-0360B-S3DIP
  • EAN: 6939554962721
  • Stāvoklis: Jauns
CenaSkaitsPiegāde

107.93 €

89.20 € (bez PVN 21%)

3

22.10.

Apraksts

The Lite Series is a great choice for consumers looking for high quality monitoring products at a reasonable price. Its low cost and high performance make it ideal for residential areas and SMB solutions. This series is equipped with a wide range of technologies, such as fullcolor and starlight, providing various solutions for different scenarios.

Smart Dual Light
With its smart dual light mechanism, the camera automatically turns on the white light when Perimeter Protection/SMD Plus function of AI XVR detects a target in the rule area to capture clear, vivid images. When the target leaves the rule area, the camera automatically switches over from the white light to the IR light to significantly reduce light pollution.

Smart Light+
Equipped with advanced LEDs and beam processing technology, the camera effectively reduces interference of stray light, ensuring concentrated illumination within the lens\'s field of view. This allows the camera to easily produce clear images that reveal the fine details of targets even in low light conditions.

Smart Area Lighting
Automatically adjusts the intensity of the brightness and exposure for the left and right areas in the video based on the proportion and position of the targets to reveal more details in the image.

Broadcast-quality Audio
Audio signal transmission over coaxial cables is supported by the HDCVI camera. It adopts a unique audio processing and transmission technology that restores source audio and eliminates noise, ensuring the quality and reliability of the audio information that is collected. This becomes important for video surveillance applications that use audio information as a type of supplementary evidence.

Super Adapt
With its intelligent algorithm, the camera automatically adjusts its parameters to provide optimal performance and vivid images.

Advanced 3DNR
Dahua’s advanced 3DNR technology reduces image noise with little to no impact on image sharpness, especially in poor lighting conditions. It detects the noise, and compares the sequential frames to effectively reduce the noise. It also makes efficient use of bandwidth, saving on storage space.

  • > * The parameters and datasheets below can only be applied to 1801-IL-S3 series
  • In order to use the Smart Dual Light HDCVI camera, the firmware of XVR must be upgraded to V4.001.0000004.1.R.220323 or later version
  • In order to use the TVI Audio, the firmware of HDCVI camera must be upgraded to V1.001.0000002.0.R.20251204 or later version
  • Max. 15 fps@4K
  • Smart Dual Light
  • 80 m illumination distance
  • Super Adapt
  • Built-in Mic
  • 3.6 mm fixed lens (2.8 mm, 6 mm optional)
  • CVI/CVBS/AHD/TVI switchable
  • IP67, 12 VDC

Šim produktam ir 36 mēnešu garantija.

Parametri

KopsavilkumsDahua Technology Lite 4K Smart Dual Light HDCVI Fixed-focal Bullet Camera. Type: CCTV security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/Wall/Pole, Product colour: White, Black, Form factor: Bullet. Angle of rotation: 360°, Lens viewing angle, horizontal: 105.5°, Lens viewing angle, vertical: 56.5°. Sensor type: CMOS. Detect distance: 113.6 m, Observe distance: 45.4 m, Recognize distance: 22.7 m
Ražotāja datu lapahttps://www.dahuasecurity.com/products/All-Products/HDCVI-Cameras/Lite-Series/4K/Smart-Dual-Light/HAC-HFW1801TH-IL-A=S3
Vienības kastes augstums0.11
Vienības kastes garums0.3
Vienības kastes platums0.12
TipsCCTV drošības kamera
Savienojamības tehnoloģijaVadu
product_attr.IZVIETOSANA_ATBALSTITAIekštelpu un āra
product_attr.PAPLASINATS_DINAMISKAIS_DIAPAZONS_WDRJā
product_attr.DIENASNAKTS_REZIMSJā
Formas faktorsLode (forma)
Uzstādīšanas tipsGriesti/Siena/Stabs
Produkta krāsaBalts/Melns
Apvalka materiālsMetāls/Plastmasa
product_attr.AIZSARDZIBAS_IPASIBASIzturīgs pret koroziju/Ūdensdrošs
Starptautiskās aizsardzības (IP) kodsIP67
product_attr.MINIMALA_ILUMINACIJA0 lux
product_attr.ROTACIJAS_LENKIS360 °
product_attr.LECAS_SKATA_LENKIS_HORIZONTALS105.5 °
product_attr.LECAS_SKATA_LENKIS_VERTIKALS56.5 °
product_attr.LECAS_SKATA_LENKIS_DIAGONALS125.3 °
Slīpuma leņķis0 - 90 °
product_attr.PANORAMESANAS_DIAPAZONS0 - 360 °
Baltās krāsas balanssAuto
Kameras slēdža veidsElektronisks
product_attr.KAMERAS_SLEDZA_ATRUMS1/25 - 1/100000 s
product_attr.PROGRESIVA_IZVERSEJā
Sensora tipsCMOS
product_attr.NOTEIKT_ATTALUMU113.6 m
product_attr.NOVEROSANAS_ATTALUMS45.4 m
product_attr.ATPAZIT_ATTALUMU22.7 m
product_attr.FIKSETS_FOKUSSJā
product_attr.IDENTIFICET_ATTALUMU11.4 m
Maksimālais atvērums2
Fiksēts fokusa garums3.6 mm
Tuvākā fokusēšanas distance2.1 m
Nakts redzeJā
Nakts redzamības attālums80 m
product_attr.LED_TIPSIR/balta
product_attr.LED_IZGAISMOJUMU_SKAITS4
Maksimālā izšķirtspēja3840 x 2160 pikseļi
Atbalstītās grafikas izšķirtspējas3840 x 2160/960 x 480/960 x 576
Atbalstītie video režīmi2160p/480p/576p
Kadru ātrums15 fps
product_attr.ANALOGO_SIGNALU_KOMUTACIJAS_SISTEMANTSC/PAL
Skaņas samazināšanaJā
product_attr.TROKSNU_SLAPESANAS_TEHNOLOGIJA3D trokšņu slāpēšana
product_attr.PASTIPRINAJUMA_KONTROLES_TIPSAuto
product_attr.AIZMUGURAPGAISMOJUMA_KOMPENSACIJAJā
product_attr.IZCELSANAS_KOMPENSACIJA_HLCJā
product_attr.PLATAIS_DIGITALAIS_DINAMISKAIS_DIAPAZONS_DWDRJā
Viedais IRJā
Signāla/trokšņa attiecība (SNR)65 dB
Iebūvēts mikrofonsJā
Ethernet LAN savienojumsNē
Wi-FiNē
BluetoothNē
product_attr.IEBUVETS_CIETAIS_DISKSNē
product_attr.BNC_IZEJAS_PORTI1
InterfeissBNC
product_attr.SPOGULISJā
Barošanas avota veidsLīdzstrāvas
product_attr.STRAVAS_PATERINS_MAKS7.2 W
product_attr.DC_IZEJOSAIS_SPRIEGUMS12
Darbības temperatūras amplitūda (T-T)-40 - 60 °C
Uzglabāšanas temperatūras amplitūda (T-T)-40 - 60 °C
Darbības relatīvā mitruma amplitūda0 - 95 %
Uzglabāšanas relatīvā mitruma amplitūda0 - 95 %
Platums90.7 mm
Augstums90.4 mm
Garums240.7 mm
Svars420 g
product_attr.ATBILSTIBAS_SERTIFIKATIAtbilstība Zemsprieguma iekārtu direktīva/CE/Elektromagnētiskā savietojamība (EMS)
Iepakojuma svars590 g
product_attr.KAMERU_SKAITS1
IrisJā
product_attr.OBJEKTIVA_PIEVIENOSANAS_INTERFEISSM12
product_attr.VIENIBAS_APREKINATAIS_SVARS0.65 kg
product_attr.PRECES_NETO_SVARS0.42 kg
Vienības aprēķinātais tilpums0.00396 cubm
product_attr.VIENIBU_SKAITS_VIENA_SUTIJUMA_KASTE1
Kastes svars0.65 kg
product_attr.VIENIBAS_PLATUMS12 cm
product_attr.VIENIBU_SKAITS_UZ_PALETES0
Kastes augstums11 cm
product_attr.VIENIBAS_DZILUMS30 cm
Kastes dziļums30 cm
product_attr.VIENIBAS_AUGSTUMS11 cm
Kastes platums12 cm
NosaukumsCAMERA HDCVI 8MP BULLET/HFW1801THILA-0360B-S3DIP DAHUA
