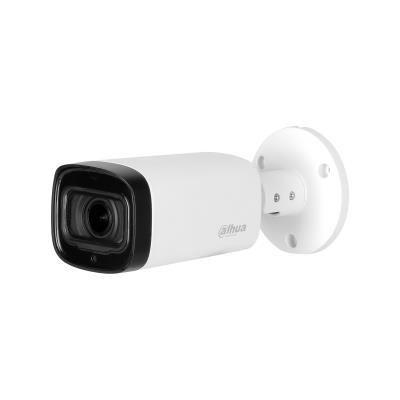

CAMERA HDCVI 1080P IR BULLET/HAC-HFW1231R-Z-A-2712 DAHUA

  • Produkta kods: HAC-HFW1231R-Z-A-2712
  • EAN: 6923172506993
  • Stāvoklis: Jauns
CenaSkaitsPiegāde

150.94

124.74 € (bez PVN 21%)

4

23.04.

Apraksts

Lite Series is suitable for users who requires high quality monitoring products at areasonable price. It is cost effective and offers high performance, which makes it an ideal choice for residential and small-medium business applications. This series offers an option of a wide range of technologies such as Full-color and Starlight, providing various solutions for different scenarios.

Starlight
With the adoption of large sized high performance sensor and large aperture lens, the camera is able to provide incomparable performance even under extreme lowlight environment. The starlight feature allows more details to be captured and accurate color to be recognized at night or in scenes with limited illumination.

Broadcast-quality Audio
Audio information is used as supplementary evidence in video surveillance applications. The HDCVI camera supports audio signal transmission over coaxial cable. In addition, it adopts unique audio processing and transmission technology that best restores source audio and eliminates noise, guaranteeing the quality and effectiveness of collected audio information.
* Audio input is available for some models of HDCVI cameras.

Wide Dynamic Range
With advanced Wide Dynamic Range (WDR) technology, Dahua HDCVI camera provides clear details in the environment of strong brightness contrast. The bright and dark area can get clear video even in high brightness environment or with backlight shadow.

Super Adapt
Embedded with intelligent algorithm, for changing external environment, camera can automatically adjust parameters to present the optimal image, and it solves the trouble of configuration.

Advanced 3D NR
3D NR is noise reduction technology that detects and eliminates random noises by comparing two sequential frames. Dahua\'s advanced 3D NR technology allows remarkable noise reduction with little impact to sharpness, especially under limited lighting condition. Besides, the advanced 3D NR effectively decreases the band width and saves the storage space.

Smart Illumination
The camera is designed with IR illumination for best lowlight performance. Smart IR is a technology to ensure brightness uniformity in B/W image under low illumination. Dahua\'s unique Smart IR adjusts to the intensity of camera\'s infrared LEDs to compensate for the distance of an object, and prevents IR LEDs from overexposing images as the object comes closer to the camera.

Protection (IP67, wide voltage)
IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can works normal after soaking in 1 m deep water for 30 mins.
Wide voltage: The camera allows ±30% (for some power supplies) input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.

  • Max. 30 fps@1080P
  • Starlight, 130dB true WDR, 3D NR
  • Auto focus, 2.7 mm–12 mm motorized lens
  • CVI/CVBS/AHD/TVI switchable
  • Super Adapt
  • Built-in mic
  • Max. IR length 80 m, Smart IR
  • IP67, 12V DC

Šim produktam ir 36 mēnešu garantija.

Parametri

SummaryDahua Technology Lite DH-HAC-HFW1231R-Z-A. Type: CCTV security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/Wall/Pole, Product colour: White, Form factor: Bullet. Minimum illumination: 0.002 lx, Angle of rotation: 360°, Lens viewing angle, horizontal: 102°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Detect distance: 132.1 m, Observe distance: 52.9 m, Recognize distance: 26.4 m
Ražotājs datu lapahttps://www.dahuasecurity.com/products/All-Products/HDCVI-Cameras/Lite-Series/1080P/Starlight/HAC-HFW1231R-Z-A
Vienība kastes augstums0.109
Vienība kastes garums0.232
Vienība kastes platums0.114
SertifikācijaCE (EN55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN55024:2010+A1:2015, EN 55035:2017, EN50130-4:2011+A1:2014, EN 62368- 1:2014+A11:2017) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Savienojamības tehnoloģijaWired
Dienas nakts režīmsYes
Dinamisks diapazons130 dB
Novietojums atbalstītsOutdoor
TipsCCTV security camera
Plats dinamisks diapazons (WDR)Yes
Formas faktorsBullet
Korpusa materiālsMetal
Starptautiskās aizsardzības (SA) kods:IP67
Montāžas veidsCeiling/Wall/Pole
Produkts krāsaWhite
rotācijas leņķis360 °
Kameras aizvara ātrums1/25 - 1/100000 s
Kamera aizvars tipsElectronic
Objektīva skatīšanās leņķis diagonāle123 °
Objektīva skatīšanās leņķis horizontāls102 °
Objektīva skatīšanās leņķis vertikāls53 °
Minimālais apgaismojums0.002 lx
Pan diapazons0 - 360 °
Noliekšana leņķis diapazons0 - 90 °
Balts BalanceAuto
Optiskais sensors izmērs1/2.8 "
Progressive skenēšanaYes
Sensors tipsCMOS
Automātisks FokusēšanaYes
Closest Focusing attālums0.5 m
Detect attālums132.1 m
Detect attālums tele132.1 m
Detect attālums plats47.6 m
Fokusa garums diapazons2.7 - 12 mm
FokusēšanaMotorized
Identify attālums13.2 m
Identify attālums tele13.2 m
Identify attālums plats4.76 m
Maksimālais aperture numurs1.5
Numurs Of objektīvi1
Observe attālums52.9 m
Observe attālums tele52.9 m
Observe attālums plats19 m
Recognize attālums26.4 m
Recognize attālums tele26.4 m
Recognize attālums plats9.5 m
LED TipsIR
Nakts redzeYes
Nakts redze attālums80 m
Numurs Of apgaismojums Leds4
Analogā signāla formāta sistēmaPAL
Muguras gaismas kompensācija BlcYes
Kadru zīmēšanas ātrums30 fps
Pastiprinājums vadība tipsAuto/Manual
Izcēlums kompensācija HlcYes
Maksimālais izšķirtspēja1920 x 1080 pixels
Trokšņa samazināšanaYes
Trokšņa samazināšana tehnoloģija3D noise reduction
Konfidencialitātes maskēšanaYes
Viedais IRYes
Atbalstīts grafika resolutions1920 x 1080 (HD 1080)/960 x 480/960 x 576
Atbalstīts video režīmi1080p
Kopējais Megapixels2 MP
Iebūvētais mikrofonsYes
Signal-to-Noise attiecība (SNR)65 dB
BluetoothNo
ETHERNET/LANNo
Wi-FiNo
Iebūvēts In HDDNo
BNC izejas porti1
SpogulisYes
Līdzstrāva Izeja Spriegums12
Barošanas consumption (max)9.4 W
Barošanas avots tipsDC
Darbības relatīvs mitrums (H-H)0 - 95 %
Darbības temperatūra (T-T)-30 - 60 °C
Glabāšana relatīvs mitrums (H-H)0 - 95 %
Glabāšana temperatūra (T-T)-30 - 60 °C
Dziļums90.4 mm
Augstums90.4 mm
Svars550 g
Platums209.6 mm
Iepakojums svars760 g
Numurs of cameras1
ModelisHAC-HFW1231R-Z-A-2712
Vienības uz piegāde kastes1
Vienība Calculated skaļums0.002883 cubm
Vienība Calculated svars0.71 kg
