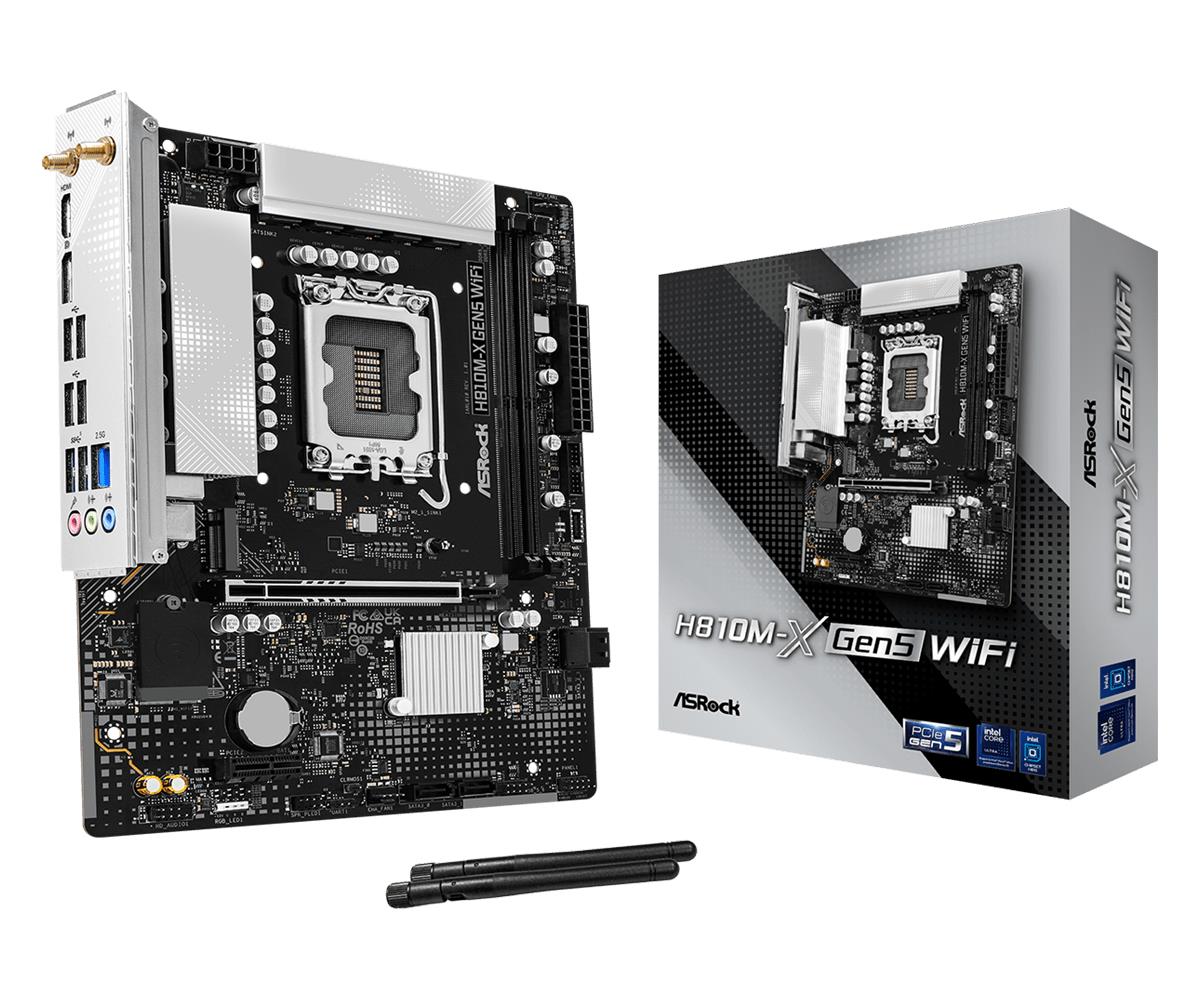

Mainboard|ASROCK|LGA 1851 (Socket V1)|RAM DDR5-SDRAM|2xSlots|H810M-XGEN5WIFI

  • Produkta kods: H810M-X GEN5 WIFI
  • EAN: 4711581493834
  • Stāvoklis: Jauns
CenaSkaitsPiegāde

122.53

101.44 € (bez PVN 21%)

1

28.07.

Apraksts

X Series motherboard offers a compact, high-value solution, balancing performance, versatility, and reliability for both professional and daily tasks.

The ASRock X-Series motherboard provides a high-value solution, balancing performance and versatility within a compact form factor. It’s highly capable in handling a wide range of tasks, from professional productivity to everyday usage, striking an excellent balance between affordability, reliability, and efficiency.

Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.

Hyper M.2 Gen4 x4
Supports PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.

Aluminum Heatsink
The first thing that catches the eye is the optimized Aluminum Heatsink Design. Heatsinks are crucial for efficient heat dissipation, especially during heavy workloads like gaming or productivity tasks. Motherboard that built with heatsinks can effectively manage thermal performance, hence ensure system stability and durability effortlessly.

Wi-Fi 6 802.11ax
Wi-Fi 6 (802.11ax) supports speeds of up to 2.4 Gbps and operates natively across both the 2.4 GHz and 5 GHz bands. It also delivers significantly improved bi-directional MU-MIMO support for more efficient multi-device connectivity.

M.2 (KEY E) For WiFi
Besides the onboard LAN port, users may also choose wireless connections by M.2 (Key E) slot.

Dragon 2.5 Gb/s LAN
The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.

Front USB 3.2 Gen1 Type-C
Front USB 3.2 Gen1 Type-C header delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.

POLYCHROME RGB
This motherboard features onboard RGB headers and addressable RGB headers that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.

SignalRGB
SignalRGB unifies your RGB devices, offering seamless customization, game-reactive effects, macro automation, and system monitoring. The official partnership empowers ASRock motherboards with advanced lighting control, enhances compatibility with a diverse range of RGB devices, and provides greater customization flexibility.

Šim produktam ir 36 mēnešu garantija.

Parametri

KopsavilkumsAsrock H810M-X Gen5 WiFi. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: SATA III, M.2. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Dragon RTL8125BG, Top Wi-Fi standard: Wi-Fi 6 (802.11ax). Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel
Ražotāja datu lapahttps://www.asrock.com/MB/Intel/H810M-X%20Gen5%20WiFi/index.asp#Specification
CN kods84733020
Vienības kastes augstums0.265
Vienības kastes garums0.26
Vienības kastes platums0.06
Audio mikroshēmaRealtek ALC897
Audio izvades kanāli7.1 channels
KomponentsPC
Mātesplates mikroshēmu komplektsIntel H810
Mātesplates mikroshēmu komplekta saimeIntel
Mātesplates formas faktorsmicro ATX
Atbalstītās Windows operētājsistēmasWindows 11 x64
Saderīgo procesoru sērijaIntel Core Ultra (Series 2)
Procesora ražotājsIntel
Procesora ligzdaLGA 1851 (Socket V1)
ECC saderībaNon-ECC
Maksimālā iekšējā atmiņa128 GB
Atmiņas kanāliDual-channel
Atmiņas slotu tipsDIMM
Atmiņas slotu skaits2
Atbalstītie atmiņas tipiDDR5-SDRAM
Nebuferēta atmiņaYes
Atbalstītās glabāšanas disku saskarnesSATA III,M.2
HDCPYes
HDCP versija2.3
ATX barošanas savienotājs (24 kontaktu)Yes
CPU ventilatora savienotājsYes
EPS barošanas savienotājs (8 kontaktu)Yes
Priekšējā paneļa audio savienotājsYes
Šasijas ventilatoru savienotāju skaits1
CPU ventilatora savienotāju skaits1
SATA III savienotāju skaits4
RGB LED kontaktrindaYes
TPM savienotājsYes
USB 2.0 savienotāji1
USB 3.2 Gen 1 (3.1 Gen 1) savienotāji2
DisplayPort versija1.4
DisplayPort pieslēgvietu skaits1
Ethernet LAN (RJ-45) pieslēgvietas1
HDMI portu skaits1
Līnijas ieejaYes
Mikrofona ieejaYes
USB 2.0 portu skaits4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A portu skaits2
BluetoothYes
Bluetooth versija5.3
Ethernet saskarnes tips2.5 Gigabit Ethernet
Ethernet/LANYes
LAN kontrollerisDragon RTL8125BG
Augstākais Wi-Fi standartsWi-Fi 6 (802.11ax)
Wi-FiYes
Wi-Fi standarti802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)
M.2 M slotu skaits1
PCI Express x1 (Gen 4.x) sloti1
PCI Express x16 (Gen 5.x) sloti1
BIOS atmiņas izmērs256 Mbit
BIOS tipsUEFI AMI
Dziļums193 mm
Platums244 mm
Antena iekļautaYes
Komplektā iekļauti kabeļiSATA
Vienības paletē0
Vienības piegādes kastē10
Vienības aprēķinātais tilpums0.005111 cubm
Vienības aprēķinātais svars1.05 kg
