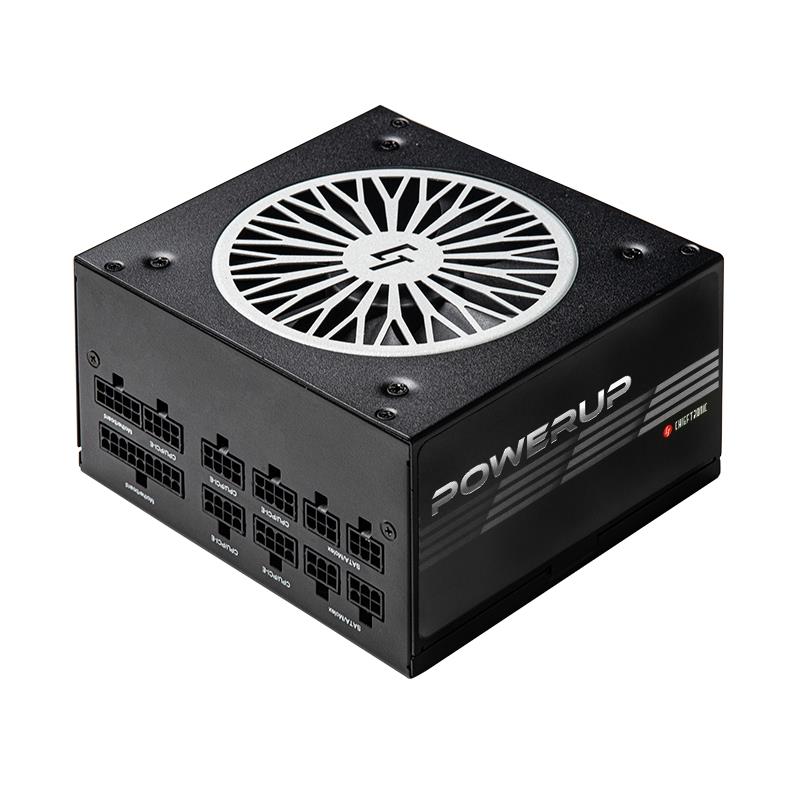

Power Supply|CHIEFTEC|850 Watts|Efficiency 80 PLUS GOLD|PFC Active|GPX-850FC

  • Produkta kods: GPX-850FC
  • EAN: 753263077202
  • Stāvoklis: Jauns
CenaSkaitsPiegāde

96.27

79.56 € (bez PVN 21%)

50

23.04.

Apraksts

With the PowerUp series, Chieftec aims to bring the well-received technical quality and high performance of the PowerPlay series to the mainstream gamer’s market. With modern full-bridge LLC and DC-to-DC technology, extremely low ripple values and tight voltage regulation can be achieved.

A high power-density design allows this series to deliver up to 850W of power in a compact form factor, measuring only 14 cm in total length, while achieving 80 PLUS® Gold certified efficiency. The compact size combined with the fully modular cable management, allows the PowerUp series to be used conveniently in smaller builds, where a short PSU is needed, while long, flat, black cables support builds even in very
large gaming cases.

  • 80 PLUS® Gold certified efficiency
  • Fully modular cable management
  • Full-bridge LLC converter with DC-to-DC technology
  • Low ripple and tight voltage regulation

Šim produktam ir 24 mēnešu garantija.

Parametri

SummaryChieftec PowerUp GPX-850FC. Total power: 850 W, AC input voltage: 100 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 65 cm, SATA power cable length: 500,650,800 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Fan diameter: 12 cm, Number of fans: 1 fan(s). Cables included: AC, CPU, PCIe, Peripheral (Molex), SATA
Ražotājs datu lapahttps://www.chieftec.eu/products-detail/326/PowerUP_SERIES/330/GPX-850FC
CnCode85044095
Vienība kastes augstums0.22
Vienība kastes garums0.305
Vienība kastes platums0.125
Ievades frekvence47 - 63 Hz
Ieejas spriegums100 - 240 V
Kombinētā jauda (+12V)846 W
Kombinētā jauda (+3,3 V)110 W
Kombinētā jauda (+5V)110 W
Kombinētā jauda (+5Vsb)12.5 W
Kombinētā jauda (-12V)3.6 W
Ieejas strāva12 A
Max izejas strāva (+12V)70.5 A
Max izejas strāva (+3.3V)20 A
Max izejas strāva (+5V)20 A
Max izejas strāva (+5Vsb)2.5 A
Max izejas strāva (-12V)0.3 A
Barošanas faktors korekcija (PFC) tipsActive
Barošanas aizsardzība funkcijasOver current/Over power/Over voltage/Short circuit/Under voltage
Kopējais barošanas850 W
ATX barošanas savienotājs (20+4 kontakti)Yes
Kabeļu veidsFully-Modular
Centrālā procesora barošanas kabeļa garums800 mm
Centrālā procesora barošanas savienotājs (4+4 kontakti)Yes
Diskešu diskdziņa barošanas savienotājs1
Motherboard barošanas kabeļa garums650 mm
Motherboard barošanas savienotājs20+4 pin ATX
Numurs of SATA barošanas savienotāji9
PCI Express jauda kabelis garums650 mm
PCI Express jauda connectors (6+2 pin)6
Peripheral (Molex) barošanas kabeļa garums500/650/800/950 mm
Peripheral (Molex) barošanas savienotāji (4-pin)3
SATA jauda kabelis garums500/650/800 mm
80 plus sertifikācija80 PLUS Gold
ATX versija2.53
Barošanas barošana vienība (PSU) formas faktorsATX
MērķisPC
Ventilatora diametrs120 mm
Ventilatora atrašanās vietaTop
Numurs Of Fans1 fan(s)
On/off slēdzisYes
Produkts krāsaBlack
Komplektā iekļauti kabeļiAC,CPU,PCIe,Peripheral (Molex),SATA
Sertifikācija80PLUS Gold
Dziļums140 mm
Augstums86 mm
Svars2400 g
Platums150 mm
Iepakojums tipsBox
Iepakojums svars2950 g
Harmonizētās sistēmas (HS) kods84733020
Vienības uz palete0
Vienības uz piegāde kastes4
Vienība Calculated skaļums0.01039 cubm
Vienība Calculated svars2.95 kg
