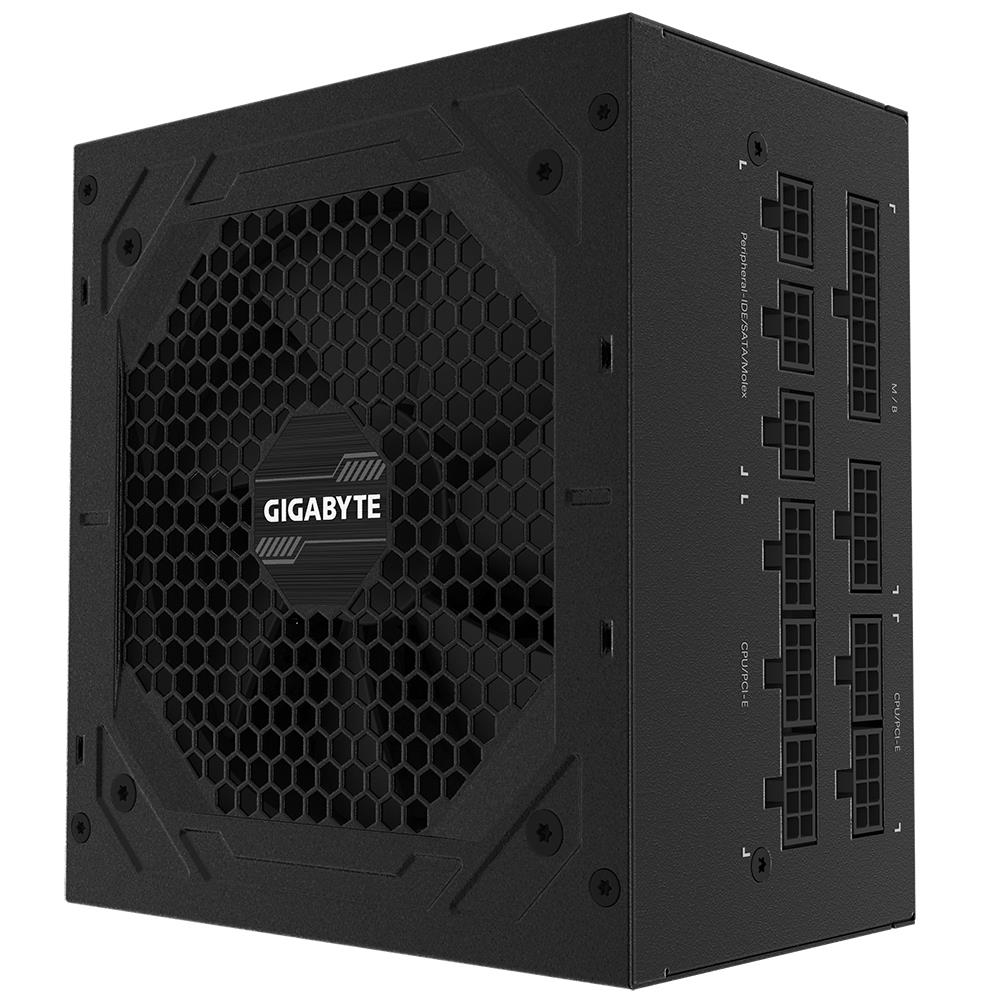

Power Supply|GIGABYTE|GP-P750GM|750 Watts|Efficiency 80 PLUS GOLD|PFC Active|MTBF 100000 hours|GP-P750GM

  • Produkta kods: GP-P750GM
  • EAN: 4719331551759
  • Stāvoklis: Jauns
CenaSkaitsPiegāde

92.98

77.02 € (bez PVN 21%)

15

23.07.

Apraksts

FULLY MODULAR DESIGN
All the black flat cables are modular design. Installing only the cables you need to reduce clutter, to increase the airflow and to improve the chassis thermal performance.

80 PLUS GOLD CERTIFIED
80 Plus Gold certified ensures to deliver 90% efficiency at 50% load. The better power efficiency leads to less power waste, less heat and less fan noise. And with the support of Intel processors, it will save more energy and more money.

HIGH QUALITY JAPANESE CAPACITORS
The main capacitors are high quality Japanese capacitors, to produce the efficient performance and to ensure the longer reliability.

120MM SMART HYDRAULIC BEARING (HYB) FAN
The fan speed is adjusted according to the automatic power detection and will stop when the system is idle or under low load (less than 20% load). The Hydraulic Bearing fan provides longer and more stable life time.

SINGLE +12V RAIL
Single +12V rail provides the best power output, stability and compatibility for the hardware. It provides the easiest way to install the power cable. And it is the best design for overclocking.

PROTECTION
In order to make sure the entire computer system to operate stably under any conditions, we not only added protection designs such as OCP, OTP, OVP, OPP, UVP and SCP, but also ensured the stable operation of your system through the safety certification of various countries.

  • 80 PLUS Gold certified
  • Fully modular design
  • 120mm Smart Hydraulic Bearing (HYB) Fan
  • Main Japanese capacitors
  • Powerful single +12V rail
  • OVP/OPP/SCP/UVP/OCP/OTP protection
  • 5 years warranty (Adjusted according to different regions)

Šim produktam ir 24 mēnešu garantija.

Parametri

KopsavilkumsGIGABYTE P750GM. Total power: 750 W, AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, SATA power cable length: 150,600 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Cables included: CPU, PCIe, Peripheral (Molex), SATA
Ražotāja datu lapahttps://www.gigabyte.com/Power-Supply/GP-P750GM#kf
CN kods85044095
Vienības kastes augstums0.21
Vienības kastes garums0.255
Vienības kastes platums0.12
Maiņstrāvas ieejas frekvence50 - 60 Hz
Maiņstrāvas ieejas spriegums100 - 240 V
Efektivitāte90 %
Aizturēšanas laiks16 ms
Ieejas strāva12-6 A
Jaudas koeficienta korekcijas (PFC) tipsActive
Barošanas aizsardzības funkcijasOver current/Over power/Over voltage/Overheating/Short circuit/Under voltage
Kopējā jauda750 W
ATX barošanas savienotājs (20+4 kontaktu)Yes
Kabeļu veidsFully-Modular
Centrālā procesora barošanas kabeļa garums600 mm
Centrālā procesora barošanas savienotājs (4+4 kontakti)Yes
EPS barošanas savienotājs (4+4 kontaktu)Yes
Diskešu diskdziņa kabeļa garums120 mm
Diskešu diskdziņa barošanas savienotājs1
Mātesplates barošanas kabeļa garums610 mm
Mātesplates barošanas savienotājs20+4 pin ATX
SATA barošanas savienotāju skaits8
PCI Express savienotājsYes
PCI Express barošanas kabeļa garums600 mm
PCI Express barošanas savienotāji (6+2 pin)4
Peripheral (Molex) barošanas kabeļa garums120/500 mm
Peripheral (Molex) barošanas savienotāji (4 pin)4
SATA barošanas kabeļa garums150/600 mm
80 Plus sertifikācija80 PLUS Gold
ATX versija2.31
Vidējais laiks starp atteicēm (MTBF)100000 h
Barošanas bloka (PSU) formas faktorsATX
MērķisPC
Dzesēšanas tipsActive
Ventilatora diametrs120 mm
Ventilatora atrašanās vietaTop
Ventilatoru skaits1 fan(s)
Produkta krāsaBlack
Komplektā iekļauti kabeļiCPU,PCIe,Peripheral (Molex),SATA
Dziļums140 mm
Augstums86 mm
Platums150 mm
Harmonizētās sistēmas (HS) kods84733020
Modeļa nosaukumsGP-P750GM
Vienības piegādes kastē5
Vienības aprēķinātais tilpums0.008137 cubm
Vienības aprēķinātais svars2.63 kg
