Case|CHIEFTEC|VISIO GM-30B-TG-OP|MidiTower|Case product features Transparent panel|Not included|ATX|MicroATX|MiniITX|Colour Black|GM-30B-TG-OP

  • Produkta kods: GM-30B-TG-OP
  • EAN: 753263078681
  • Stāvoklis: Jauns
CenaSkaitsPiegāde

84.25

69.80 € (bez PVN 21%)

30

23.07.

113.21

94.43 € (bez PVN 21%)

13

30.07.

Apraksts

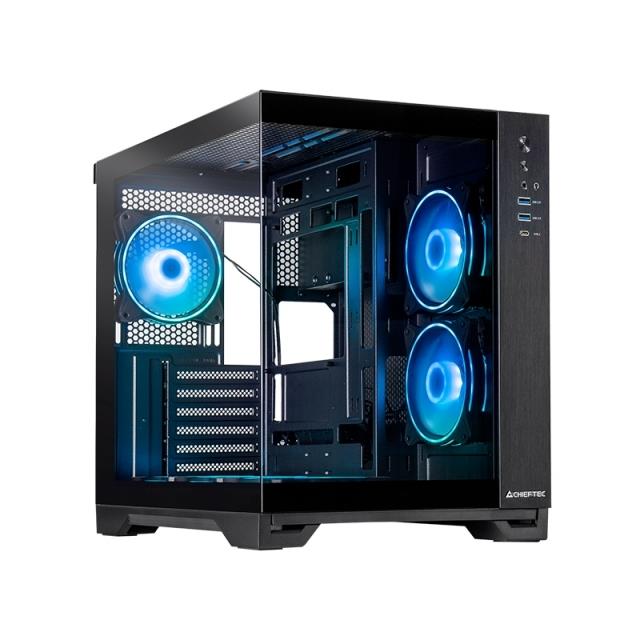

The CHIEFTEC Visio features tempered glass panels on both the left and front sides, incorporating a dual-chamber layout to accommodate the latest back-connect motherboards (ASUS BTF and MSI Project Zero compatible). This design streamlines cable management for a clean interior view and unobstructed airflow.

The refined internal layout supports the mounting of 360mm radiators on the top and bottom, 240mm radiators on the motherboard side, and CPU tower coolers up to 175mm in height. High-end GPUs up to 410mm can be easily accommodated, thanks to its spacious and well-ventilated conguration.

The case comes with six pre-installed 120mm A-RGB fans and a control hub for motherboard synchronization of A-RGB and PWM fan speed control. 5 of these fans are designed with reverse airflow fan blades to enable the optimum intake on the sides and the bottom without sacricing on the aesthetics. Designed with gamers in mind, the CHIEFTEC Visio provides the opportunity to create a distinctive build.

  • Tempered glass front & side panels
  • Dual-chamber design
  • Compatibility with back-connect motherboards
  • 6 x 120mm A-RGB fans pre-installed
  • A-RGB control hub with M/B sync and PWM fan speed control

Šim produktam ir 24 mēnešu garantija.

Parametri

KopsavilkumsChieftec Visio GM-30B-TG-OP schwarz Tempered Glass x 2. Form factor: Cube, Type: PC, Product colour: Black. Side fans installed: 2x 120 mm, Rear fans installed: 1x 120 mm, Bottom fans installed: 3x 120 mm. Supported HDD sizes: 2.5,3.5". Width: 295 mm, Depth: 430 mm, Height: 390 mm
Ražotāja datu lapahttps://www.chieftec.eu/products-detail/589/GM-30B-TG-OP
Vienības kastes augstums0.515
Vienības kastes garums0.48
Vienības kastes platums0.37
Pretputekļu filtrsYes
Formas faktorsCube
Pilna augstuma paplašināšanas spraugas6
ApgaismojumsYes
Apgaismojuma krāsaMulti
Maksimālais CPU dzesētāja augstums175 mm
Maksimālais grafikas kartes garums410 mm
Maksimālais PSU garums200 mm
2,5 collu nodalījumu skaits2
3,5 collu nodalījumu skaits2
Paplašināšanas slotu skaits6
Iekšējo 3,5 collu nodalījumu skaits2
Atbalstīto krātuves disku skaits4
Produkta krāsaBlack
Sānu logsYes
PiemērotsGaming
Atbalstītie mātesplates forma faktoriATX/micro ATX
Rūdīta stikla panelis(-ļi)Yes
TipsPC
Barošanas bloks iekļautsNo
Kombinētā austiņu/mikrofona pieslēgvietaYes
USB 3 02
USB 3.2 Gen 1 (3.1 Gen 1) Type-A portu skaits2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C portu skaits1
Uzstādīti apakšējie ventilatori3x 120 mm
Ventilatora ātruma kontroleYes
Šķidruma dzesēšanas spējaYes
Uzstādītie aizmugurējie ventilatori1x 120 mm
Uzstādītie sānu ventilatori2x 120 mm
Atbalstītie augšējā radiatora izmēri240/280/360 mm
HDD/SSD kombinētais ietvarsYes
Atbalstītie HDD izmēri2.5/3.5 "
Dziļums430 mm
Augstums390 mm
Svars7300 g
Platums295 mm
Modeļa nosaukumsVISIO GM-30B-TG-OP
Korpusa produkta funkcijasTransparent panel
ModelisGM-30B-TG-OP
Vienības piegādes kastē1
Vienības aprēķinātais tilpums0.09146 cubm
Vienības aprēķinātais svars8.67 kg
