CASE FAN 140MM/G99.14RSLIN1B.00 LIAN LI

  • Produkta kods: G99.14RSLIN1B.00
  • EAN: 840353045637
  • Stāvoklis: Jauns
CenaSkaitsPiegāde

31.52

26.05 € (bez PVN 21%)

50

23.04.

Apraksts

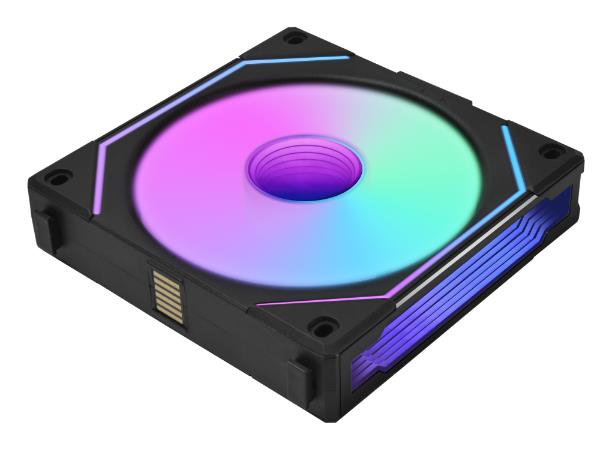

Infinity Mirror ARGB Fan​
Introducing a new look to PC fans and a new level of installation simplicity and light effect customizability.

CONSISTENT APPEARANCE
No matter intake or exhaust SL-INF fans

INFINITY MIRROR FAN
A combination of the original UNI FAN SL and AL with a touch of infinity mirror, the SL-Infinity fans glow clear with multi-layer effects from any visible angle.

CENTERED INFINITY MIRROR ARGB
The circular-shaped infinity mirror at the center of the fan is tuned to have multiple layers spaced 0.5mm apart.

SIDE FRAME ARGB
Following the iconic angular lighting style of SL fans, the SL-Infinity fans have 2 thin LED strips on both sides of the fan blade.

ALUMINUM TRIM SURROUNDED INFINITY MIRROR
Surrounding aluminum trims are located on both sides of the frame. The geometric shape of the infinity mirror follows the front ARGB lighting strip in a top and bottom pattern that creates a 3D indented look.

REAR RIM OF LED AROUND THE ALUMINUM LOGO
The circular-shaped infinity mirror at the center of the fan is tuned to have multiple layers spaced 0.5mm apart.

UNPRECEDENTED MODULARITY
The 2nd generation of UNI FAN SL revisits the interlocking style that can connect up to 4 fans in a cluster and makes cable management simpler and improves compatibility with radiators fittings.

DAISY CHAIN FAN
A pin-to-pad contact point passes the signal and power through the fan cluster.

REMOVABLE KEYLOCK
The interlocking key on each fan is now removable to improve compatibility with radiators fittings.

REVERSIBLE CABLE MODULE
The cable module is now placed at the center of the fan and can switch orientation to reduce clearance issues with the radiator inlet and outlet.

UNCOMPROMISED PERFORMANCE
The UNI FAN SL-INF Reverse blade operates with a slightly higher noise level with a better airflow (63.6 CFM Max) comparing to the original UNI FAN SL-INF.

LOWER WIND NOISE
When installed as intake fan with the reverse blade, the wind noise is lower than the regular blade.

THE SAME CONTROLLER AS SL-INF 16 FANS IN ONE GO FOR EACH GROUP OF FANS
The included controller is in the SLIN120 Triple Pack,supporting up to 16 fans (4 fans in each group) and 2 SM-type connecting devices.

L-CONNECT 3 SOFTWARE TO CONTROL SL-INF FANS
Control and preview with precision the lighting effect of the SL-Infinity fans with the new L-Connect interface.

ENDLESS LIGHTING EFFECTS
Similar to the AL fans, L-Connect 3 can set the lighting effects of the SL-Infinity fans for both the fan blades and the fan frame inner edges separately, or go with pre-set combined lighting effects.

INTELLIGENT START/ STOP FAN
Unique to the SL-Infinity fans, L-Connect 3 features a Start/ Stop mode to completely stop the fan when the CPU or GPU is running below your set temperature (the maximum 50°C), achieving minimal acoustic levels when the system is at low temperature.

SYNC FAN SPEED TO MOTHERBOARD
L-Connect 3 now offers an option to sync fan speed to the motherboard, also known as the PWM mode in the earlier L-Connect version.

QUICK SYNC LIGHTING WITH UNI FAN SL/ AL AND STRIMER PLUS V1/V2
The quick sync function saves time to synchronize all LIAN LI device lighting effects with one click. Moreover, synchronize all devices to the motherboard software with one click.

  • Infinity mirror look all around
  • Reversed Blade fan that intakes air while seeing the infinity effect
  • Only one cable is required for a cluster of fans
  • Embedded magnetic Fluid Dynamic Bearing to provide stability, durability, and longevity
  • 40 LEDs in each fan
  • Quick PIN connection to provide ease of installation
  • Optimized for mounting at the bottom of the case or on top of the radiator

Šim produktam ir 24 mēnešu garantija.

Parametri

SummaryLian Li 14RSLIN1B. Type: Fan, Fan diameter: 14 cm, Rotational speed (min): 200 RPM, Rotational speed (max): 1600 RPM, Bearing type: Fluid Dynamic Bearing (FDB). Voltage: 12 V. Width: 140 mm, Depth: 142 mm, Height: 25 mm. Product colour: Black
Ražotājs datu lapahttps://lian-li.com/product/uni-fan-sl-infinity-reverse-blade/
Vienība kastes augstums0.035
Vienība kastes garums0.195
Vienība kastes platums0.155
Bearing tipsFluid Dynamic Bearing (FDB)
Ventilatora Bearing tehnoloģijaFluid Dynamic Bearing (FDB)
Ventilatora diametrs140 mm
Ventilatora trokšņa līmenis Max28.6 dB
Ventilatora ātrums Max2100 RPM
Ventilatora ātrums Min200 RPM
Maksimālā gaisa plūsma71.6 cfm
Trokšņa līmenis (high speed)28.6 dB
Trokšņa līmenis zems ātrums29 dB
Rotācijas ātrums (max)1600 RPM
Rotācijas ātrums (min)200 RPM
Suitable atrašanās vietaComputer case
TipsFan
Apgaismojuma krāsaMulti
Apgaismojums LEDYes
MateriālsAluminium/Polycarbonate (PC)/Thermoplastic polyester (PBT)
Numurs Of Fans1 fan(s)
Produkts krāsaBlack
LED Spriegums5 V
Barošanas barošana4.56 W
Rated strāva0.13 A
Rated spriegums12 V
Sākuma spriegums6 V
Spriegums12 V
Dziļums142 mm
Augstums25 mm
Platums140 mm
Garantija period2 year(s)
ModelisUNI FAN SL-INF 140 REVERSE BLADE
Modelis Nosaukums14RSLIN1B BALCK
Vienības uz piegāde kastes30
Vienība Calculated skaļums0.001435 cubm
Vienība Calculated svars0.35 kg
