UPS|TECNOWARE|1000 VA|Phase 1 phase|FGCERAPLS1002SCH

  • Produkta kods: FGCERAPLS1002SCH
  • EAN: 8026475176363
  • Stāvoklis: Jauns
CenaSkaitsPiegāde

102.83

85.16 € (bez PVN 21%)

9

28.07.

Apraksts

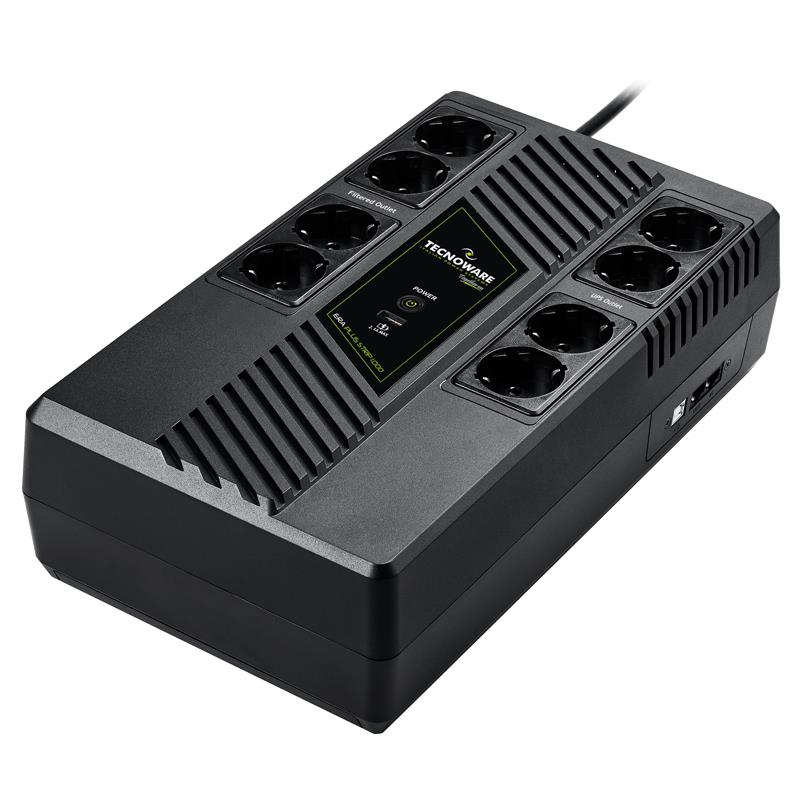

UPS ERA PLUS STRIP 1000VA TOGETHER ON. Line interactive plus technology. Dimensions 20x10x34,5 cm, weight 4,4 kg, Backup time up to 20 min. Designed for PCs, printers, telematic cash registers and pos. It has 4 schuko/italian 10A type outputs protected against blackout, overvoltages and undervoltages and 4 schuko /italian 10A type outputs protected against overvoltages and undervoltages. Equipped with LED for signaling the operating status and a USB interface for UPS control and on/off programming via the free Tecnomanager software.

  • Complete protection against blackout and power surges (overvoltages and undervoltages)
  • Recommended for Personal Computers, DVR / NVR and video surveillance systems, ADSL / fiber modem, switch / router, cash registers
  • Not suitable with power supplies with Active PFC circuit (Server, PC game, video game console, workstation, Mac computer), lamps and electric motors
  • AVR Automatic Voltage Regulator electronic circuit
  • n°8 Italian/Schuko output sockets and n°1 schuko input cable
  • n°4 sockets outlets protected against blackout
  • n°4 sockets outlets protected against overvoltages
  • Multifunction LED and on-off button
  • USB port for UPS control and monitoring and on / off programming via Tecnomanager software
  • USB on the front for fast smartphone/tablet charging
  • UPS TecnoManager management software compatible with Windows, Mac OS X, Linux etc

Šim produktam ir 24 mēnešu garantija.

Parametri

KopsavilkumsTecnoware Era Plus Strip 1000. UPS topology: Line-Interactive, Output power capacity: 1 kVA, Output power: 700 W. AC outlet types: Type F, AC outlets quantity: 8 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Typical backup time at full load: 10 min. Form factor: Compact, Product colour: Black, Cooling type: Passive. Certification: CE
Ražotāja datu lapahttps://cmsstd.tecnoware.com/en-US/Dettaglio/Articolo/453
Vienības kastes augstums0.27
Vienības kastes garums0.43
Vienības kastes platums0.15
Automātiska sprieguma regulēšana (AVR)Yes
Ievades frekvence50/60 Hz
Ieejas darbības spriegums (maks.)230 V
Trokšņa līmenis40 dB
Izejas fāžu skaits1
Izejas frekvence50/60 Hz
Maksimālais izejas darbības spriegums230 V
Izejas jauda700 W
Izejas jaudas ietilpība1 kVA
Jaudas koeficients0.7
Atbildes laiks2 ms
UPS topoloģijaLine-Interactive
Viļņa formaPseudo sine
Maiņstrāvas rozešu tipiType F
Maiņstrāvas rozešu skaits8 AC outlet(s)
Akumulatora tehnoloģijaSealed Lead Acid (VRLA)
Tipiskais rezerves barošanas laiks pie pilnas slodzes10 min
Dzesēšanas tipsPassive
Formas faktorsCompact
Produkta krāsaBlack
Darbības augstums0 - 3000 m
Darbības relatīvais mitrums (H-H)0 - 95 %
Darbības temperatūra (T-T)0 - 40 °C
SertifikācijaCE
Dziļums345 mm
Augstums100 mm
Svars4400 g
Platums200 mm
Iepakojuma dziļums425 mm
Iepakojuma augstums146 mm
Iepakojuma platums269 mm
Vienības paletē0
Vienības piegādes kastē3
Vienības aprēķinātais tilpums0.02042 cubm
Vienības aprēķinātais svars5.83 kg
