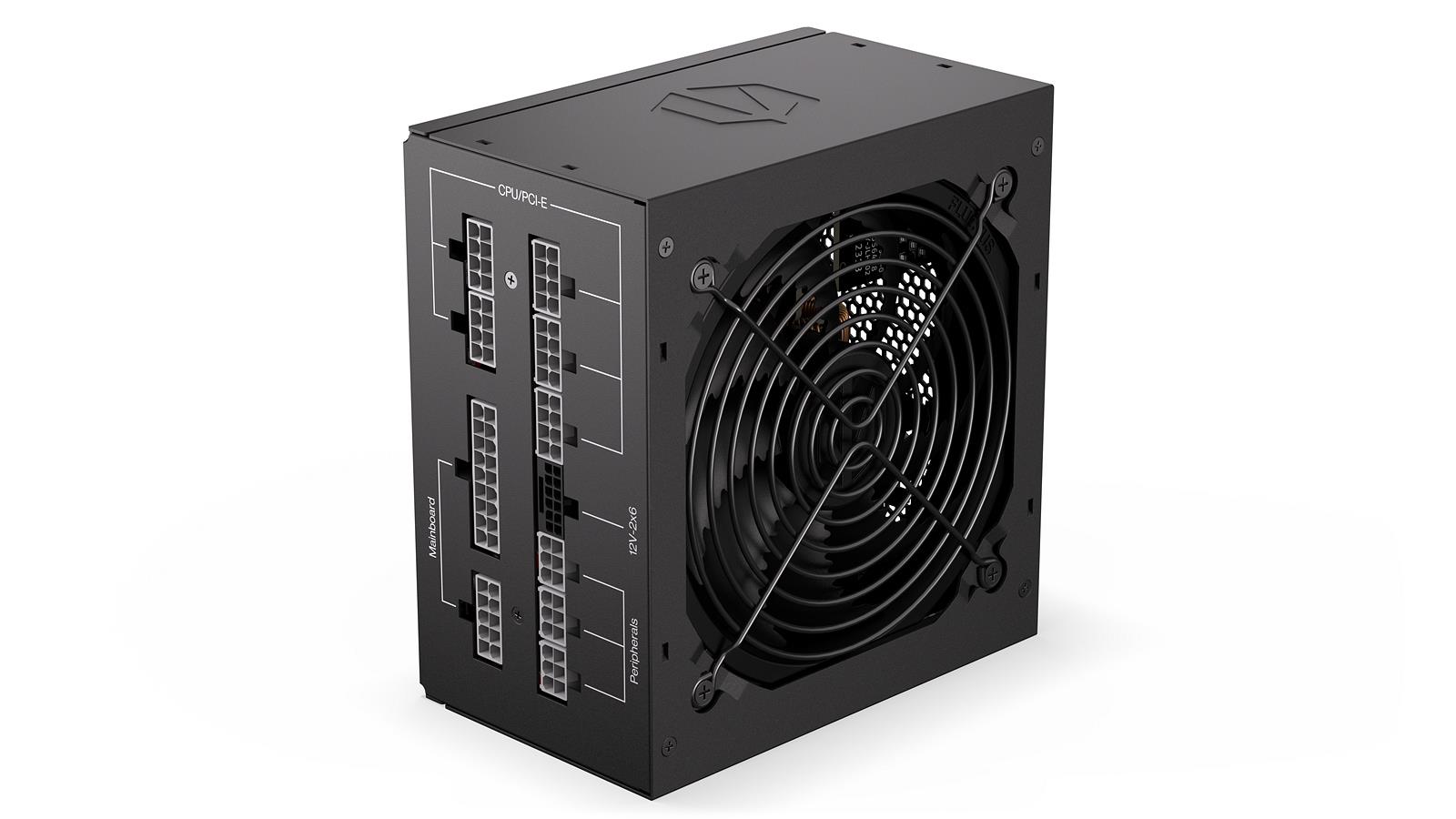

Power Supply|ENDORFY|SUPREMO FM6|100 - 240 V|1000 W|EY7A011

  • Produkta kods: EY7A011
  • EAN: 5903018667942
  • Stāvoklis: Jauns
CenaSkaitsPiegāde

181.11

149.68 € (bez PVN 21%)

10

23.04.

Apraksts

Supremo FM6 1000 W is a fully modular modern ATX 3.1-compliant power supply unit, providing stable operation and supporting PCIe 5.1 GPUs. 80 PLUS® Gold certificate confirms its high efficiency, while a Fluctus fan guarantees quiet work. Thanks to the Japanese capacitors and a 10-year warranty, it’s a reliable solution for avid gamers and professionals alike.

Supremo FM6 1000 W
Supremo FM6 1000 W is a modular ATX 3.1 PSU for demanding users that supports PCIe 5.1 graphics cards. It boasts high power efficiency confirmed by an 80 PLUS® Gold certificate. The power supply’s design utilizes only the Japanese capacitors that guarantee its long service life.

The quiet Fluctus 120 mm fan and optimized component placement ensure low temperatures with almost noiseless operation. Additionally, the modular cables make it easier to keep the surrounding space in order. The PSU also has a security package that protects it from overloading and power surges. Its quality is additionally confirmed by a 10-year warranty.

Ready for latest ATX 3.1 standards
Supremo FM6 1000 W is a power supply unit compliant with the ATX 3.1 standard. Its major advantages include even better performance, stability, and resistance to momentary power spikes than previous ATX standards. The set includes the 12V-2x6 cable fully compatible with PCIe 5.1 cards. A traditional PCI-E 6+2 PIN splitter is also included to handle GPUs with classic power supply systems.

80 PLUS® Gold – supreme performance and reliability
The 80 PLUS® Gold certificate confirms the high efficiency of the Supremo FM6 1000 W power supply unit. Thanks to its excellent quality and refined design, the unit is characterized by low-noise and low-temperature operation, resulting in its extended service life. 

Silence first
Supremo FM6 1000 W has been designed with maximum user comfort in mind. Thanks to the optimized component setup streamlining the air flow and a high-performance cooling system, the PSU runs exceptionally quietly and retains low temperature even under full load.

Premium class capacitors made in Japan
All capacitors installed in the Supremo FM6 1000 W power supply unit are reliable, premium-class components made in Japan. They retain their operating parameters even at high temperatures (105 °C), enabling them to perform faultlessly and stably for years to come, even under extremely demanding operating conditions. 

Šim produktam ir 24 mēnešu garantija.

Parametri

SummaryENDORFY Supremo FM6 1000 W. Total power: 1000 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 24-pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 560,720,880 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Cables included: AC
Ražotājs datu lapahttps://endorfy.com/en/product/supremo-fm6-850-w/
CnCode85044095
Vienība kastes augstums0.22
Vienība kastes garums0.1
Vienība kastes platums0.27
Ievades frekvence50/60 Hz
Ieejas spriegums100 - 240 V
Kombinētā jauda (+12V)996 W
Kombinētā jauda (+3,3 V)100 W
Kombinētā jauda (+5V)100 W
Kombinētā jauda (+5Vsb)15 W
Kombinētā jauda (-12V)3.6 W
Ieejas strāva13 - 6.5 A
Max izejas strāva (+12V)83 A
Max izejas strāva (+3.3V)20 A
Max izejas strāva (+5V)20 A
Max izejas strāva (+5Vsb)3 A
Max izejas strāva (-12V)0.3 A
Barošanas faktors korekcija (PFC) tipsActive
Barošanas aizsardzība funkcijasOver current/Over power/Over voltage/Short circuit/Surge & inrush protection (SIP)/Under temperature/Under voltage
Kopējais barošanas1000 W
Kabeļu veidsFully-Modular
EPS barošanas savienotājs (4+4 kontaktu)Yes
EPS barošanas savienotājs (8 kontaktu)Yes
Motherboard barošanas kabeļa garums600 mm
Motherboard barošanas savienotājs24-pin ATX
Numurs of SATA barošanas cables3
Numurs of SATA barošanas savienotāji8
PCI Express jauda kabelis garums560 mm
PCI Express jauda connectors (12+4 pin)1
PCI Express jauda connectors (6+2 pin)3
Peripheral (Molex) barošanas kabeļa garums880 mm
Peripheral (Molex) barošanas savienotāji (4-pin)1
SATA jauda kabelis garums560/720/880 mm
80 plus sertifikācija80 PLUS Gold
ATX versija3.1
Gultņu tehnoloģijaFDB
product_attr.CYBENETICS_CERTIFICATIONPlatinum
Vidējais laiks between failures (MTBF)100000 h
Barošanas barošana vienība (PSU) formas faktorsATX
MērķisPC
Dzesēšanas tipsActive
Ventilatora diametrs120 mm
Ventilatora atrašanās vietaTop
ApgaismojumsNo
LED indikatoriNo
Numurs Of Fans1 fan(s)
On/off ventilatora slēdzisNo
On/off slēdzisYes
Produkts krāsaBlack
Komplektā iekļauti kabeļiAC
Atbilstības sertifikātiCB/CCC/CE/Federal Communications Commission (FCC)/RoHS/UKCA
Dziļums150 mm
Augstums87 mm
Platums140 mm
ManuālsYes
Iepakojums dziļums270 mm
Iepakojums augstums95 mm
Iepakojums tipsBox
Iepakojums svars2740 g
Iepakojums platums220 mm
NesaturCadmium/Lead/Mercury
Sustainability certificatesErP
Garantija period10 year(s)
Modelis NosaukumsSupremo FM6 1000 W
Vienības uz piegāde kastes1
Vienība Calculated skaļums0.00594 cubm
Vienība Calculated svars2.8 kg
