Power Supply|ENDORFY|EY7A007|650 Watts|Efficiency 80 PLUS GOLD|MTBF 100000 hours|EY7A007

  • Produkta kods: EY7A007
  • EAN: 5903018666167
  • Stāvoklis: Jauns
CenaSkaitsPiegāde

114.06

94.44 € (bez PVN 21%)

1

23.07.

Apraksts

The Supremo FM5 Gold 650W is an efficient power supply with a 120 mm Fluctus fan that ensures your PC runs stably without unexpected resets interruptions. This bad boy is equipped with Japanese electrolytic and aluminum-polymer capacitors so you can squeeze the last juices out of it without a hitch. No wonder it is 80 PLUS® Gold certified ;)

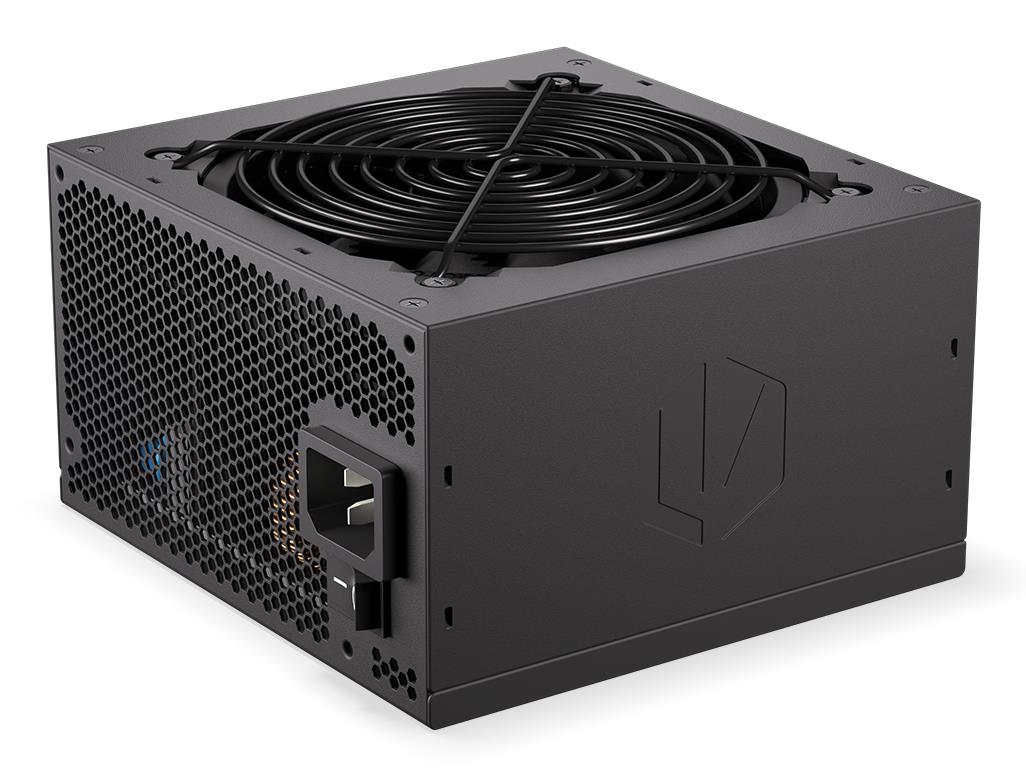

Supremo FM5 Gold 650W

When you\'ve spent half your life by the computer, you know that stable component operation = trouble-free boss battles (including those in the office). And that\'s why we created the Supremo FM5 Gold 650W.

It\'s an efficient and relatively small (14 cm long) power supply with DC-DC topology dedicated to special tasks demanding components. We\'re serious – we\'ve packed in everything we think you need to fine-tune the voltage and deliver continuous 650W of power without unexpected resets or a blue screen. We also fit a 12 cm 120 mm Fluctus fan, which will stay cool (literally!) and take care of the right temperature inside the PSU. No wonder our Supremo got the 80 PLUS® Gold certification :)

Šim produktam ir 24 mēnešu garantija.

Parametri

KopsavilkumsENDORFY Supremo FM5. Total power: 650 W, AC input voltage: 115 - 230 V, AC input frequency: 50/60 Hz. Motherboard power connector: 18+10 pin ATX, Cabling type: Fully-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Fan diameter: 12 cm, Number of fans: 1 fan(s). Cables included: AC
Ražotāja datu lapahttps://endorfy.com/en/product/supremo-fm5-gold-650w/
CN kods85044095
Vienības kastes augstums0.22
Vienības kastes garums0.1
Vienības kastes platums0.27
Maiņstrāvas ieejas frekvence50/60 Hz
Maiņstrāvas ieejas spriegums115 - 230 V
Kombinētā jauda (+12V)648 W
Kombinētā jauda (+3,3 V)100 W
Kombinētā jauda (+5V)100 W
Kombinētā jauda (+5Vsb)15 W
Kombinētā jauda (-12V)3.6 W
Maksimālā izejas strāva (+12V)54 A
Maksimālā izejas strāva (+3.3V)20 A
Maksimālā izejas strāva (+5V)20 A
Maksimālā izejas strāva (+5VSB)3 A
Maksimālā izejas strāva (-12V)0.3 A
Barošanas aizsardzības funkcijasOver current/Over power/Over voltage/Short circuit/Under voltage
Kopējā jauda650 W
Kabeļu veidsFully-Modular
Mātesplates barošanas savienotājs18+10 pin ATX
SATA barošanas savienotāju skaits3
PCI Express barošanas savienotāji (8 pin)6
80 Plus sertifikācija80 PLUS Gold
Vidējais laiks starp atteicēm (MTBF)100000 h
Barošanas bloka (PSU) formas faktorsATX
MērķisPC
Atbalstītie mātesplates forma faktoriATX
Ventilatora diametrs120 mm
Ventilatoru skaits1 fan(s)
Ieslēgšanas/izslēgšanas slēdzisYes
Produkta krāsaBlack
Komplektā iekļauti kabeļiAC
Dziļums150 mm
Augstums87 mm
Platums140 mm
Modeļa nosaukumsEY7A007
Vienības paletē0
Vienības piegādes kastē6
Vienības aprēķinātais tilpums0.007371 cubm
Vienības aprēķinātais svars2.67 kg
