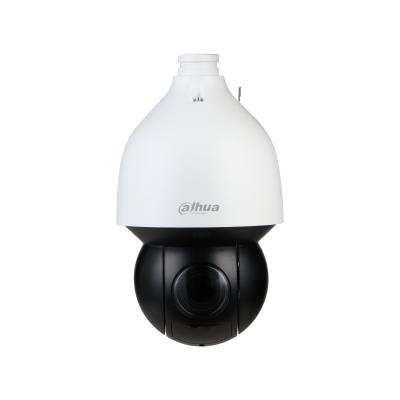

NET CAMERA 4MP PTZ IR DOME AI/SD5A425GB-HNR DAHUA

  • Produkta kods: DH-SD5A425GB-HNR
  • EAN: 6923172599735
  • Stāvoklis: Jauns
CenaSkaitsPiegāde

968.48

800.40 € (bez PVN 21%)

2

12.05.

Apraksts

Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on Dahua\'s advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions.

System Overview
Unique and elegant, the black semicircular sphere discreetly monitorsfrom a distance without drawing undue attention to itself. It has a powerful optical zoom, and accurate pan, tilt and zoom capabilities, providing an all in-one solution for long distance video surveillance of outdoor scenes. Together with infrared illumination and Starlight Technology, the camera is a great solution for dark, low light conditions. The series combines a day and night mechanical IR cut filter to produce high quality images in variable lighting conditions during the day, and True WDR for locations with direct sunlight and glare.

Starlight Technology
With advanced image processing technology and optical technology, Dahua Starlight technology can provide clear colorful video in the environment of low illuminance. It widely applies to various environments of low illuminance.

Perimeter Protection
Automatically filters out false alarms caused by animals, rustling leaves, bright lights, and more, and uses secondary recognition during target detection to improve alarm accuracy.

PFA Technology
PFA technology has introduced new methods of judgment that ensure the accuracy and predictability of the direction of subject distance adjustment. The result is a set of advanced focusing algorithms that ensure image clarity when zooming and that shorten focus time. This makes the camera highly advanced in its functions, substantially improving the quality of your experienceю

Smart H.265+ & Smart H.264+
With advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage
and transmission.

Face Detection
Supports 6 attributes and 8 expressions: Gender, age, glasses, face mask, beard and expressions (anger, sadness, disgust, fear, surprise, calm, happiness, and confusion). It also supports face cutout settings: Face, and single inch photo. Three snapshot methods are also featured: Real-time snapshot, priority snapshot, and quality priority.

Auto-tracking
This feature controls the pan/tilt/zoom actions of the camera to automatically track an object in motion and to keep it in the scene. The tracking action can be triggered manually or automatically by defined rules. Once a rule is triggered, the camera can zoom in and track the defined target automatically.

Protection (IP67, TVS 6000 V)
IP67, TVS 6000 V lightning proof, surge protection, and voltage transient protection.

SMD 4.0
Dahua Smart Motion Detection technology works with intelligent algorithms to classify targets that trigger motion detection alarms. It filters out objects that are not targets, such as small and large animals, to avoid triggering false alarms. With an AI NVR, Quick Pick technology becomes available, allowing you to easily search for and pick out human and vehicle targets from SMD event videos, prioritizing the highest matches.

  • Powerful 25× optical zoom
  • Starlight Technology
  • Max. 25/30fps@4MP
  • IR distance up to 150 m
  • Deep-learning-based perimeter protection
  • Auto-tracking 3.0 and IVS
  • SMD 4.0

Šim produktam ir 36 mēnešu garantija.

Parametri

SummaryDahua Technology DH-SD5A425GB-HNR. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Dome. Lens viewing angle, horizontal: 59.8°, Lens viewing angle, vertical: 33.7°, Lens viewing angle, diagonal: 63.3°. Sensor type: CMOS, Optical sensor size: 25.4 / 1.8 mm (1 / 1.8"). Optical zoom: 25x, Digital zoom: 16x, Detect distance: 1724 m
Ražotājs datu lapahttps://www.dahuasecurity.com/products/All-Products/PTZ-Cameras/WizSense-Series/SD5/SD5A425GB-HNR
Vienība kastes augstums0.505
Vienība kastes garums0.26
Vienība kastes platums0.265
Formas faktorsDome
Korpusa materiālsMetal
IK KodsIK10
Starptautiskās aizsardzības (SA) kods:IP67
Montāžas veidsCeiling/wall
Produkts krāsaWhite
Trauksmes ievades izejasYes
SertifikācijaCE: EN55032/EN55024/EN50130-4 FCC: 15 B,ANSI C63.4- 2014
Savienojamības tehnoloģijaWired
Dienas nakts režīmsYes
Novietojums atbalstītsOutdoor
PTZ vadībaYes
PTZ Modes8 Tour/Preset point
TipsIP security camera
Plats dinamisks diapazons (WDR)Yes
Kamera panoramēšanas vadībaYes
Kamera noliekšana vadībaYes
Objektīva skatīšanās leņķis diagonāle63.3 °
Objektīva skatīšanās leņķis horizontāls59.8 °
Objektīva skatīšanās leņķis vertikāls33.7 °
Minimālais apgaismojums0 lx
Panoramēšanas iepriekš iestatīts ātrums400 °/sec
Pan diapazons0 - 360 °
Pan Ātrums300 °/sec
Noliekšana leņķis diapazons-15 - 90 °
Noliekšana Ātrums200 °/sec
Balts BalanceAuto/Indoor/Manual/Natural/Outdoor/Sodium lamp
Numurs Of sensori1
Optiskais sensors izmērs1/1.8 "
Progressive skenēšanaYes
Sensors tipsCMOS
Closest Focusing attālums0.1 m
Detect attālums1724 m
Digitālā tālummaiņa16 x
Fokusa garums diapazons5.8 - 145 mm
FokusēšanaMotorized/Manual
Identify attālums172 m
Maksimālais aperture numurs4
Minimālais aperture numurs1.6
Numurs Of objektīvi1
Observe attālums689 m
Optiskais tālummaiņa25 x
Recognize attālums344 m
Tālummaiņa CapabilityYes
LED TipsIR
Nakts redzeYes
Nakts redze attālums150 m
Numurs Of apgaismojums Leds4
Muguras gaismas kompensācija BlcYes
Bitu ātrums32- 8192Kbps
Bitu ātrums vadībaConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Kadru zīmēšanas ātrums30 fps
Pastiprinājums vadība tipsAuto/Manual
Izcēlums kompensācija HlcYes
Attēla stabilizatorsYes
Maksimālais izšķirtspēja2560 x 1440 pixels
Trokšņa samazināšanaYes
Trokšņa samazināšana tehnoloģija3D noise reduction
Konfidencialitātes maskēšanaYes
Atbalstīts grafika resolutions1280 x 960/1920 x 1080 (HD 1080)/2048 x 1536 (QXGA)/2560 x 1440/352 x 240/352 x 288/704 x 480/704 x 576
Kopējais Megapixels4 MP
Video saspiešana formātiH.264/H.264+/H.265/H.265+/M-JPEG
Video straumēšanaYes
Atbalstītie audio formātiAAC/PCM
Balss kodekiG.711a/G.711Mu/G.722.1/G.723/G.726/G.729
BluetoothNo
Ethernet Saskarne TipsFast Ethernet
ETHERNET/LANYes
Tīklošana standartiIEEE 802.1x
Numurs Of lietotāji20 user(s)
Kvalitāte Of serviss Qos atbalstsYes
Straumēšana metodeMulticast/Unicast
Atbalstīts tīkls protokoliIPv4; IPv6; HTTP; HTTPS; 802.1x; Qos; FTP; SMTP; UPnP; SNMPv1/v2c/v3(MIB-2); DNS; DDNS; NTP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE; ARP; RTCP
Wi-FiNo
Iebūvēts In HDDNo
Iebūvēts karšu lasītājsYes
Saderīgas atmiņas kartesMicroSD (TransFlash)
RAM Installed1024 MB
Maksimālais atmiņa kartes izmērs256 GB
ROM ietilpība4000 MB
Ethernet LAN (RJ-45) pieslēgvietas1
Austiņu izejas1
Mikrofons inYes
Inteliģents Video Surveillance Ivs Sistēma FunkcijasAbandoned object/Intrusion/Missing object/Scene change/Tripwire
Video kustības noteikšanaYes
Tīmekļa pārlūkprogrammaYes
Tīmekļa Based pārvaldībaYes
Ieejas spriegums24 V
Barošanas consumption (max)20 W
Barošanas avots tipsAC,PoE
Darbības relatīvs mitrums (H-H)0 - 95 %
Darbības temperatūra (T-T)-40 - 70 °C
Diametrs190 mm
Augstums332 mm
Svars4700 g
Iepakojums svars8000 g
Numurs of cameras1
ModelisDH-SD5A425GB-HNR
Vienības uz palete0
Vienības uz piegāde kastes2
Vienība Calculated skaļums0.04306 cubm
Vienība Calculated svars7.45 kg
