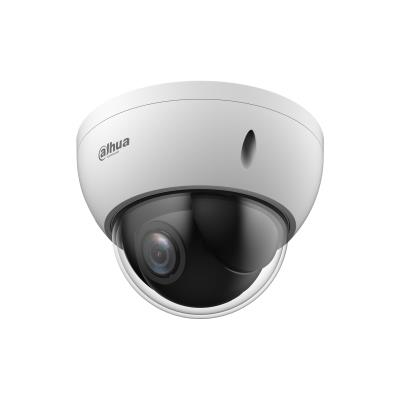

NET CAMERA 4MP PTZ DOME/SD22404DB-GNY DAHUA

  • Produkta kods: DH-SD22404DB-GNY
  • EAN: 6923172536334
  • Stāvoklis: Jauns
CenaSkaitsPiegāde

364.62

301.34 € (bez PVN 21%)

7

23.04.

Apraksts

Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on Dahua\'s advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions.

With its powerful optical zoom, and accurate pan and tilt capabilities, this series of cameras provides a wide monitoring range and great detail. It displays images in 4 MP resolution at 25/30 fps. These cameras offer smooth control and high-grade protection that enable them to meet the requirements of video surveillance in small-sized scenes.

Starlight Technology
With advanced image processing technology and optical technology, Dahua Starlight technology can provide clear colorful video in the environment of low illuminance. It widely applies to various environments of low illuminance.

Face Detection
Dahua Face Detection technology can detect the face in the image. With deep learning algorithm, the technology supports detecting, tracking, capturing and selecting the best face image, and then outputs face snapshot.

Smart H.265+ & Smart H.264+
With advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission.

PFA Technology
PFA technology has introduced new methods of judgment that ensure the accuracy and predictability of the direction of subject distance adjustment. The result is a set of advanced focusing algorithms that ensure image clarity when zooming and that shorten focus time. This makes the camera highly advanced in its functions, substantially improving the quality of your experience.

  • 1/2.8" CMOS
  • Powerful 4x optical zoom
  • Max.25/30fps@4M/3M
  • Max 100°/s pan speed
  • Supports face detection
  • Support PoE
  • IP66, IK10
  • SMD 3.0
  • 6000V lightning-proof

Šim produktam ir 36 mēnešu garantija.

Parametri

SummaryDahua Technology WizSense SD22404DB-GNY. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/Wall/Pole, Product colour: White, Form factor: Dome. Minimum illumination: 0.0005 lx, Lens viewing angle, horizontal: 90.3 - 29.4°, Lens viewing angle, vertical: 48.5 - 16.6°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 4x, Digital zoom: 16x, Detect distance: 240 m
Ražotājs datu lapahttps://www.dahuasecurity.com/products/All-Products/PTZ-Cameras/WizSense-Series/SD2/SD22404DB-GNY
Vienība kastes augstums0.135
Vienība kastes garums0.155
Vienība kastes platums0.155
Fog AizsardzībaYes
Formas faktorsDome
IK KodsIK10
Starptautiskās aizsardzības (SA) kods:IP66
Montāžas veidsCeiling/Wall/Pole
Produkts krāsaWhite
Savienojamības tehnoloģijaWired
Dienas nakts režīmsYes
Novietojums atbalstītsOutdoor
Iepriekš iestatīts punktiYes
PTZ vadībaYes
PTZ Modes5 Pattern/8 Tour
PTZ protokoliPelco-P/D
Apskate ierakstīšanaYes
TipsIP security camera
Kamera panoramēšanas vadībaYes
Kameras aizvara ātrums1 - 1/30000 s
Kamera noliekšana vadībaYes
Objektīva skatīšanās leņķis diagonāle105.7 - 33.6 °
Objektīva skatīšanās leņķis horizontāls90.3 - 29.4 °
Objektīva skatīšanās leņķis vertikāls48.5 - 16.6 °
Minimālais apgaismojums0.0005 lx
Panoramēšanas manuāls ātrums0.1 - 100 °/sec
Panoramēšanas iepriekš iestatīts ātrums100 °/sec
Pan diapazons0 - 355 °
Noliekšana leņķis diapazons0 - 90 °
Noliekšana manuāls ātrums0.1 - 60 °/sec
Noliekšana iepriekš iestatīts ātrums60 °/sec
Balts BalanceATW/Auto/Indoor/Manual/Natural/Outdoor/Sodium lamp/Street lamp
Optiskais sensors izmērs1/2.8 "
Progressive skenēšanaYes
Sensors tipsCMOS
Automātisks FokusēšanaYes
Closest Focusing attālums1.5 m
Detect attālums240 m
Digitālā tālummaiņa16 x
Fokusa garums diapazons2.8 - 12 mm
Identify attālums24 m
Maksimālais aperture numurs3
Minimālais aperture numurs1.6
Numurs Of objektīvi1
Observe attālums94.8 m
Optiskais tālummaiņa4 x
Recognize attālums48 m
Tālummaiņa CapabilityYes
LED TipsIR
Nakts redzeYes
Muguras gaismas kompensācija BlcYes
Bitu ātrumsH.264: 2816Kbps - 13056Kbps; H.265: 1024Kbps - 7936Kbps
Bitu ātrums vadībaConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Digitāls plats dinamisks diapazons DwdrYes
Pastiprinājums vadība tipsAuto/Manual
Izcēlums kompensācija HlcYes
Attēla stabilizatorsYes
Maksimālais izšķirtspēja2560 x 1440 pixels
Trokšņa samazināšanaYes
Trokšņa samazināšana tehnoloģija2D noise reduction,3D noise reduction
Reģions Of Interest Roi kodēšanaYes
Atbalstīts grafika resolutions1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2304 x 1296/2560 x 1440/352 x 288/640 x 480 (VGA)/704 x 576
Kopējais Megapixels4 MP
Video saspiešana formātiH.264/H.264+/H.264B/H.264H/H.265/H.265+/M-JPEG
Video straumēšanaYes
Signal-to-Noise attiecība (SNR)55 dB
BluetoothNo
Ethernet Saskarne TipsFast Ethernet
ETHERNET/LANYes
Numurs Of lietotāji20 user(s)
Kvalitāte Of serviss Qos atbalstsYes
Straumēšana metodeMulticast/Unicast
Atbalstīts tīkls protokoliHTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; IPv6; 802.1x; SSL; Qos; FTP; UPnP; ICMP; SNMP; IGMP; ARP; RTCP; RTP; PPPoE; RTMP; Bonjour; SAMBA; NFS
Wi-FiNo
Iebūvēts In HDDNo
Iebūvēts karšu lasītājsYes
Saderīgas atmiņas kartesMicroSD (TransFlash)
Maksimālais atmiņa kartes izmērs512 GB
RAM ietilpība512 MB
ROM ietilpība128 MB
Ethernet LAN (RJ-45) pieslēgvietas1
Aktīvā aizsardzība pret bojājumiem trauksmesYes
Inteliģents Video Surveillance Ivs Sistēma FunkcijasAbandoned object/Crossing line/Face detection/Intrusion/Missing object/Moving object/Tripwire/Vehicle detection
Video kustības noteikšanaYes
Tīmekļa pārlūkprogrammaYes
Tīmekļa Based pārvaldībaYes
Līdzstrāva Izeja Strāva1 A
Līdzstrāva Izeja Spriegums12
Barošanas consumption (max)6.1 W
Barošanas consumption (typical)2.3 W
Barošanas avots tipsDC,PoE
Darbības relatīvs mitrums (H-H)0 - 95 %
Darbības temperatūra (T-T)-30 - 60 °C
Glabāšana relatīvs mitrums (H-H)0 - 95 %
Glabāšana temperatūra (T-T)-30 - 60 °C
Diametrs122 mm
Augstums89 mm
Svars500 g
Iepakojums svars700 g
Numurs of cameras1
ModelisSD22404DB-GNY
Vienības uz palete0
Vienības uz piegāde kastes20
Vienība Calculated skaļums0.00421 cubm
Vienība Calculated svars0.775 kg
