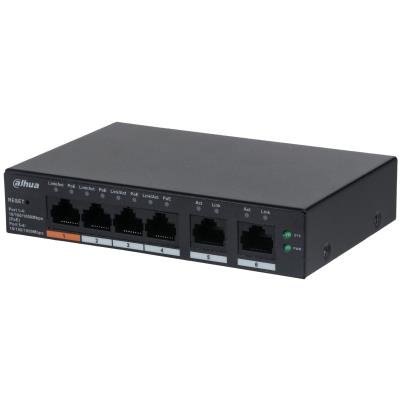

Switch|DAHUA|CS4006-4GT-60|Type L2|Desktop/pedestal|PoE ports 4|60 Watts|DH-CS4006-4GT-60

  • Produkta kods: DH-CS4006-4GT-60
  • EAN: 6923172571144
  • Stāvoklis: Jauns
CenaSkaitsPiegāde

96.05

79.38 € (bez PVN 21%)

23

01.05.

Apraksts

Highly intuitive, the Smart Managed Switch can manage local networks. With the DoLynk Care platform, it can also perform cloud management. The switch performs operation and maintenance using topology visualization on front-end, transmission and back-end storage devices that are in the security system and IT system. With its full metal design, the switch has great heat dissipation and can operate in temperatures ranging -10°C to 55°C. It offers EMC and has protection against overvoltage, overcurrent, static electricity, lightning strikes, pulses and other types of interference. For the PoE series Smart Managed Switch, power is supplied up to 250 meters away. The orange port supplies up to 60 W and the red port provides up to 90 W. Also, link aggregation and STP are available on select models to ensure
the network remains stable. The switch can be used in small and medium-sized businesses such as supermarkets, offices, restaurants, cafés and hotels.

  • Meets the requirements of IEEE802.3,IEEE802.3u,IEEE802.3x,IEEE802.3ab standards
  • Meets the requirements of IEEE802.3af, IEEE802.3at, Hi-PoE power supply standards
  • Manages PoE power consumption and PoE power on/off. Supports Intelligent PoE
  • A wide operating temperature range and a full metal casing that is fully-enclosed and dust-proof

Šim produktam ir 36 mēnešu garantija.

Parametri

SummaryDahua Technology DH-CS4006-4GT-60. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 6. Full duplex. MAC address table: 8000 entries, Switching capacity: 12 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x. DC input voltage: 53 V. Power over Ethernet (PoE). Wall mountable
Ražotājs datu lapahttps://www.dahuasecurity.com/products/All-Products/Transmission/Cloud-Managed-Switches/CS4006-4GT-60
Vienība kastes augstums0.085
Vienība kastes garums0.115
Vienība kastes platums0.2
Mākoņa pārvaldītsYes
Kvalitāte Of serviss Qos atbalstsYes
Slēdzis slānisL2
Slēdzis tipsManaged
Tīmekļa Based pārvaldībaYes
Pamata pārslēgšana Rj45 Ethernet porti daudzums6
Pamata pārslēgšana Rj45 Ethernet porti tipsGigabit Ethernet (10/100/1000)
Gigabit Ethernet vara porti daudzums6
product_attr.10G_SUPPORTNo
Vara Ethernet kabeļu sistēma tehnoloģija1000BASE-T/100BASE-TX/10BASE-T
Ethernet LAN datu pārraides ātrums10,100,1000 Mbit/s
Plūsmas vadība atbalstsYes
Pilns abpusējaYes
Saite AggregationYes
Tīklošana standartiIEEE 802.3/IEEE 802.3ab/IEEE 802.3af/IEEE 802.3at/IEEE 802.3u/IEEE 802.3x
Numurs Of Vlans32
Spanning koks protokolsYes
product_attr.VIRTUAL_LAN_FEATURESPort-based VLAN
Vlan atbalstsYes
Pāradresācija ātrums8.93 Mpps
Lieli kadri15000
Lieli kadri atbalstsYes
MAC Address tabula8000 entries
Pārslēgšana ietilpība12 Gbit/s
product_attr.DHCP_FEATURESDHCP client
Korpusa materiālsMetal
LED indikatoriYes
Produkts krāsaBlack
Atiestatīšana pogaYes
Sienas uzstādāmsYes
product_attr.DC_INPUT_VOLTAGE53 V
Ieejas strāva1.226 A
Barošanas consumption (max)65 W
Barošanas avotsDC
Barošanas pāri Ethernet POEYes
Barošanas pāri Ethernet POE porti daudzums4
Darbības relatīvs mitrums (H-H)5 - 95 %
Darbības temperatūra (T-T)-10 - 55 °C
Glabāšana relatīvs mitrums (H-H)5 - 95 %
Glabāšana temperatūra (T-T)-40 - 70 °C
Dziļums90 mm
Augstums26 mm
Svars290 g
Platums130 mm
Iepakojums dziļums238 mm
Iepakojums augstums76 mm
Iepakojums svars940 g
Iepakojums platums265 mm
Modelis NosaukumsDH-CS4006-4GT-60
Vienības uz palete0
Vienības uz piegāde kastes12
Vienība Calculated skaļums0.002527 cubm
Vienība Calculated svars0.783 kg
