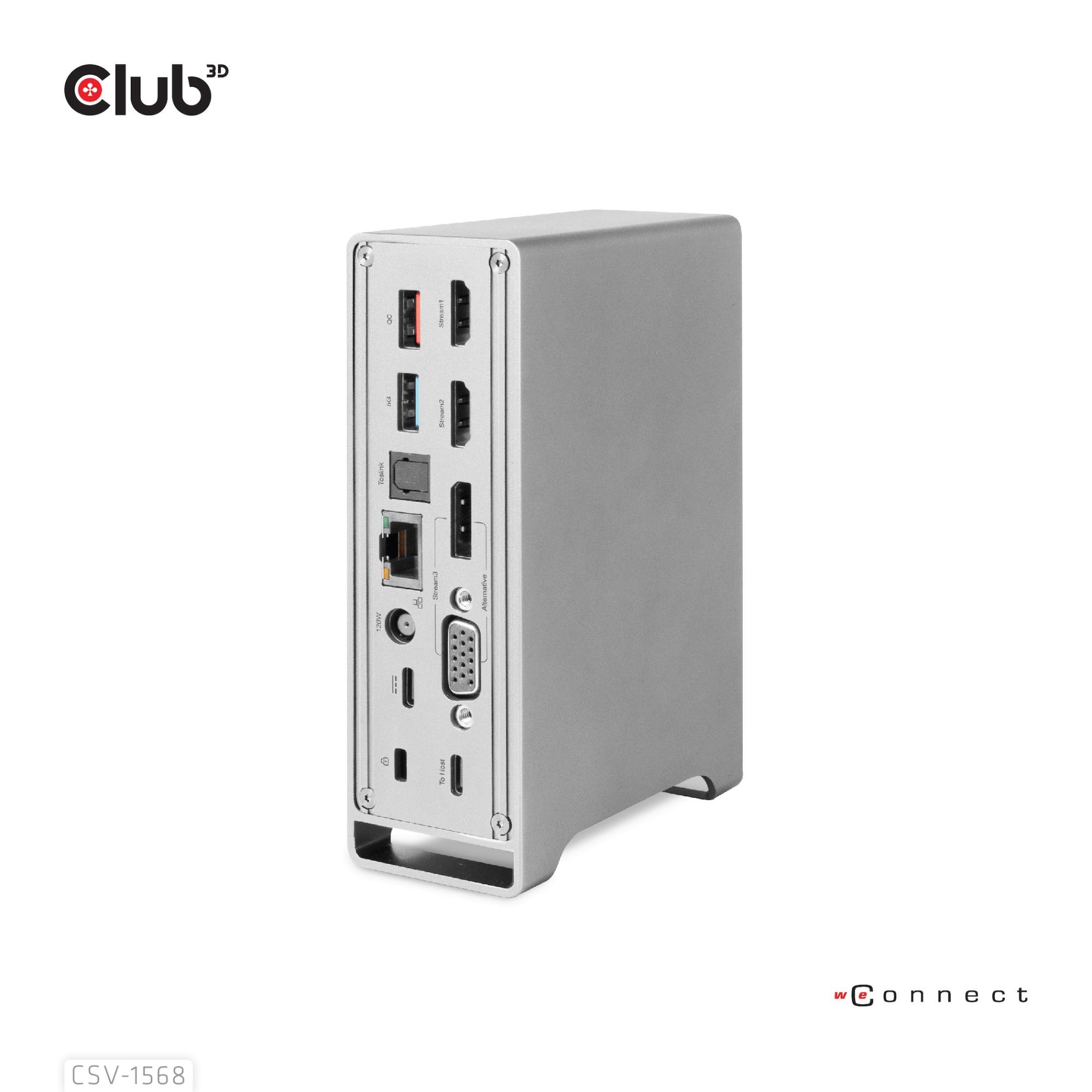

NB ACC DOCKING STATION/USB-C 120W CSV-1568 CLUB3D

  • Produkta kods: CSV-1568
  • EAN: 8719214472115
  • Stāvoklis: Jauns
CenaSkaitsPiegāde

276.22 €

228.28 € (bez PVN 21%)

1

23.04.

Apraksts



The Club 3D CSV-1568 USB Gen2 Type-C Triple Display DP™ Alt mode + Smart PD Charging Dock with 120 Watt PSU, is an integrated solution combining Video, Data, Power, Ethernet and Audio. It has 4 videos (output 3 videos simultaneously under MST mode) for video transmission, 4 USB data ports (2 USB-A 10G, 1 Type-C 10G, 1 USB-A 5G) for data transmission, 1 USB-A smart charging port for quick charging, 1 Gigabit Ethernet for super fast Ethernet, 2 audio ports (3.5mm audio, Toslink) for enjoying music. Besides, this dock is equipped with dual power jack (Type-C PD Charging or 120W DC power supply).

It supports all DP Alt mode1.4/1.2 supported Type-C and Thunderbolt™ 3 host (PC, laptop, mobile phone, etc.) under Windows and under MacOS X based on Intel you will only get limited SST Function or Single display Only.

  • Designed for DP 1.4 Alternate Mode supported Type C and Thunderbolt 3 Hosts (PC, Laptop, Mobile Phones etc.)
  • Supports Output through MST up to 3 displays (2 HDMI + VGA or 2 HDMI + DP). DP and VGA are alternate (DP has priority over VGA)
  • When 3 Displays are connected - 16.2Gbps bandwidth will be shared
  • Single Display Support - HDMI max 4K60Hz, DP Max 4K60Hz, VGA max 1920*1200 60Hz
  • DP and HDMI support RGB 4:4:4/ YCbCr 4:4:4/ YCbCr 4:2:2
  • DP and HDMI support deep color 8/10 bit
  • DP and HDMI support HDR
  • DP and HDMI support HDCP2.2 & 1.4
  • DisplayPort supports DP++ which enables to connect a passive DP to HDMI port to connect HDMI display
  • Support Gigabit Ethernet 10/100/1000M
  • Support USB3.2 Gen2 with max 10Gbps data transfer
  • Support smart charging
  • Support Digital audio with max 96KHz/24bit sampling rate
  • Support dual power supplies: Type-C PD charging or DC Jack
  • Type-C female supports max 100W PD Charging with fast role swap of PD3.0, support smart power which allows to distribute power according to actual consumption of the connected devices
  • Max 120W power supply from DC Adapter, support smart power according to actual consumption of the connected devices, the host can get power ranging from 60W to 100W

Šim produktam ir 24 mēnešu garantija.

Parametri

SummaryCLUB3D Docking station(Metal casing)1x USB Gen2 Type-C Female (data) 2x USB Gen2 Type-A Female 1x USB Gen1 Type-A Female 1x USB Type-A (RED) Smart Charging port 5V/2.4A Max. • 2x HDMI™ (DP Alt Mode) 1x DP™ (DP Alt Mode) hdr 1x VGA 1x RJ45 1 + 120 Watt. Connectivity technology: Docking, Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C, USB Power Delivery up to: 100 W. Product colour: Metallic, Data transfer rate: 16.2 Gbit/s, Maximum refresh rate: 60 Hz. Power source type: DC, Power connector: USB Type-C, AC input voltage: 100 - 240 V. Width: 139 mm, Depth: 90 mm, Height: 44 mm. Quantity per pack: 1 pc(s), Package width: 225 mm, Package depth: 155 mm
Ražotājs datu lapahttps://www.club-3d.com/en/detail/2580/usb_gen2_type_c_triple_display_dp_1.4_alt_mode_smart_pd_charging_dock_with_120_watt_psu/
Vienība kastes augstums0.095
Vienība kastes garums0.225
Vienība kastes platums0.16
Kombinēto austiņu/mikrofona pieslēgvietaYes
Savienojamības tehnoloģijaDocking
Līdzstrāvas ligzdaYes
DisplayPort versija1.4
DisplayPorts daudzums1
HDCPYes
HDCP versija1.4/2.2
HDMI portu skaits2
Austiņu savienojamība3.5 mm
Host interfeissUSB 3.2 Gen 2 (3.1 Gen 2) Type-C
Thunderbolt 3 Jauda PiegādeYes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A porti skaits1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A porti skaits2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C porti skaits1
USB Jauda Piegāde (USB PD)Yes
USB Jauda Piegāde Revision3.0
USB Jauda Piegāde up to100 W
USB Type-C DisplayPort Alternate RežīmsYes
VGA (D-Sub) porti skaits1
ETHERNET/LANYes
Ethernet LAN (RJ-45) pieslēgvietas1
Zīmolu saderībaApple
Iebūvēts karšu lasītājsYes
SertifikācijaMeets ROHS, FCC, and CE EMI requirements
SaderībaLenovo Dell Acer Asus MSI Toshiba Apple HP Razer
Izcelsmes valstsChina
Datu pārsūtīšana ātrums16.2 Gbit/s
Atbalstīts augsts dinamiskais diapazons (HDR)Yes
Key BloķēšanaYes
Maksimālais atsvaidzināšana ātrums60 Hz
Spraudnis and atskaņotYes
Produkts krāsaMetallic
Ieejas spriegums100 - 240 V
Barošanas kabeļa garums1 m
Barošanas savienotājsUSB Type-C
Barošanas consumption (max)120 W
Barošanas avots tipsDC
Barošanas barošana120 W
Mac darbības sistēmas atbalstītsYes
Windows operētāj sistēmas atbalstītsYes
Dziļums90 mm
Augstums44 mm
Svars563 g
Platums139 mm
Iepakojums dziļums155 mm
Iepakojums augstums97 mm
Iepakojums svars1359 g
Iepakojums platums225 mm
Daudzums uz pakotne1 pc(s)
Komplektā iekļauts maiņstrāvas adapterYes
Ātrā sākums guideYes
Statīvs iekļautaYes
Papīra Cardboard iepakojums svars168 g
Plastmasas iepakojums svars5 g
Kopējais papīra Cardboard iepakojums svars0 g
Kopējais plastmasas iepakojums svars0 g
Harmonizētās sistēmas (HS) kods8473 3020
Īpašs funkcijasIn the box: CSV-1568 Docking Station PowerSupply Input:100-110/240VAC, Output: up to 120W USB Gen2 Type-C cable 10G, 20V5A M/M, 1 m / 3.28 ft Detachable stand Quick Install Guide
Spriegums20.5 V
ModelisCSV-1568
Vienības uz palete0
Vienības uz piegāde kastes1
Vienība Calculated skaļums0.00342 cubm
Vienība Calculated svars1.39 kg
