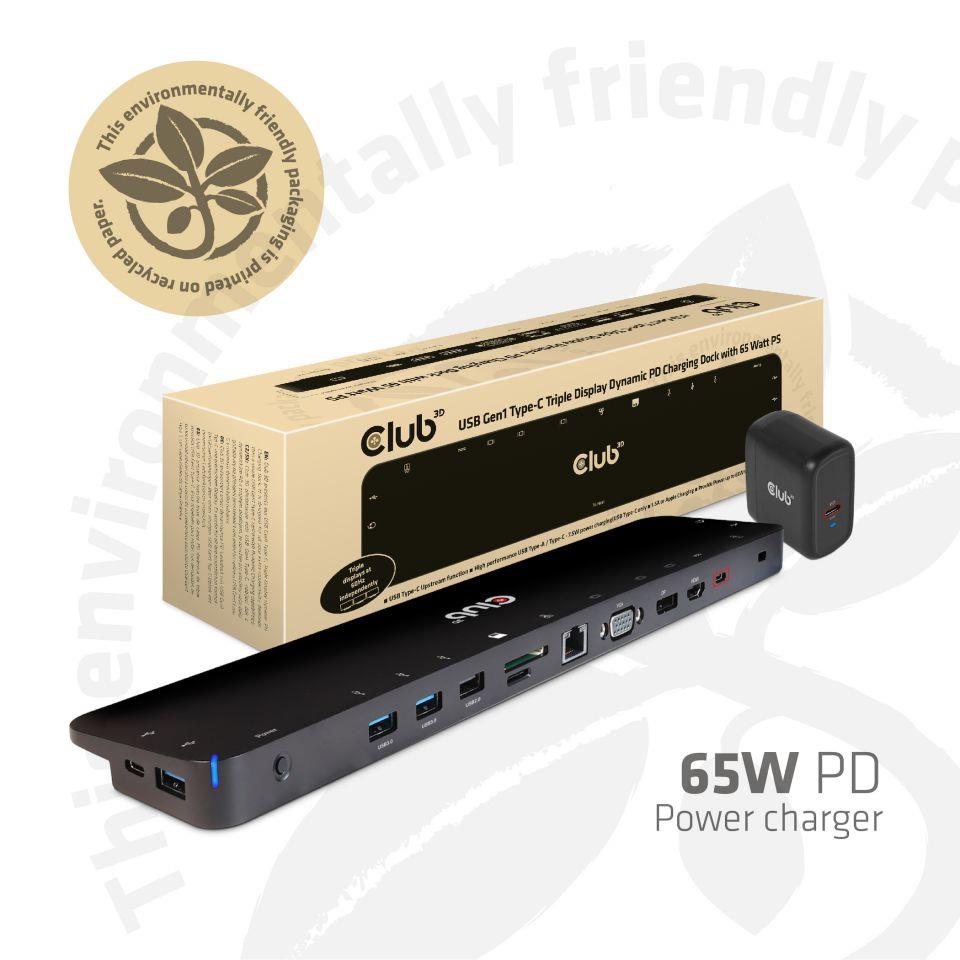

NB ACC DOCKING STATION/USB-C 65W CSV-1564W65 CLUB3D

  • Produkta kods: CSV-1564W65
  • EAN: 8719214472108
  • Stāvoklis: Jauns
CenaSkaitsPiegāde

165.83

137.05 € (bez PVN 21%)

5

23.04.

Apraksts

The Club 3D CSV-1564W65 USB Gen1 Type-C Triple Display Dynamic PD Charging Dock is an integrated solution combining Video, Data, Power, Ethernet and Audio especially for frequent travelers. The Three different Video ports (HDMI™, DisplayPort™, VGA) allow you to enjoy 3 different images or videos on 3 different displays simultaneously under MST mode. The USB Type-A ports and USB Type-C data port allow you to connect multiple USB devices to the host. The USB Type-C charging port allows you to provide power for this Dock and can charge the host PC at the same time by connecting a PD power Adapter, no need to carry your notebooks\' power supply. So in general the user is traveling lighter. The Micro SD and SD/MMC ports allow you to read the information in the memory card onto the host. The 3.5mm audio port allows enjoying the music of the host via a headset. Besides, with the Gigabit Ethernet port, you can enjoy high speed Ethernet on the host. It supports all DP Alt mode supported hosts (PC, laptop, mobile phone, etc.), Dynamic Current Detection and Power Distribution, the product no longer intercepts the fixed power from the external PD Power Supply, but intercepts it according to the actual power consumed by itself, so that the PC can be dynamically charged more power. For Video Signal the source device needs to support DisplayPort™ Alt Mode.

Šim produktam ir 24 mēnešu garantija.

Parametri

SummaryCLUB3D UNIVERSAL USB Gen1 Type-C Triple Display Dynamic PD Charging Dock with 65 Watt PS ( VGA, HDMI, DP, ETHERNET). Connectivity technology: Docking, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, Headphone connectivity: 3.5 mm. Ethernet LAN data rates: 1000 Mbit/s, Copper ethernet cabling technology: 1000BASE-TX, Networking standards: IEEE 802.3. Product colour: Black, Compatible memory cards: MicroSD (TransFlash), HD type: 4K Ultra HD. Power source type: AC, Power connector: USB Type-C, Power supply: 100 W. Width: 350 mm, Depth: 75 mm, Height: 20 mm
Ražotājs datu lapahttps://www.club-3d.com/en/detail/2576/usb_gen1_type_c_triple_display_dynamic_pd_charging_dock_with_65_watt_ps/
Vienība kastes augstums0.08
Vienība kastes garums0.375
Vienība kastes platums0.11
Kombinēto austiņu/mikrofona pieslēgvietaYes
Savienojamības tehnoloģijaDocking
DisplayPorts daudzums1
HDMI portu skaits1
Austiņu savienojamība3.5 mm
Host interfeissUSB 3.2 Gen 1 (3.1 Gen 1) Type-C
Mikrofons inNo
PowerShareYes
USB 2.0 porti skaits2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A porti skaits2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C porti skaits2
USB Jauda Piegāde (USB PD)Yes
VGA (D-Sub) porti skaits1
Vara Ethernet kabeļu sistēma tehnoloģija1000BASE-TX
ETHERNET/LANYes
Ethernet LAN (RJ-45) pieslēgvietas1
Ethernet LAN datu pārraides ātrums1000 Mbit/s
Tīklošana standartiIEEE 802.3
Iebūvēts karšu lasītājsYes
Saderīgas atmiņas kartesMicroSD (TransFlash)
HD tips4K Ultra HD
Maksimālais digitāls izšķirtspēja4096 x 2160 pixels
Maksimālais atsvaidzināšana ātrums60 Hz
Produkts krāsaBlack
Barošanas savienotājsUSB Type-C
Barošanas avots tipsAC
Barošanas barošana100 W
Mac darbības sistēmas atbalstītsYes
Windows operētāj sistēmas atbalstītsYes
Dziļums75 mm
Augstums20 mm
Svars616 g
Platums350 mm
Daudzums uz pakotne1 pc(s)
Komplektā iekļauts maiņstrāvas adapterYes
Komplektā iekļauti kabeļiUSB Type-C
Papīra Cardboard iepakojums svars239 g
Plastmasas iepakojums svars5 g
Kopējais papīra Cardboard iepakojums svars0 g
Kopējais plastmasas iepakojums svars0 g
Harmonizētās sistēmas (HS) kods8473 3020
ModelisCSV-1564W65
Vienības uz palete0
Vienības uz piegāde kastes1
Vienība Calculated skaļums0.0033 cubm
Vienība Calculated svars0.56 kg
