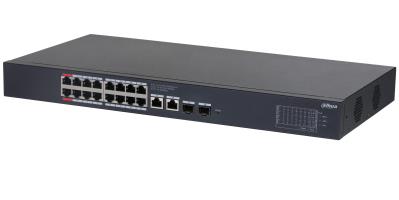

Switch|DAHUA|Desktop/pedestal|Rack|16x10Base-T / 100Base-TX / 1000Base-T|2xSFP|PoE ports 16|CS4220-16GT-240

  • Produkta kods: CS4220-16GT-240
  • EAN: 6923172571205
  • Stāvoklis: Jauns
CenaSkaitsPiegāde

407.43

336.72 € (bez PVN 21%)

8

24.04.

Apraksts

Highly intuitive, the Smart Managed Switch can manage local networks. With the DoLynk Care platform, it can also perform cloud management. The switch performs operation and maintenance using
topology visualization on front-end, transmission and back-end storage devices that are in the security system and IT system. With its full metal design, the switch has great heat dissipation and can operate in
temperatures ranging -10°C to 55°C. It offers EMC and has protection against overvoltage, overcurrent, static electricity, lightning strikes, pulses and other types of interference. For the PoE series Smart
Managed Switch, power is supplied up to 250 meters away. The orange port supplies up to 60 W and the red port provides up to 90 W. Also, link aggregation and STP are available on select models to ensure
the network remains stable. The switch can be used in small and medium-sized businesses such as supermarkets, offices, restaurants, cafés and hotels.

  • Meets the requirements of IEEE802.3,IEEE802.3u,IEEE802.3x, IEEE802.3ab,IEEE802.3z standards
  • Meets the requirements of IEEE802.3af, IEEE802.3at, Hi-PoE, and IEEE802.3bt power supply standards
  • Manages PoE power consumption and PoE power on/off. Supports Intelligent PoE
  • A wide operating temperature range and a full metal casing that is fully-enclosed and dust-proof

Šim produktam ir 36 mēnešu garantija.

Parametri

SummaryDahua Technology CS4220-16GT-240. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 18. MAC address table: 8000 entries, Switching capacity: 40 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x, IEEE.... Power over Ethernet (PoE). Rack mounting
Ražotājs datu lapahttps://transmission.dahuasecurity.com/en/product-list/Business/CloudManagementSolution/NetworkSwitch/CS4220-16GT-240
Vienība kastes augstums0.09
Vienība kastes garums0.54
Vienība kastes platums0.34
Mākoņa pārvaldītsYes
Slēdzis slānisL2
Slēdzis tipsManaged
Tīmekļa Based pārvaldībaYes
Pamata pārslēgšana Rj45 Ethernet porti daudzums18
Pamata pārslēgšana Rj45 Ethernet porti tipsGigabit Ethernet (10/100/1000)
Sfp modulis sloti daudzums2
product_attr.10G_SUPPORTNo
Plūsmas vadība atbalstsYes
Tīklošana standartiIEEE 802.3/IEEE 802.3ab/IEEE 802.3ae/IEEE 802.3at/IEEE 802.3bt/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z
Numurs Of Vlans32
Spanning koks protokolsYes
Vlan atbalstsYes
Pāradresācija ātrums29.76 Mpps
Lieli kadri15360
Lieli kadri atbalstsYes
MAC Address tabula8000 entries
Pārslēgšana ietilpība40 Gbit/s
product_attr.DHCP_FEATURESDHCP client
product_attr.LOOP_PROTECTIONYes
Korpusa materiālsMetal
Produkts krāsaBlack
Statīva montāžaYes
Atiestatīšana pogaYes
Ievades frekvence47/63 Hz
Ieejas spriegums100 - 240 V
Barošanas consumption (typical)265 W
Barošanas avotsAC/DC/PoE
Barošanas barošana iekļautaYes
Barošanas pāri Ethernet POEYes
Barošanas pāri Ethernet POE porti daudzums16
Kopējais barošanas pāri Ethernet POE Budget240 W
Darbības relatīvs mitrums (H-H)5 - 95 %
Darbības temperatūra (T-T)-10 - 55 °C
Glabāšana relatīvs mitrums (H-H)5 - 95 %
Glabāšana temperatūra (T-T)-40 - 70 °C
Dziļums220 mm
Augstums44 mm
Svars2370 g
Platums440 mm
Iepakojums dziļums342 mm
Iepakojums augstums90 mm
Iepakojums svars3020 g
Iepakojums platums540 mm
Vienības uz palete0
Vienības uz piegāde kastes5
Vienība Calculated skaļums0.01987 cubm
Vienība Calculated svars3.6 kg
