NET ROUTER/SWITCH 18PORT/CRS318-16P-2S+OUT MIKROTIK

  • Produkta kods: CRS318-16P-2S+OUT
  • EAN: 4752224002174
  • Stāvoklis: Jauns
CenaSkaitsPiegāde

262.38

216.84 € (bez PVN 21%)

8

23.04.

301.24

248.96 € (bez PVN 21%)

2

27.04.

Apraksts

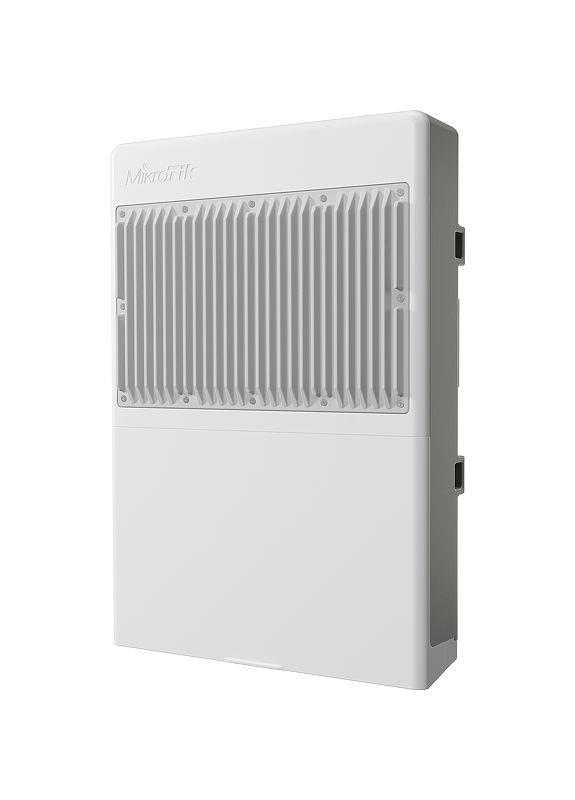

Powering a bunch of access points or IP cameras and a few uplinks on a tower has never been easier. netPower 16P has 16 Gigabit Ethernet ports with PoE-out and two SFP+ ports for 10G fiber uplinks.

Its sturdy and compact outdoor enclosure allows the switch to be mounted in all kinds of environments – from damp attics and shafts to towers, masts and poles with hose clamps.

netPower 16P has a non-blocking throughput of 36 Gbps, switching capacity of 72 Gbps and forwarding rate of 53.6 Mpps.

Device itself does not have onboard voltage converter. You need 24V PSU to have 24V PoE out and/or 48V PSU to have 48V PoE out (IEEE 802.3 at/af).

* Power supply is NOT included with the product. You are welcome to use your preferred power option, like battery pack etc. Compatible also with MikroTik power supplies 24HPOW, 48POW and 48V2A96W

Šim produktam ir 12 mēnešu garantija.

Parametri

SummaryMikrotik netPower 16P. Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. Switching capacity: 72 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3at. DC input voltage: 18 - 57 V. Power connector: DC-in jack. Power over Ethernet (PoE)
Ražotājs datu lapahttps://mikrotik.com/product/netpower_16p#fndtn-specifications
Vienība kastes augstums0.247
Vienība kastes garums0.4
Vienība kastes platums0.097
Slēdzis slānisL2/L3
Pamata pārslēgšana Rj45 Ethernet porti daudzums16
Pamata pārslēgšana Rj45 Ethernet porti tipsGigabit Ethernet (10/100/1000)
Barošanas savienotājsDC-in jack
Sfp modulis sloti daudzums2
product_attr.10G_SUPPORTNo
Tīklošana standartiIEEE 802.3af/IEEE 802.3at
Pāradresācija ātrums53.6 Mpps
Pārslēgšana ietilpība72 Gbit/s
Produkts krāsaWhite
Statīva montāžaNo
SaliekamsNo
Temperatūra sensorsYes
Iebūvēts procesorsYes
Zibspuldze atmiņa16 MB
RAM Installed256 MB
Procesors frekvence800 MHz
Procesors modelis98DX226S
product_attr.DC_INPUT_VOLTAGE18 - 57 V
Barošanas consumption (max)316 W
Barošanas barošana iekļautaYes
Barošanas pāri Ethernet POEYes
Barošanas pāri Ethernet POE porti daudzums16
Darbības temperatūra (T-T)-40 - 70 °C
Dziļums78 mm
Augstums303 mm
Platums212 mm
SertifikācijaCE/RED, EAC, RoHS
ModelisCRS318-16P-2S+OUT
Vienības uz palete0
Vienības uz piegāde kastes5
Vienība Calculated skaļums0.01219 cubm
Vienība Calculated svars3.03 kg
