Case|NZXT|ATX/micro ATX/Mini-ITX/EATX|White|Midi Tower|PC|CM-H92FW-01

  • Produkta kods: CM-H92FW-01
  • EAN: 5056547207636
  • Stāvoklis: Jauns
CenaSkaitsPiegāde

177.50

146.87 € (bez PVN 21%)

19

23.07.

Apraksts

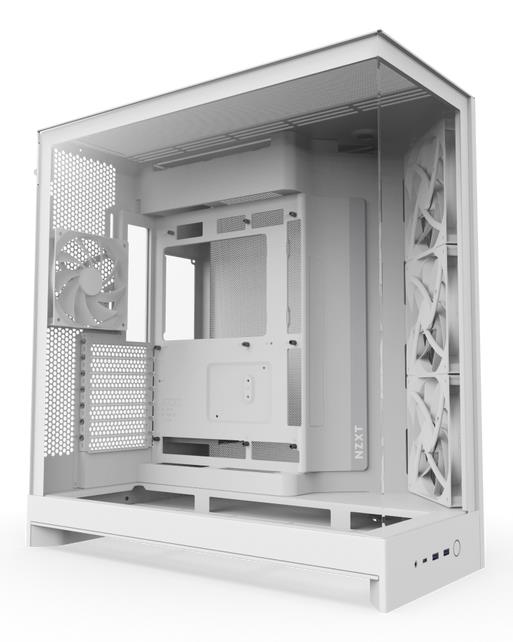

Built to Flow. Made to Show.
The H9 Flow is a spacious, dual-chamber case built for high-performance builds, featuring extensive cooling support and wraparound glass panels for an uninterrupted view of your build.

Optimized Airflow
Angled front-right fans and an airflow-optimized layout keep temps low and performance steady.

Mesh Panels
Ultra-fine, high-airflow mesh panels maximize airflow while filtering dust.

Spacious Dual-Chamber
Separates heat-generating components for improved airflow and a cleaner build.

10-Fan Cooling
Fits up to nine 140 mm fans and one 120 mm rear fan.

Large Radiator Support
Holds up to 420 mm radiators on the top and front-right panels for versatile cooling.

Maximum Graphics
Handles GPUs up to 435 mm, giving plenty of space for top-tier graphics cards.

Back-Connect Ready
Compatible with ASUS BTF and MSI Project Zero motherboards for a cable-free look.

Easy Cable Management
Extra-wide channels, Velcro straps, and tie-down points make cable routing simple.

  • Dual-Chamber Design: Separates main components from the PSU and drives for improved thermal performance and cable management
  • Optimized Airflow: Perforated steel panels and angled front-right fans ensure efficient cooling for high-performance builds
  • Pre-Installed Fans: Includes three F140Q (CV) fans in the front-right and one F120Q (CV) fan in the rear. CV = Case Version (3-pin DC)
  • Ten-Fan Capacity: Supports up to nine 140mm fans across the top, front-right, and bottom, plus one 120mm fan in the rear
  • Panoramic View: Showcase every detail of your build with seamless, wraparound tempered glass paneling
  • Large Radiators & GPUs: Fits up to a 420mm radiator on the top and front-right, with plenty of clearance for high-end graphics cards
  • Easy Cable Management: Extra-wide channels, built-in Velcro straps, and tie-down points make cable routing effortless
  • Back-Connect Ready: Compatible with rear-connecting motherboards like ASUS BTF and MSI Project Zero for a cable-free look

Šim produktam ir 24 mēnešu garantija.

Parametri

KopsavilkumsNZXT H9 Flow. Form factor: Midi Tower, Type: PC, Product colour: White. Front fans installed: 3x 140 mm, Front fans diameters supported: 120,140 mm, Rear fans installed: 1x 120 mm. Supported HDD sizes: 2.5,3.5". Width: 315 mm, Depth: 481 mm, Height: 506 mm
Ražotāja datu lapahttps://nzxt.com/products/h9-flow
Vienības kastes augstums0.569
Vienības kastes garums0.583
Vienības kastes platums0.405
Pretputekļu filtrsYes
Kabeļu pārvaldībaYes
Formas faktorsMidi Tower
MateriālsMesh/SGCC/Tempered glass
Maksimālais CPU dzesētāja augstums165 mm
Maksimālais grafikas kartes garums459 mm
Maksimālais PSU garums200 mm
2,5 collu nodalījumu skaits6
3,5 collu nodalījumu skaits2
Paplašināšanas slotu skaits7
Ieslēgšanas/izslēgšanas pogaYes
Produkta krāsaWhite
Sānu logsYes
PiemērotsGaming
Atbalstītie mātesplates forma faktoriATX/EATX/micro ATX/Mini-ITX
Rūdīta stikla panelis(-ļi)Yes
TipsPC
Barošanas bloku skaits1
Kombinētā austiņu/mikrofona pieslēgvietaYes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A portu skaits2
USB 3.2 Gen 2x2 Type-C portu skaits1
Atbalstīti apakšējo ventilatoru diametri120/140 mm
Atbalstītie apakšējo radiatoru izmēri360 mm
2. ventilatora maksimālais gaisa spiediens1.05 mmH2O
2. ventilatora maksimālā gaisa plūsma60.2 cfm
Ventilatora ātrums0 - 1350 RPM
Atbalstīti priekšējo ventilatoru diametri120/140 mm
Uzstādīti priekšējie ventilatori3x 140 mm
Atbalstītie priekšējo radiatoru izmēri420 mm
Šķidruma dzesēšanas spējaYes
Maksimālais gaisa spiediens1.4 mmH2O
Maksimālā gaisa plūsma100.25 cfm
Atbalstīto apakšējo ventilatoru skaits (maks.)3
Atbalstīto priekšējo ventilatoru skaits (maks.)3
Atbalstīto aizmugurējo ventilatoru skaits (maks.)1
Atbalstīto augšējo ventilatoru skaits (maks.)3
Atbalstītie aizmugurējo ventilatoru diametri120 mm
Uzstādītie aizmugurējie ventilatori1x 120 mm
Atbalstītie aizmugurējā radiatora izmēri120 mm
Piemērota atrašanās vietaComputer case
Atbalstītie augšējo ventilatoru diametri120/140 mm
Atbalstītie augšējā radiatora izmēri420 mm
Atbalstītie HDD izmēri2.5/3.5 "
Dziļums481 mm
Augstums506 mm
Svars12460 g
Platums315 mm
Vienības paletē0
Vienības piegādes kastē1
Vienības aprēķinātais tilpums0.1343 cubm
Vienības aprēķinātais svars15.1 kg
