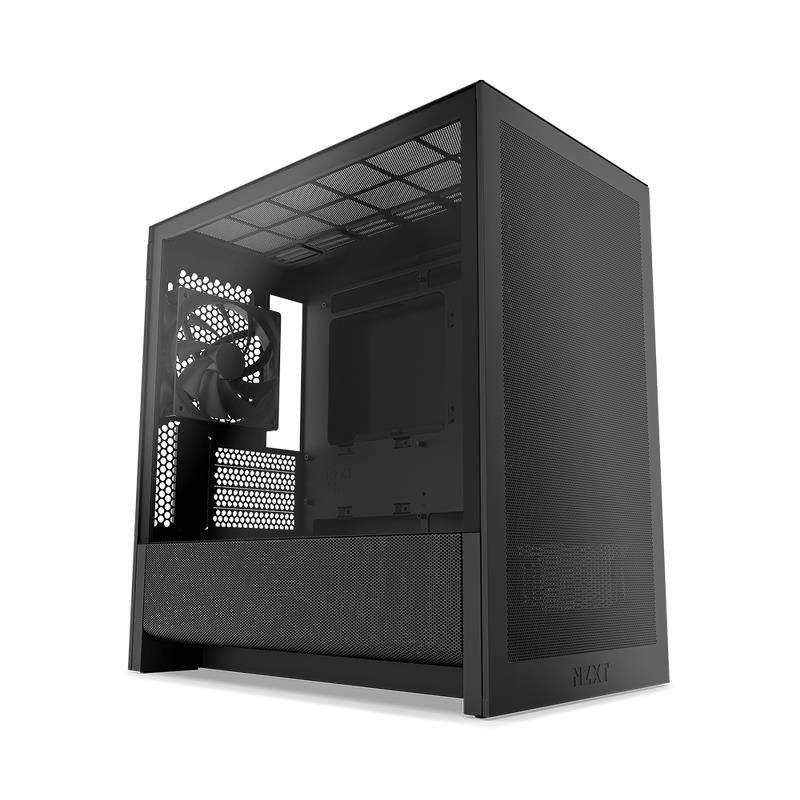

Case|NZXT|micro ATX/Mini-ITX|Black|Midi Tower|PC|CC-H31FB-01

  • Produkta kods: CC-H31FB-01
  • EAN: 5056547207988
  • Stāvoklis: Jauns
CenaSkaitsPiegāde

86.86

71.96 € (bez PVN 21%)

17

23.07.

107.46

89.33 € (bez PVN 21%)

2

27.07.

Apraksts

Space-Saving Design
The micro-ATX form factor fits into smaller spaces, maximizing desk space without compromising on performance.

Optimized Airflow
Ultra-fine mesh on the front, top, and sides enhances cooling while filtering dust. The ventilated PSU shroud optimizes intake from bottom-mounted fans.

Full-Size GPU Support
Max length of 377 mm (no front fans), 352 mm (with fans), 317 mm (with fans & radiator).

7-Fan Capacity
Supports up to 140 mm fans (two front, two top) and 120 mm fans (two bottom, one rear).

Radiator Ready
Supports a 280 mm front radiator and a 240 mm top radiator for versatile cooling setups.

Back-Connect Ready
Compatible with ASUS BTF and MSI Project Zero motherboards for a clean, cable-free build.

Tool-Free Access
Easily remove panels for building, upgrading, or cleaning.

Easy Cable Management
Integrated cable channels and tie-down points make routing clean and simple.

  • Space-Saving Size: A space-efficient micro-ATX chassis that accommodates high-performance components without compromise.
  • High-Airflow Design: Ultra-fine steel mesh panels and a ventilated PSU shroud maximize airflow while effectively filtering out dust.
  • Extensive Cooling Support: Supports up to a 280 mm radiator in the front, a 240 mm radiator on top, and up to seven fans for powerful, customizable cooling performance.
  • Full-Size GPU Support: Fits graphics cards up to 377 mm (without front fans), 352 mm (with front fans), or 317 mm (with front radiator and fans installed).
  • Pre-Installed Rear Fan: Includes one F120Q (CV) fan at the rear to provide efficient exhaust airflow straight out of the box. CV = Case Version (3-pin DC)
  • Simplified Cable Management: Integrated cable channels and multiple tie-down points make it easy to route and organize cables for a clean, organized build.
  • Back-Connect Motherboard Compatible: Ready for rear-connector motherboards like ASUS BTF and MSI Project Zero, enabling a clean, cable-free aesthetic.
  • Tool-Free Access: Removable top, front, and side panels allow for easy upgrades and cleaning—no tools required.

Šim produktam ir 24 mēnešu garantija.

Parametri

KopsavilkumsNZXT H9 H3 Flow. Form factor: Midi Tower, Type: PC, Product colour: Black. Front fans diameters supported: 120,140 mm, Rear fans installed: 1x 120 mm, Rear fans diameters supported: 120 mm. Supported HDD sizes: 2.5,3.5". Width: 225 mm, Depth: 389 mm, Height: 400 mm
Ražotāja datu lapahttps://nzxt.com/products/h3-flow?srsltid=AfmBOorJUQocdb8xVeQS-TKdt36JJIyekkP0lJjPggVNLv9DJ48Fm5mv
CN kods84733080
Vienības kastes augstums0.475
Vienības kastes garums0.49
Vienības kastes platums0.31
Kabeļu pārvaldībaYes
Formas faktorsMidi Tower
MateriālsMesh/SGCC/Tempered glass
Maksimālais CPU dzesētāja augstums170 mm
Maksimālais grafikas kartes garums377 mm
Maksimālais PSU garums185 mm
2,5 collu nodalījumu skaits3
3,5 collu nodalījumu skaits1
Paplašināšanas slotu skaits4
Produkta krāsaBlack
Sānu logsYes
Atbalstītie mātesplates forma faktorimicro ATX/Mini-ITX
Rūdīta stikla panelis(-ļi)Yes
TipsPC
Barošanas bloku skaits1
Kombinētā austiņu/mikrofona pieslēgvietaYes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A portu skaits1
USB 3.2 Gen 2x2 Type-C portu skaits1
Atbalstīti apakšējo ventilatoru diametri120 mm
Atbalstīti priekšējo ventilatoru diametri120/140 mm
Atbalstītie priekšējo radiatoru izmēri280 mm
Atbalstīto apakšējo ventilatoru skaits (maks.)2
Atbalstīto priekšējo ventilatoru skaits (maks.)2
Atbalstīto aizmugurējo ventilatoru skaits (maks.)1
Atbalstīto augšējo ventilatoru skaits (maks.)2
Atbalstītie aizmugurējo ventilatoru diametri120 mm
Uzstādītie aizmugurējie ventilatori1x 120 mm
Atbalstītie augšējo ventilatoru diametri120/140 mm
Atbalstītie augšējā radiatora izmēri240 mm
Atbalstītie HDD izmēri2.5/3.5 "
Dziļums389 mm
Augstums400 mm
Svars4800 g
Platums225 mm
Modeļa nosaukumsH3 Flow
Vienības paletē0
Vienības piegādes kastē1
Vienības aprēķinātais tilpums0.07215 cubm
Vienības aprēķinātais svars6.3 kg
