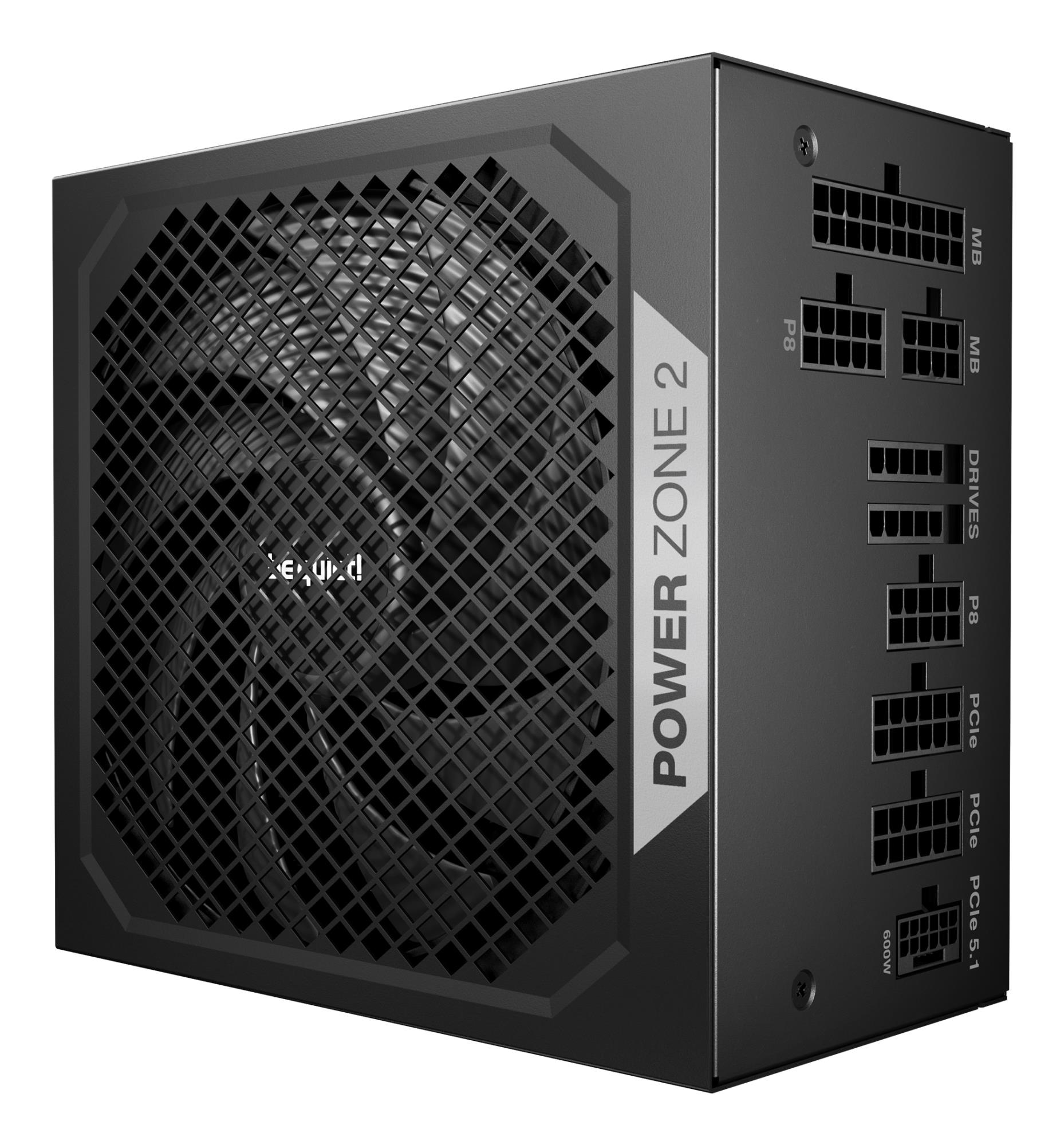

Power Supply|BE QUIET|POWER ZONE 2|1000 Watts|Peak Power 1070 Watts|Efficiency 80 PLUS PLATINIUM|MTBF 100000 hours|BP008EU

  • Produkta kods: BP008EU
  • EAN: 4260052191385
  • Stāvoklis: Jauns
CenaSkaitsPiegāde

215.85 €

178.39 € (bez PVN 21%)

7

21.10.

Apraksts

Exceptional efficiency for Gamers
Power Zone 2 1000W is a power supply with 80 PLUS® Platinum certification and semi-passive zero-RPM cooling for both efficient and quiet gaming sessions.

PLATINUM CERTIFIED
Highly efficient operation

Power Zone 2 1000W is certified with 80 PLUS Platinum and Cybenetics Platinum, resulting in an energy efficiency rating of up to 94.0%. This results in lower power consumption, overall cooler and quieter operation, and many other benefits for your high-end system.

SEMI-PASSIVE ZERO-RPM COOLING
Enjoy the silence

A large Pure Wings 3 140mm fan is keeping Power Zone 2 1000W cool. While under low load, the fan turns off completely until its services are needed again for more demanding operations. This post-ventilation requires a short cooldown period of 2-5 minutes to avoid frequent and annoying starts and stops of the fan. Combined with the large fan for active cooling, this power supply is exceptionally silent in all load scenarios.

PURE WINGS 3 FAN
Specially designed for Power Zone 2

No Power Supply is like the other. Hence, we have altered aspects of our renowned Pure Wings 3 140mm fan to make it the perfect match for Power Zone 2 1000W. The fan offers outstanding reliability and makes for a long-lasting companion. Due to its large diameter, the fan cools the interior of the PSU efficiently and quietly.

FUTURE-PROOF YOUR SYSTEM
With 90° angled 12V-2x6 connector in scope of delivery

Power Zone 2 1000W is an ATX 3.1 PSU and comes with both native integration of the 12V-2x6 connector for next-generation PCIe 5.1 graphics cards, and 3 PCIe 6+2-pin connectors for support of current-gen GPUs. A 90° angled 12V-2x6 connector in the scope of delivery leaves no doubt that this PSU is here to stay. All of this makes Power Zone 2 1000W extremely versatile and the perfect choice for powerful systems of today and the ones to come.

THE NEW STANDARD OF POWER
For massive transient loads

Power Zone 2 offers 1000W of continuous power with one massive 12V rail. Even if the graphics card demands excessive power for a short time: Power Zone 2 1000W handles power excursions up to double its rated power with ease. This ensures reliable operation with the next generation of processors and graphics cards.

HIGH-CLASS TECHNOLOGIES
All packed in a stunning design

With its LLC topology, the Power Zone 2 1000W offers best-in-class voltage regulation and efficiency. This makes it perfect for building very quiet systems or upgrading gaming and media creation PCs. The inner values are what everyone cares about most in a power supply but looks cannot be completely ignored. That is why the Power Zone 2 1000W has a distinctive look with a newly designed mesh front. In addition, all cable designations are printed directly on the PSU’s case for a long-lasting impression and an unparalleled look and feel.

  • 80 PLUS® Platinum and Cybenetics Platinum efficiency rating (up to 94.0%)
  • Semi-passive zero-RPM cooling
  • Fan runs on for 2-5 minutes to avoid frequent starting noise
  • Pure Wings 3 140mm fan for quiet and efficient cooling
  • 90° angled 12V-2x6 connector and PCIe 5.1/ATX 3.1 compatibility
  • Advanced voltage regulation and stability thanks to LLC technology
  • Unique look with an unmistakable mesh design
  • One massive high-performance 12V-rail

Šim produktam ir 24 mēnešu garantija.

Parametri

Kopsavilkumsbe quiet! POWER ZONE 2 1000W. Total power: 1000 W, AC input voltage: 100 - 240 V, Peak power: 1070 W. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 550,700,850,1000 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Platinum. Product colour: Black, Cooling type: Active, Fan diameter: 14 cm. Compliance certificates: BSMI, CB, CCC, CE, Federal Communications Commission (FCC), RCM, RoHS, TÜV mark, UKCA, WEEE
Ražotāja datu lapahttps://www.bequiet.com/en/powersupply/5583
Vienības kastes augstums0.25
Vienības kastes garums0.1
Vienības kastes platums0.33
Kopējā jauda1000 W
Maksimālā jauda1070 W
Maiņstrāvas ieejas spriegums100 - 240 V
Maiņstrāvas ieejas frekvence50/60 Hz
Maksimālā ievades strāva @110v13 A
Maksimālā ievades strāva @220v6.5 A
Jaudas koeficients0.98
+12V līniju skaits1
Kombinētā jauda (+3,3 V)120 W
Kombinētā jauda (+12V)999.6 W
Kombinētā jauda (+5V)120 W
Kombinētā jauda (-12V)6 W
Kombinētā jauda (+5Vsb)15 W
Maksimālā izejas strāva (+3.3V)20 A
Maksimālā izejas strāva (+12V)83.3 A
Maksimālā izejas strāva (+5V)20 A
Maksimālā izejas strāva (-12V)0.5 A
Maksimālā izejas strāva (+5VSB)3 A
Efektivitāte92.6 %
Aizturēšanas laiks22.7 ms
Barošanas aizsardzības funkcijasOver current/Over power/Over voltage/Overheating/Short circuit/Surge & inrush/Under voltage
Mātesplates barošanas savienotājs20+4 pin ATX
Mātesplates barošanas kabeļa garums600 mm
SATA barošanas savienotāju skaits7
SATA barošanas kabeļa garums1000/550/700/850 mm
Peripheral (Molex) barošanas savienotāji (4 pin)1
Peripheral (Molex) barošanas kabeļa garums1000 mm
EPS barošanas savienotājs (8 kontaktu)Yes
PCI Express barošanas savienotāji (6+2 pin)3
PCI Express barošanas savienotāji (16 pin)1
PCI Express barošanas kabeļa garums600 mm
CPU P4 savienotājs (4 kontaktu)1
Centrālā procesora barošanas savienotājs (4+4 kontakti)Yes
Centrālā procesora barošanas kabeļa garums700 mm
Kabeļu veidsFully-Modular
80 Plus sertifikācija80 PLUS Platinum
MērķisPC
Barošanas bloka (PSU) formas faktorsATX
ATX versija3.1
EPS versija2.92
Trokšņa līmenis27.2 dB
Gultņu tehnoloģijaRifle
Vidējais laiks starp atteicēm (MTBF)100000 h
Produkta krāsaBlack
Dzesēšanas tipsActive
Ventilatora diametrs140 mm
Ventilatoru skaits1 fan(s)
Ieslēgšanas/izslēgšanas slēdzisYes
Darbības temperatūra (T-T)0 - 40 °C
Glabāšanas temperatūra (T-T)-40 - 70 °C
Darbības relatīvais mitrums (H-H)0 - 85 %
Glabāšanas relatīvais mitrums (H-H)0 - 95 %
Atbilstības sertifikātiBSMI/CB/CCC/CE/Federal Communications Commission (FCC)/RCM/RoHS/TÜV mark/UKCA/WEEE
Elektrisko un elektronisko iekārtu atkritumu (WEEE) atbilstībaYes
Platums150 mm
Dziļums160 mm
Augstums86 mm
Svars2820 g
ManuālsYes
Manuāla valodasEnglish/French/German/Polish/Russian/Spanish/Ukrainian
Iepakojuma platums248 mm
Iepakojuma dziļums328 mm
Iepakojuma augstums102 mm
Iepakojuma svars3280 g
Iepakojuma tipsBox
Ilgtspējas sertifikātiENERGY STAR/ErP/Triman
Produktu skaits iekšējā (piegādes) iepakojumā6 pc(s)
Piegādes (iekšējās) kastes bruto svars19650 g
Piegādes (iekšējās) kastes augstums346 mm
Piegādes (iekšējās) kastes garums651 mm
Piegādes (iekšējās) kastes platums282 mm
Skrūves iekļautasYes
Komplektā iekļautas kabeļu saitesYes
Vienības aprēķinātais svars3.59 kg
Produkta neto svars2 kg
Vienības aprēķinātais tilpums0.01081 cubm
Vienības piegādes kastē6
Kastes svars21.54 kg
product_attr.UNIT_WIDTH33 cm
Vienības paletē0
Kastes augstums35 cm
product_attr.UNIT_DEPTH10 cm
Kastes dziļums65 cm
product_attr.UNIT_HEIGHT25 cm
Kastes platums28.5 cm
NosaukumsCASE PSU ATX 1000W/POWER ZONE 2 BP008EU BE QUIET
Modeļa nosaukumsPOWER ZONE 2
