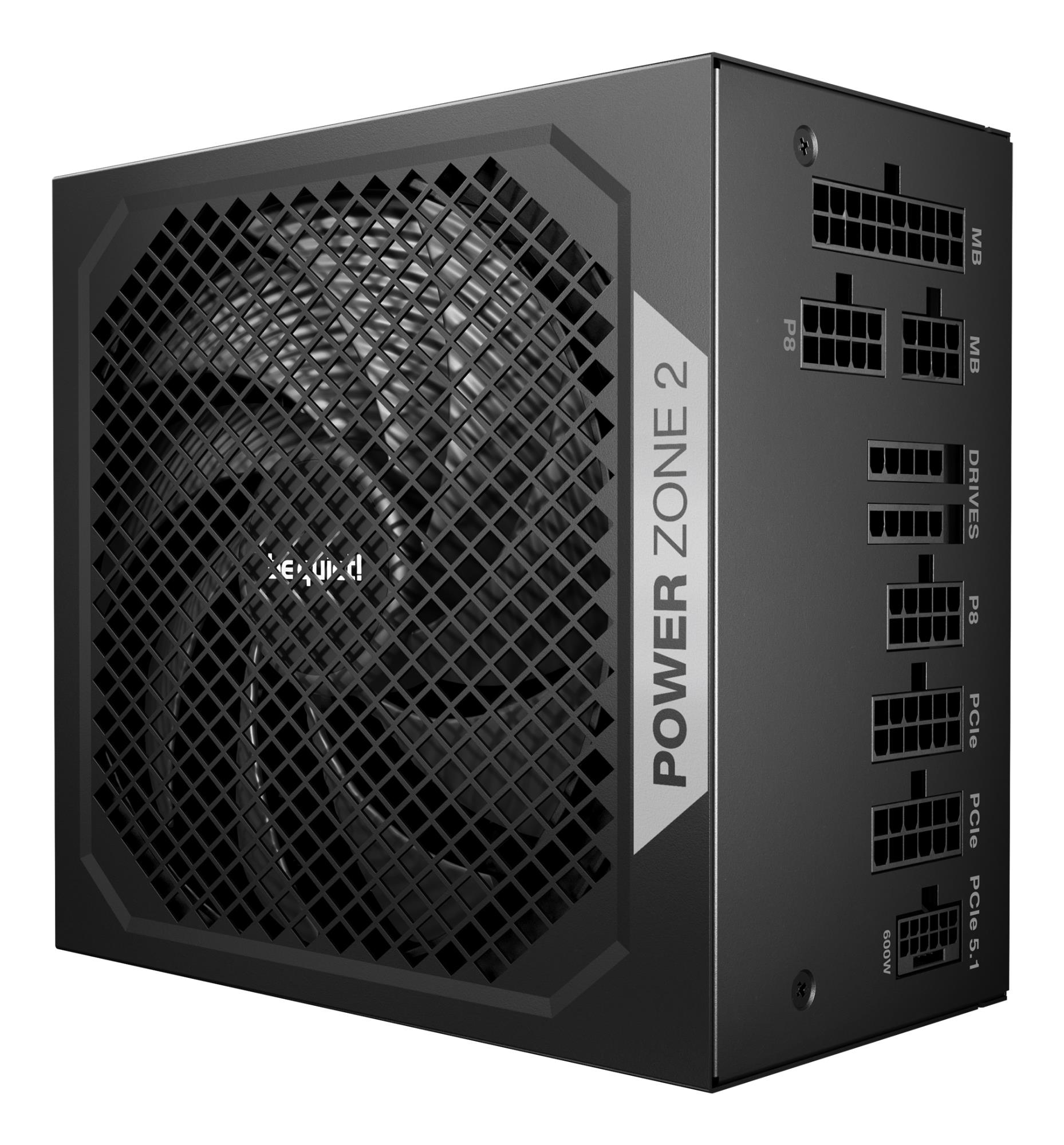

Power Supply|BE QUIET|POWER ZONE 2|750 Watts|Peak Power 820 Watts|Efficiency 80 PLUS PLATINIUM|MTBF 100000 hours|BP006EU

  • Produkta kods: BP006EU
  • EAN: 4260052191361
  • Stāvoklis: Jauns
CenaSkaitsPiegāde

158.05

130.62 € (bez PVN 21%)

2

23.04.

Apraksts

Exceptional efficiency for Gamers
Power Zone 2 750W is a power supply with 80 PLUS® Platinum certification and semi-passive zero-RPM cooling for both efficient and quiet gaming sessions.

PLATINUM CERTIFIED
Highly efficient operation

Power Zone 2 750W is certified with 80 PLUS Platinum and Cybenetics Platinum, resulting in an energy efficiency rating of up to 94.2%. This results in lower power consumption, overall cooler and quieter operation, and many other benefits for your high-end system.

SEMI-PASSIVE ZERO-RPM COOLING
Enjoy the silence

A large Pure Wings 3 140mm fan is keeping Power Zone 2 750W cool. While under low load, the fan turns off completely until its services are needed again for more demanding operations. This post-ventilation requires a short cooldown period of 2-5 minutes to avoid frequent and annoying starts and stops of the fan. Combined with the large fan for active cooling, this power supply is exceptionally silent in all load scenarios.

PURE WINGS 3 FAN
Specially designed for Power Zone 2

No Power Supply is like the other. Hence, we have altered aspects of our renowned Pure Wings 3 140mm fan to make it the perfect match for Power Zone 2 750W. The fan offers outstanding reliability and makes for a long-lasting companion. Due to its large diameter, the fan cools the interior of the PSU efficiently and quietly.

FUTURE-PROOF YOUR SYSTEM
With 90° angled 12V-2x6 connector in scope of delivery

Power Zone 2 750W is an ATX 3.1 PSU and comes with both native integration of the 12V-2x6 connector for next-generation PCIe 5.1 graphics cards, and 3 PCIe 6+2-pin connectors for support of current-gen GPUs. A 90° angled 12V-2x6 connector in the scope of delivery leaves no doubt that this PSU is here to stay. All of this makes Power Zone 2 750W extremely versatile and the perfect choice for powerful systems of today and the ones to come.

THE NEW STANDARD OF POWER
For massive transient loads

Power Zone 2 offers 750W of continuous power with one massive 12V rail. Even if the graphics card demands excessive power for a short time: Power Zone 2 750W handles power excursions up to double its rated power with ease. This ensures reliable operation with the next generation of processors and graphics cards.

HIGH-CLASS TECHNOLOGIES
All packed in a stunning design

With its LLC topology, the Power Zone 2 750W offers best-in-class voltage regulation and efficiency. This makes it perfect for building very quiet systems or upgrading gaming and media creation PCs. The inner values are what everyone cares about most in a power supply but looks cannot be completely ignored. That is why the Power Zone 2 750W has a distinctive look with a newly designed mesh front. In addition, all cable designations are printed directly on the PSU’s case for a long-lasting impression and an unparalleled look and feel.

  • 80 PLUS® Platinum and Cybenetics Platinum efficiency rating (up to 94.2%)
  • Semi-passive zero-RPM cooling
  • Fan runs on for 2-5 minutes to avoid frequent starting noise
  • Pure Wings 3 140mm fan for quiet and efficient cooling
  • 90° angled 12V-2x6 connector and PCIe 5.1/ATX 3.1 compatibility
  • Advanced voltage regulation and stability thanks to LLC technology
  • Unique look with an unmistakable mesh design
  • One massive high-performance 12V-rail

Šim produktam ir 24 mēnešu garantija.

Parametri

Summarybe quiet! POWER ZONE 2 750W. Total power: 750 W, AC input voltage: 100 - 240 V, Peak power: 820 W. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 550,700,850,1000 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Platinum. Product colour: Black, Cooling type: Active, Fan diameter: 14 cm. Compliance certificates: BSMI, CB, CCC, CE, Federal Communications Commission (FCC), RCM, RoHS, TÜV mark, UKCA, WEEE
Ražotājs datu lapahttps://www.bequiet.com/en/powersupply/5585
CnCode85044095
Vienība kastes augstums0.25
Vienība kastes garums0.1
Vienība kastes platums0.33
Ievades frekvence50/60 Hz
Ieejas spriegums100 - 240 V
Kombinētā jauda (+12V)750 W
Kombinētā jauda (+3,3 V)120 W
Kombinētā jauda (+5V)120 W
Kombinētā jauda (+5Vsb)15 W
Kombinētā jauda (-12V)3.6 W
Efektivitāte92.5 %
Aizturēšanas laiks24.5 ms
Max izejas strāva (+12V)62.5 A
Max izejas strāva (+3.3V)20 A
Max izejas strāva (+5V)20 A
Max izejas strāva (+5Vsb)3 A
Max izejas strāva (-12V)0.3 A
Maksimālais ievades strāva @110v10 A
Maksimālais ievades strāva @220v5 A
Numurs of +12V rail(s)1
Maksimālais jauda820 W
Barošanas faktors0.98
Barošanas aizsardzība funkcijasOver current/Over power/Over voltage/Overheating/Short circuit/Surge & inrush/Under voltage
Kopējais barošanas750 W
Kabeļu veidsFully-Modular
CPU P4 savienotājs (4 kontaktu)1
Centrālā procesora barošanas kabeļa garums700 mm
Centrālā procesora barošanas savienotājs (4+4 kontakti)Yes
EPS barošanas savienotājs (8 kontaktu)Yes
Motherboard barošanas kabeļa garums600 mm
Motherboard barošanas savienotājs20+4 pin ATX
Numurs of SATA barošanas savienotāji6
PCI Express jauda kabelis garums600 mm
PCI Express jauda connectors (16-pin)1
PCI Express jauda connectors (6+2 pin)3
Peripheral (Molex) barošanas kabeļa garums850 mm
Peripheral (Molex) barošanas savienotāji (4-pin)1
SATA jauda kabelis garums1000/550/700/850 mm
80 plus sertifikācija80 PLUS Platinum
ATX versija3.1
Gultņu tehnoloģijaRifle
EPS versija2.92
Vidējais laiks between failures (MTBF)100000 h
Trokšņa līmenis15.8 dB
Barošanas barošana vienība (PSU) formas faktorsATX
MērķisPC
Dzesēšanas tipsActive
Ventilatora diametrs140 mm
Numurs Of Fans1 fan(s)
On/off slēdzisYes
Produkts krāsaBlack
Darbības relatīvs mitrums (H-H)0 - 85 %
Darbības temperatūra (T-T)0 - 40 °C
Glabāšana relatīvs mitrums (H-H)0 - 95 %
Glabāšana temperatūra (T-T)-40 - 70 °C
Atbilstības sertifikātiBSMI/CB/CCC/CE/Federal Communications Commission (FCC)/RCM/RoHS/TÜV mark/UKCA/WEEE
Waste elektriskais and elektroniskā Equipment (WEEE) complianceYes
Dziļums160 mm
Augstums86 mm
Platums150 mm
ManuālsYes
Manuāls valodasEnglish/French/German/Polish/Russian/Spanish/Ukrainian
Iepakojums dziļums328 mm
Iepakojums augstums102 mm
Iepakojums tipsBox
Iepakojums svars3210 g
Iepakojums platums248 mm
Sustainability certificatesENERGY STAR/ErP/Triman
Produkti uz piegāde (inner) korpuss6 pc(s)
Piegāde (inner) korpuss bruto svars19260 g
Piegāde (inner) korpuss augstums346 mm
Piegāde (inner) korpuss garums651 mm
Piegāde (inner) korpuss platums282 mm
Komplektā iekļautas kabeļu saitesYes
Skrūves iekļautaYes
Modelis NosaukumsPOWER ZONE 2
Vienības uz palete0
Vienības uz piegāde kastes6
Vienība Calculated skaļums0.01201 cubm
Vienība Calculated svars3.51 kg
